TACS (Time & Alarm Control System)

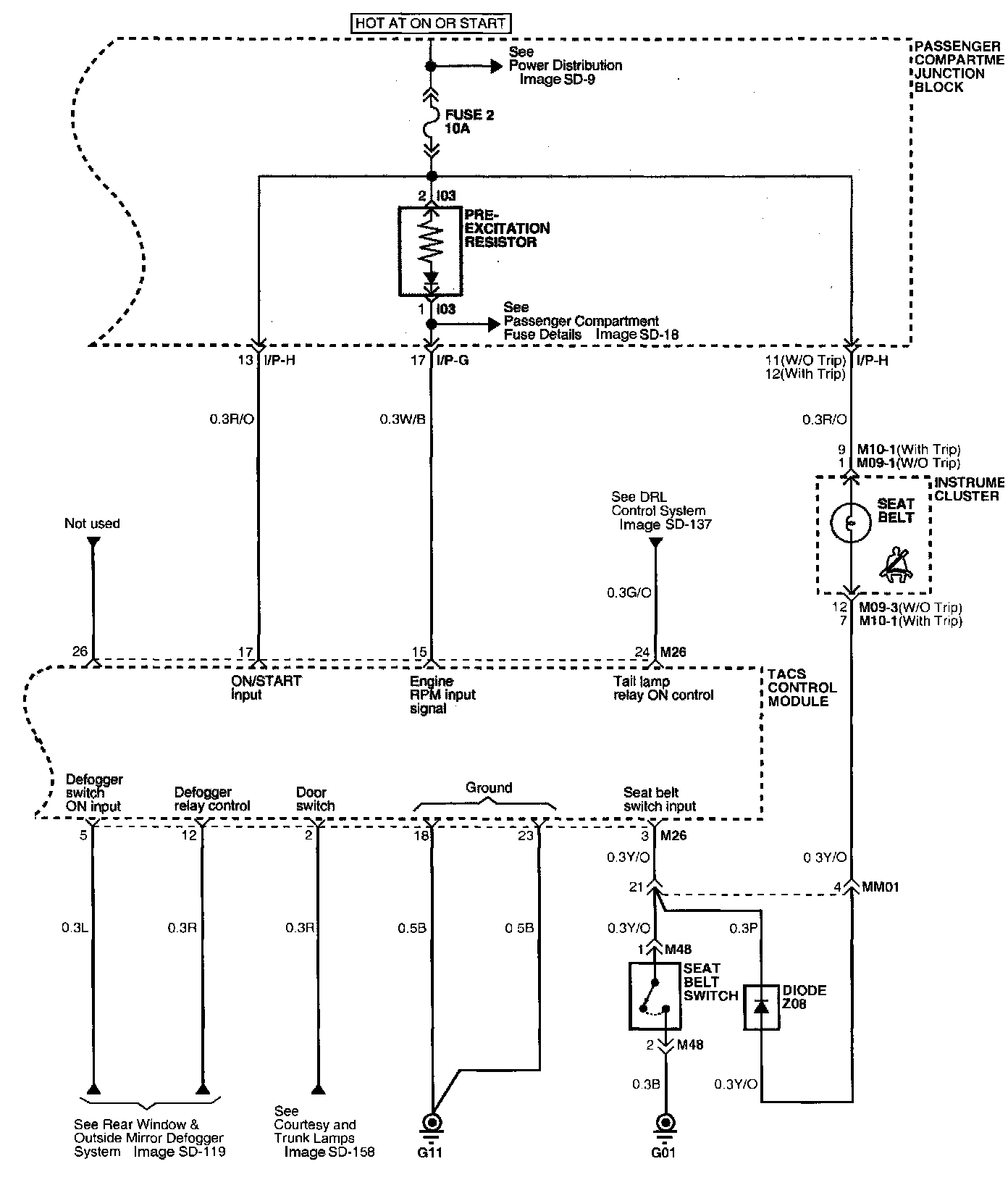

Image SD-98 - TACS (1):

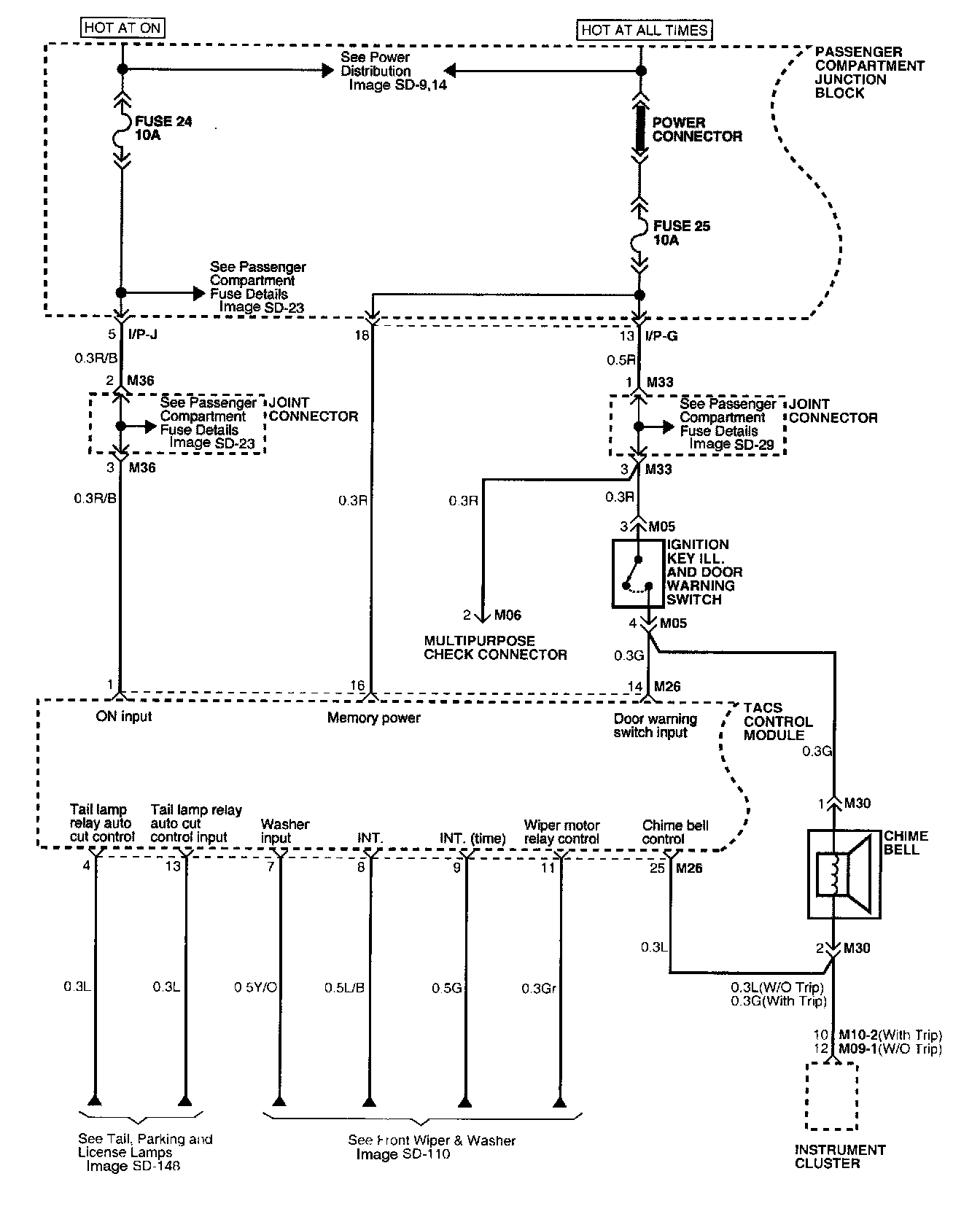

Image SD-99 - TACS (2):

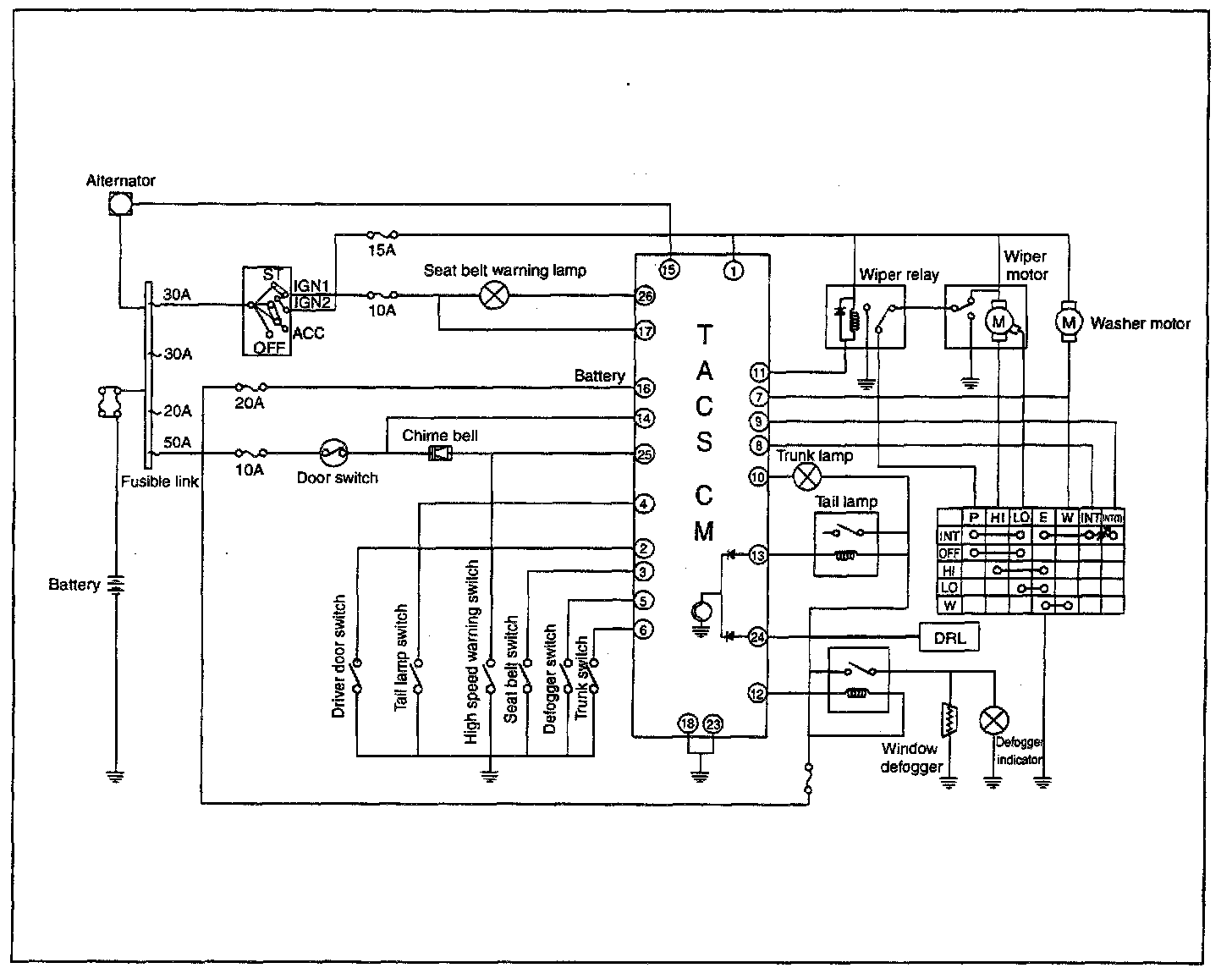

TACS Circuit Diagram:
