Timer/Control Unit, Accessory Control

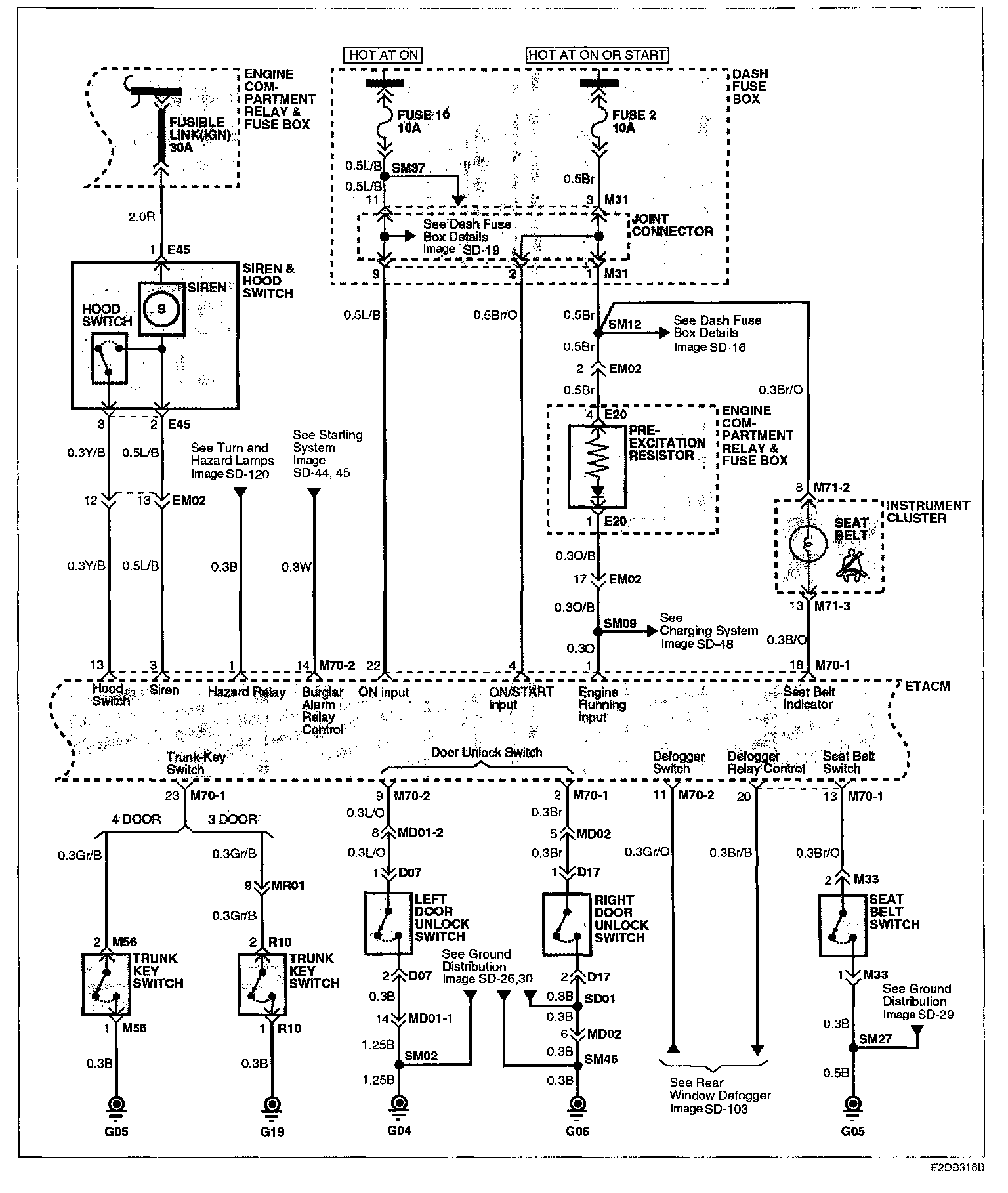

Image SD-76 - ETACS (Electronic Time & Alarm Control System) (1):

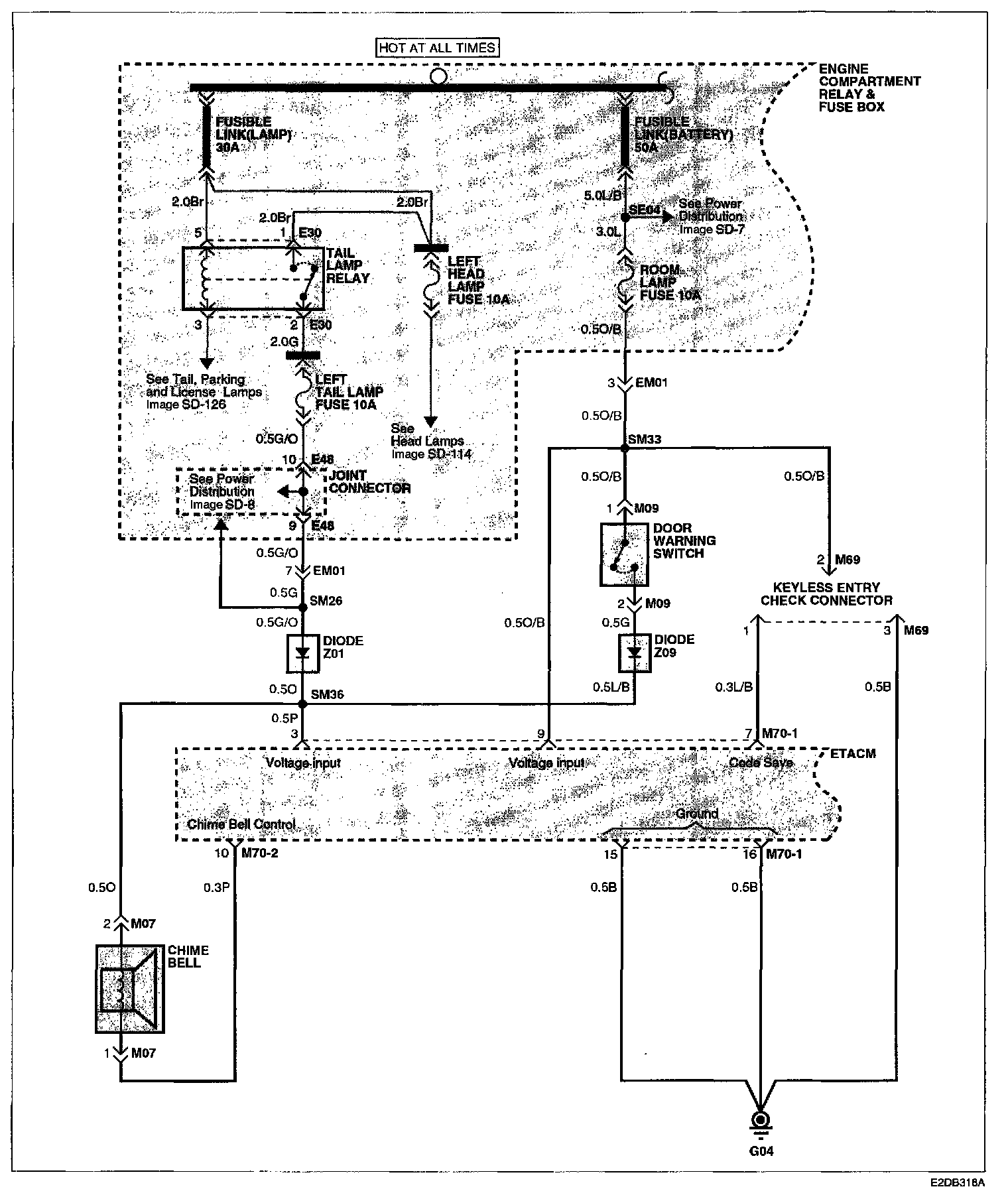

Image SD-77 - ETACS (Electronic Time & Alarm Control System) (2):

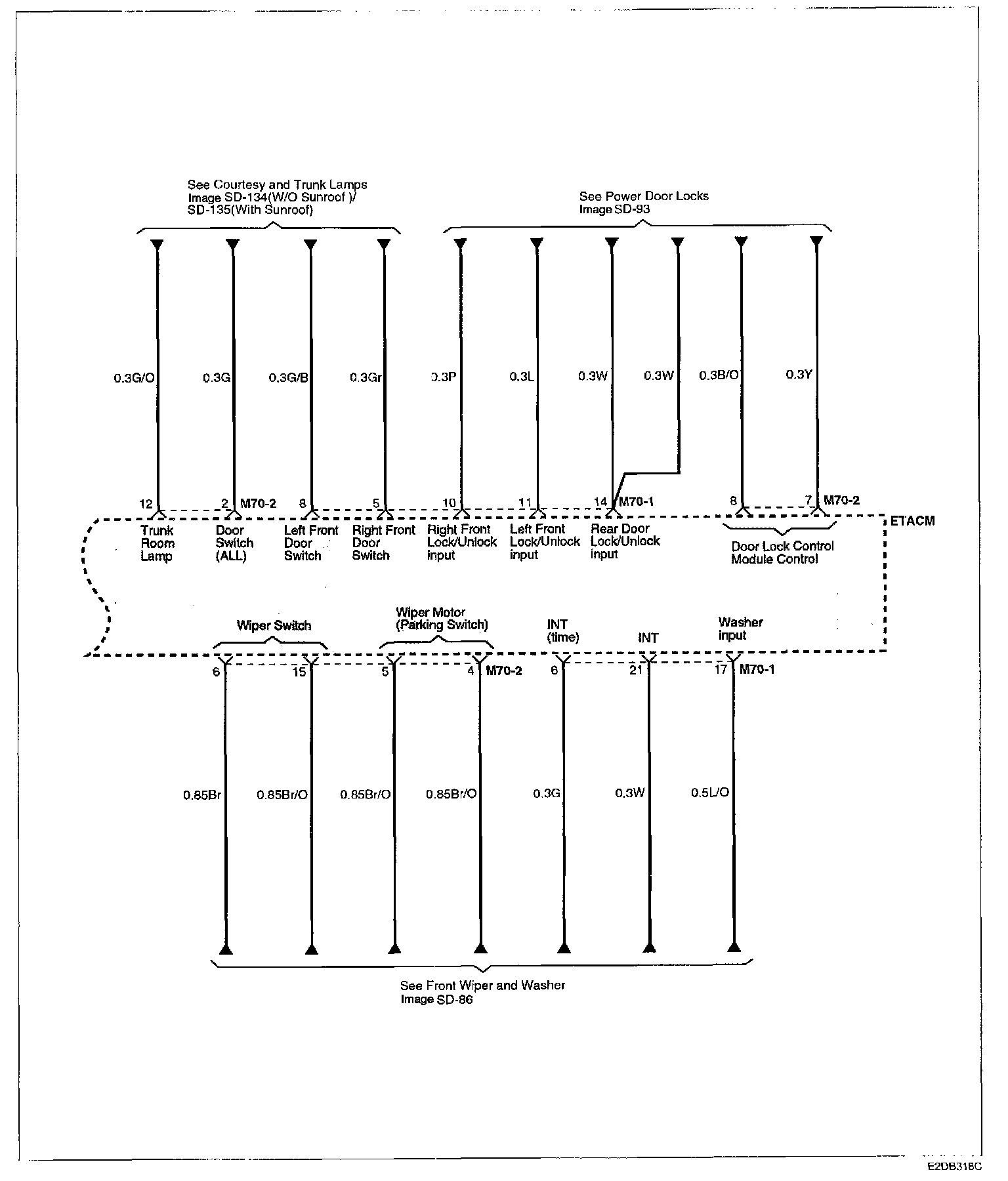

Image SD-78 - ETACS (Electronic Time & Alarm Control System) (3):
