Engine Compartment Relay and Fuse Box

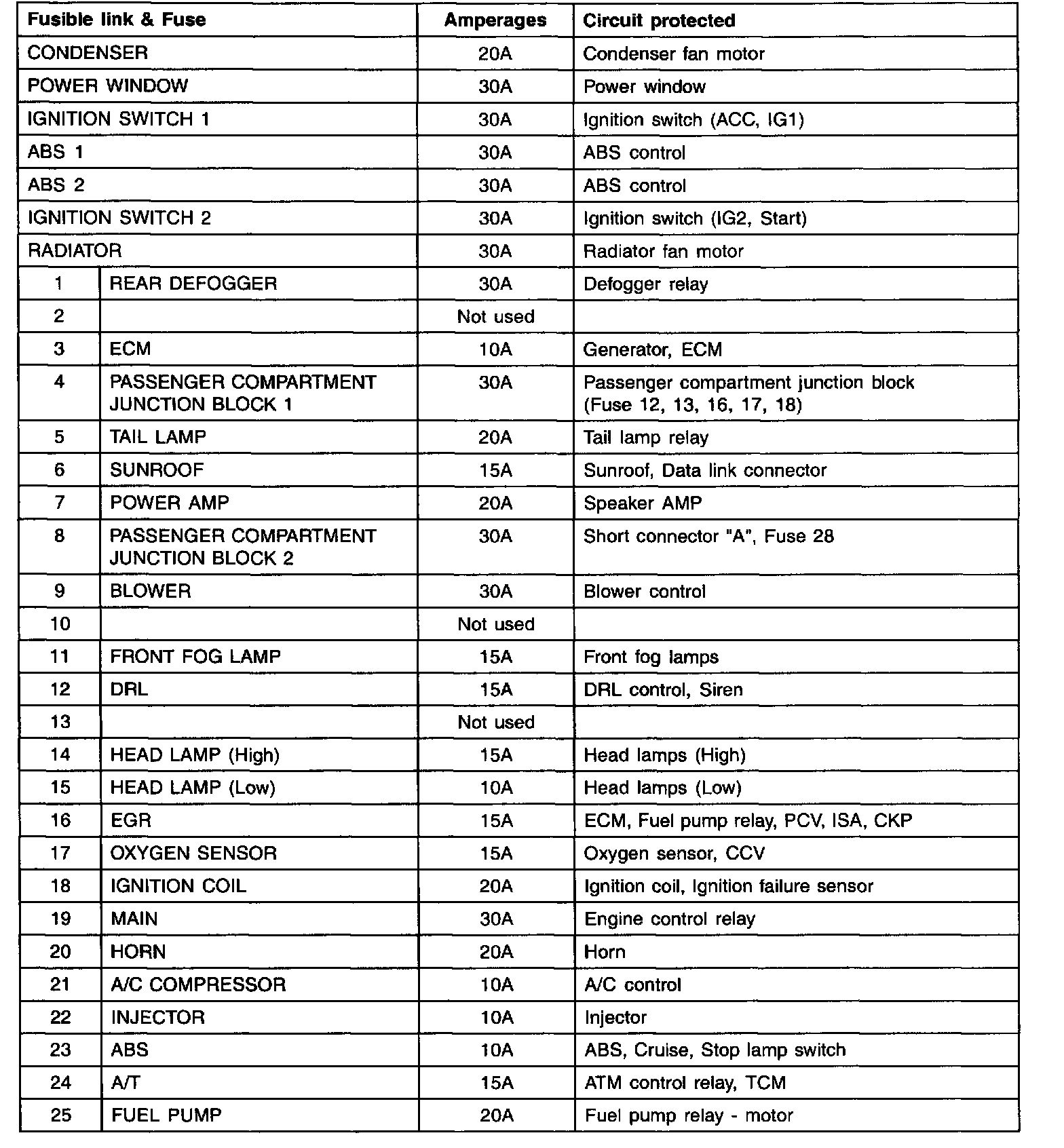

Engine Compartment Junction Block (Front) Layout:



Engine Compartment Junction Block (Front) Circuit:
