Alternator: Service and Repair

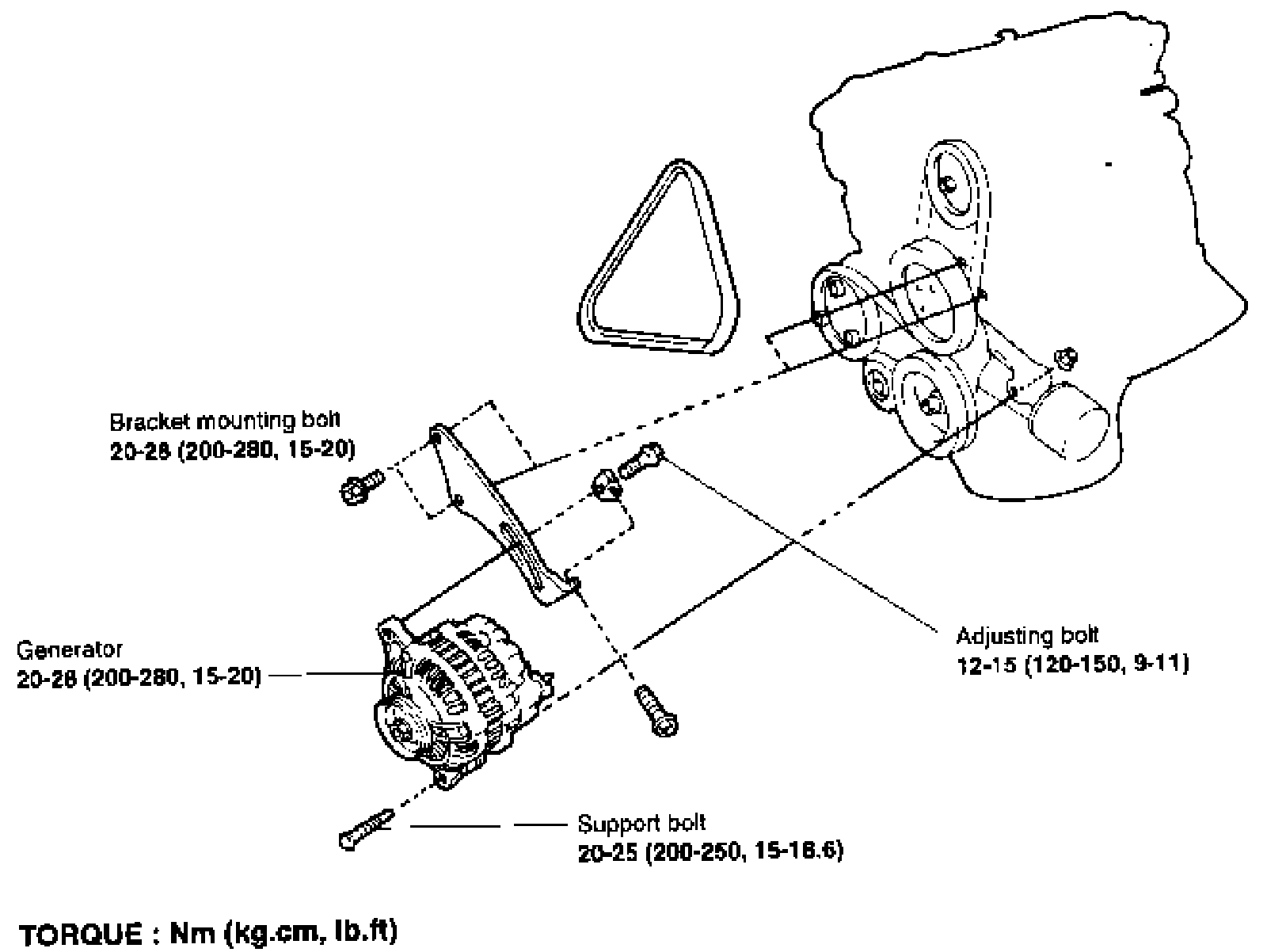

Generator Removal and Replacement

Removal





1. Disconnect the negative battery terminal.





2. Loosen the belt tension.
3. Raise the vehicle.





4. Remove the mud guard - RH

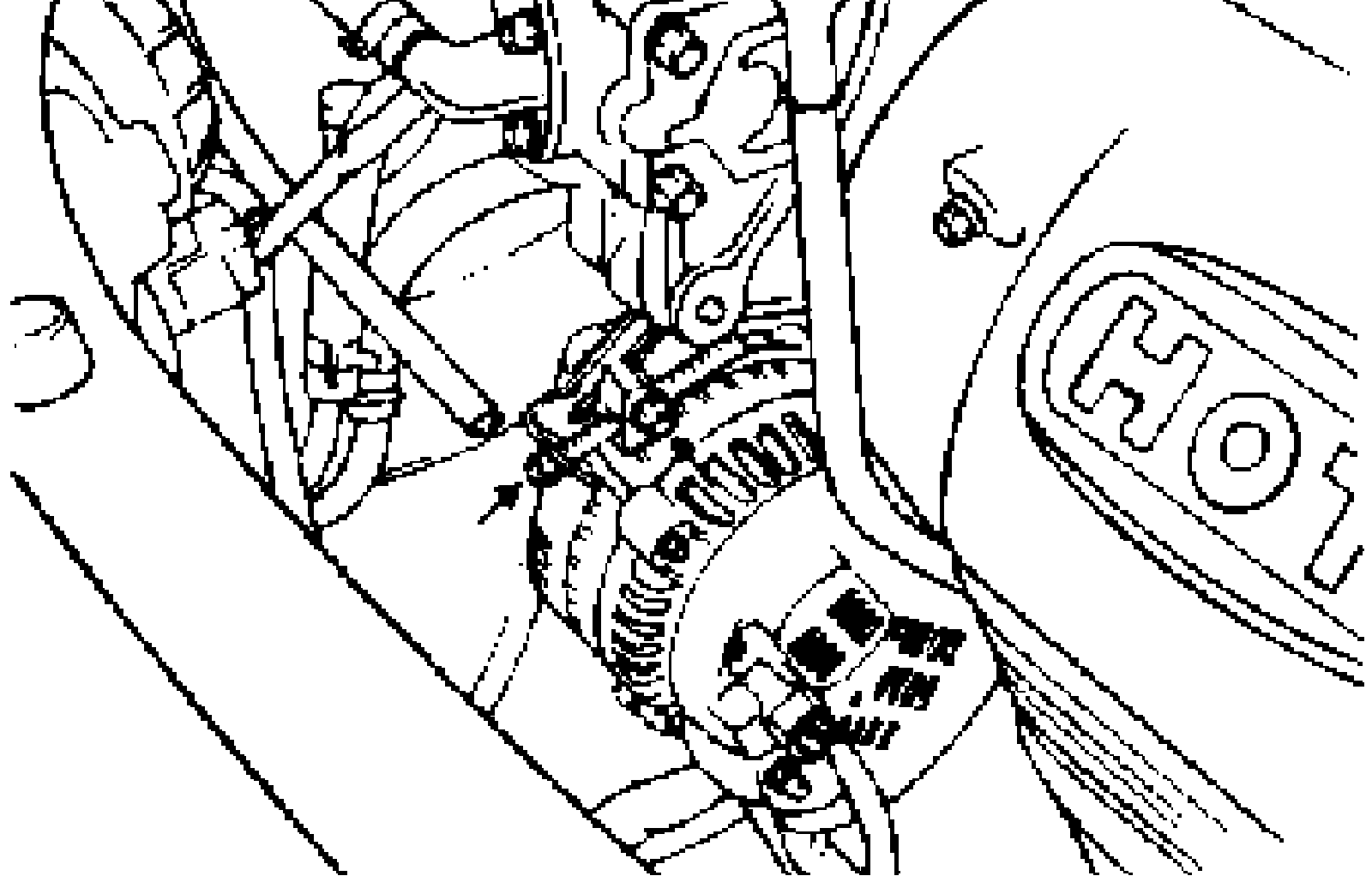

5. Disconnect the generator B+ terminal wire and connector.
6. Remove the belt and generator mounting bolt (2EA).





7. Remove the generator assembly.


Installation
Installation is in the reverse order of removal.
