Ignition Switch-ST [A/T]

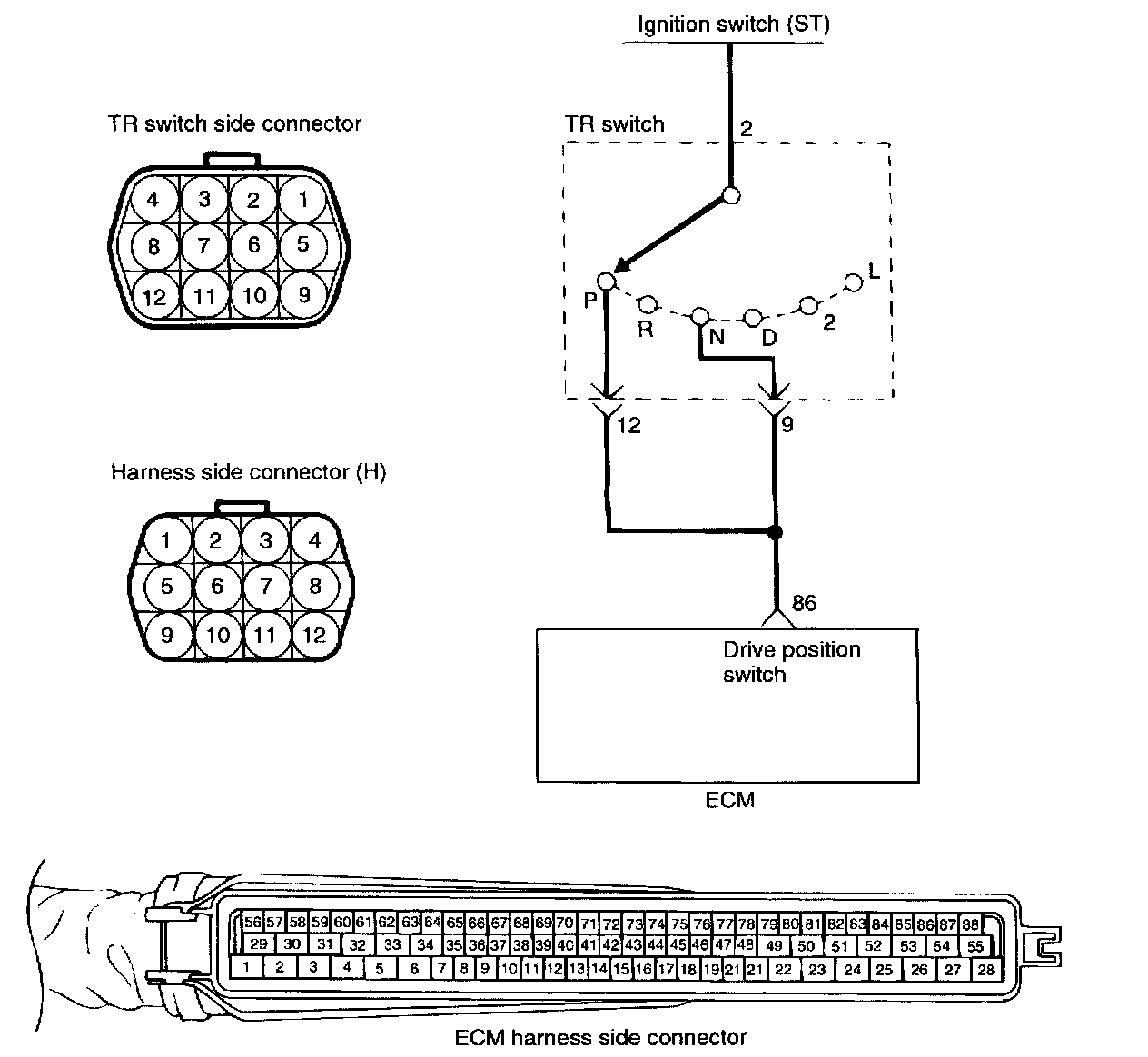

CIRCUIT DIAGRAM







HARNESS INSPECTION PROCEDURES

TROUBLESHOOTING HINTS
If the park/neutral position switch harness check is normal but the park/neutral position switch output is abnormal, check the control cable adjustment.
