Tightening Torque Specifications

TIGHTENING TORQUE SPECIFICATIONS

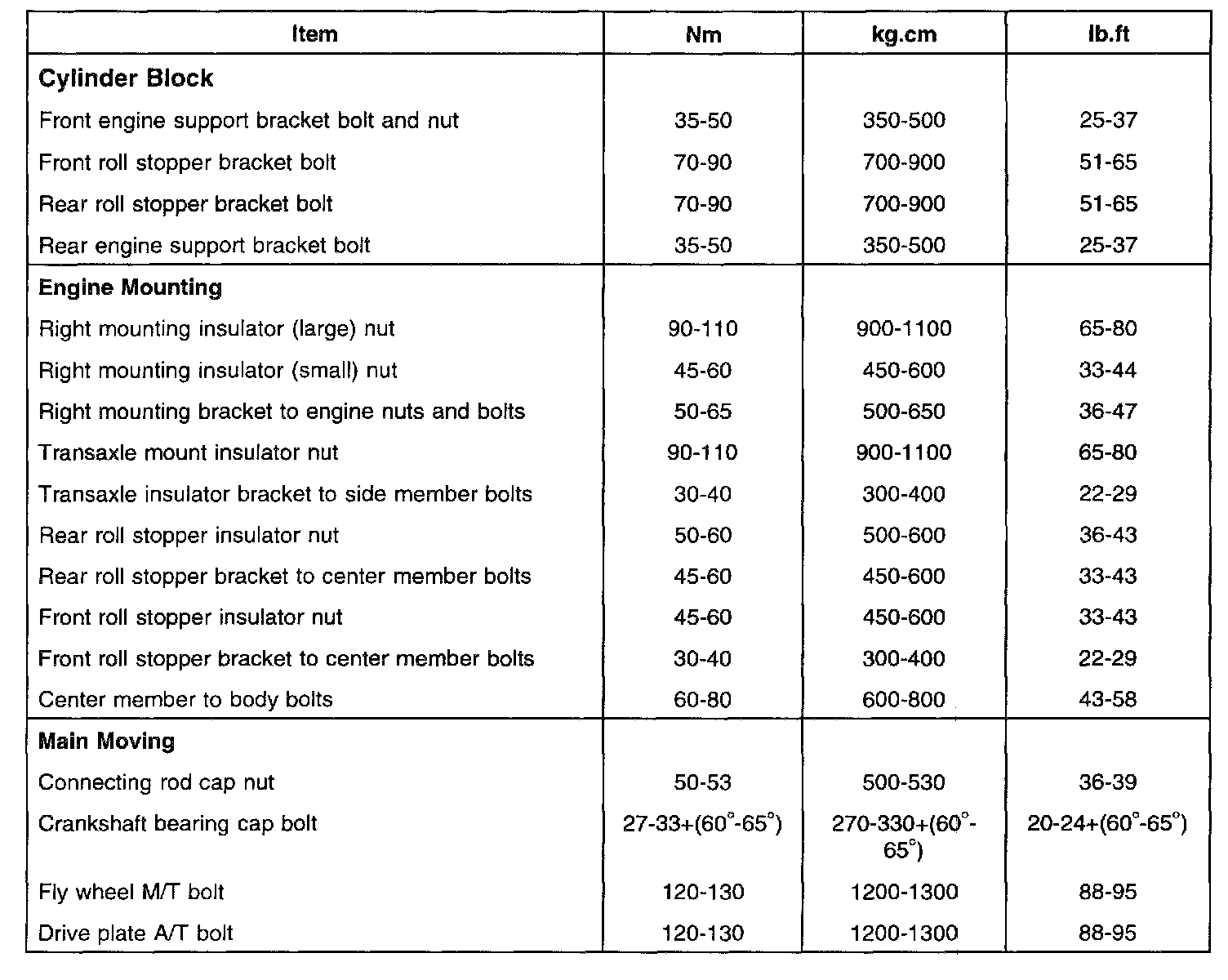

Part 1 Of 3:

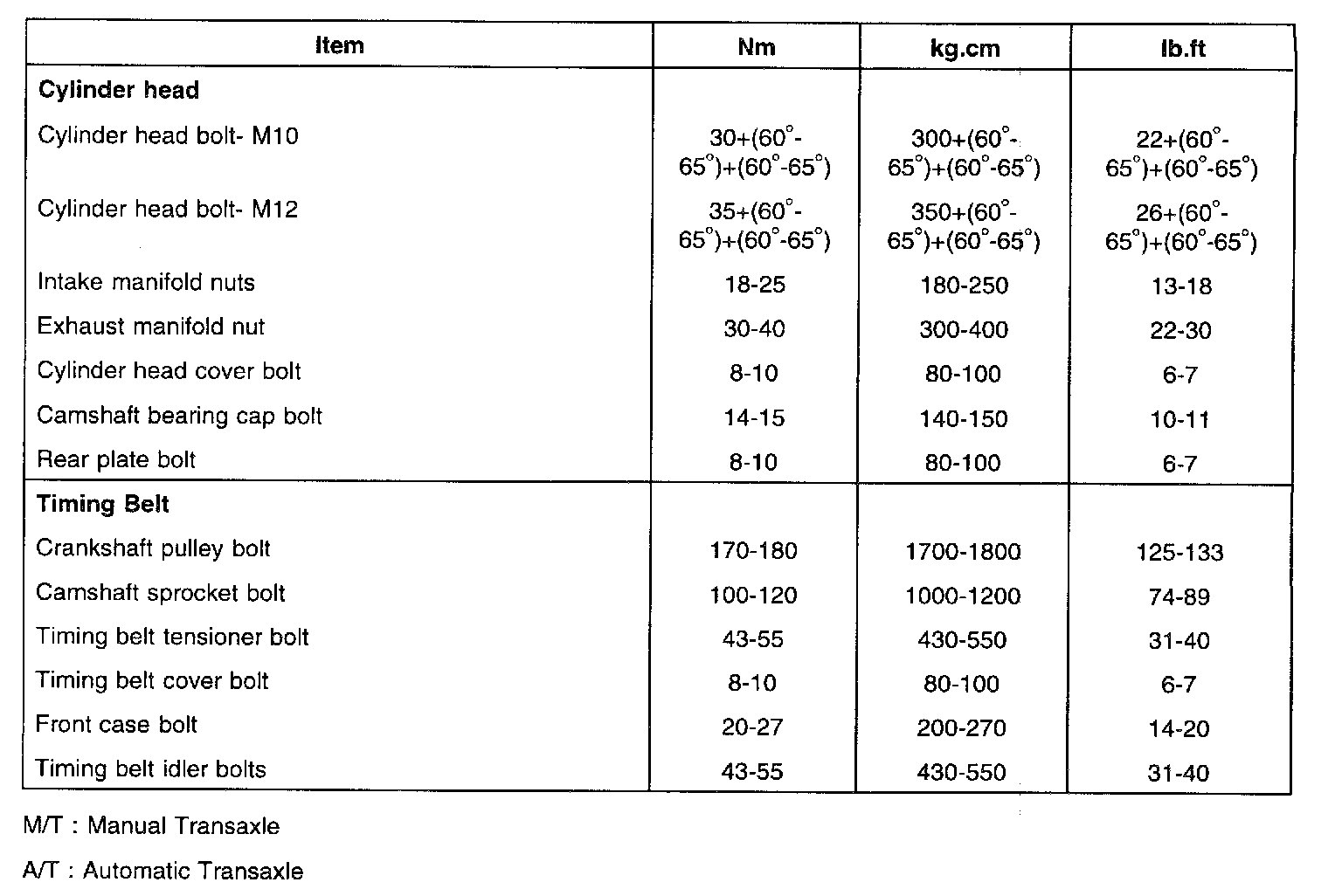

Part 2 Of 3:

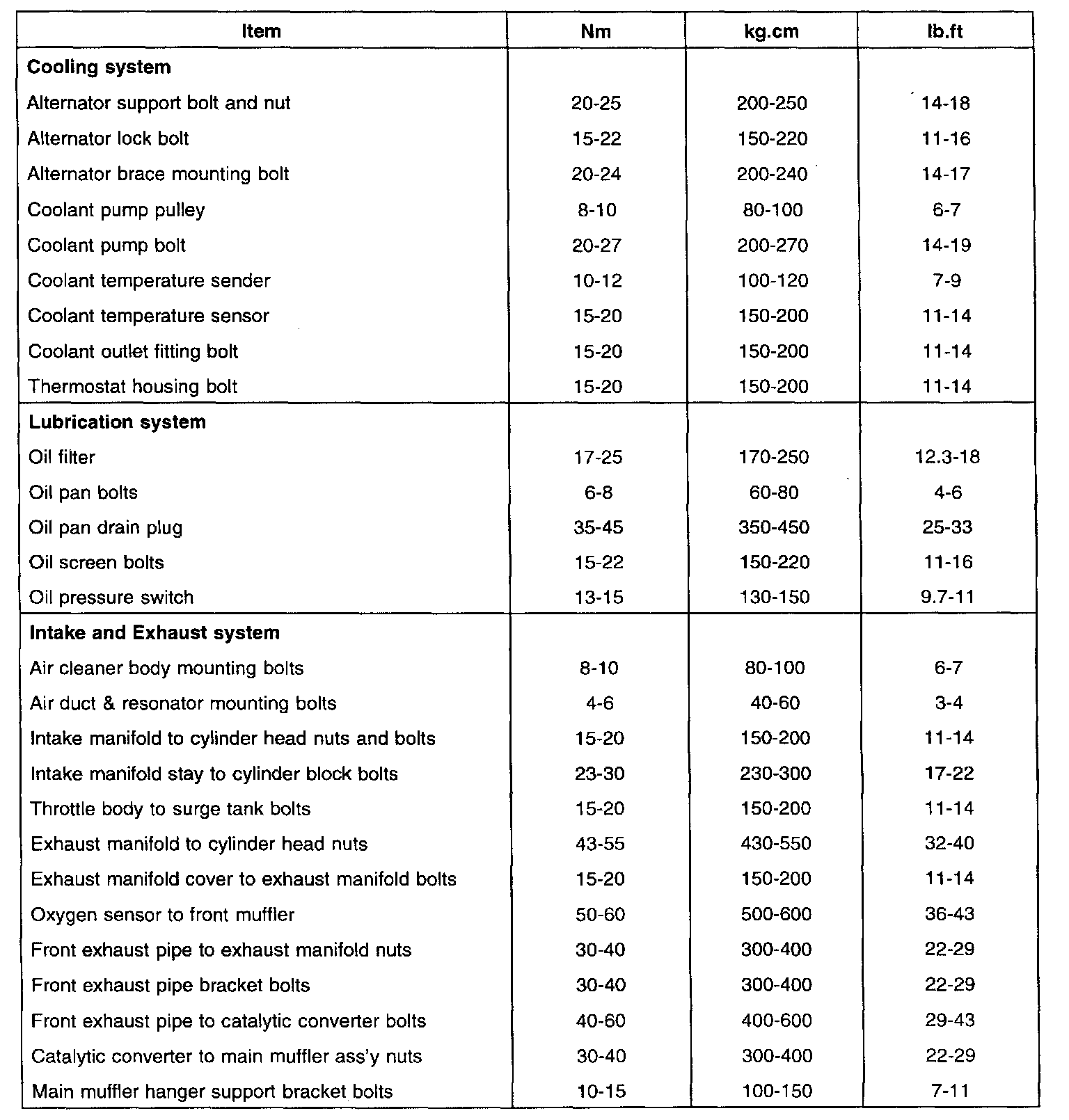

Part 3 Of 3:

Cylinder Head Bolt Tightening Sequence

Camshaft Bearing Cap Bolt Tightening sequence
