Harness Layouts

Harness Layout:

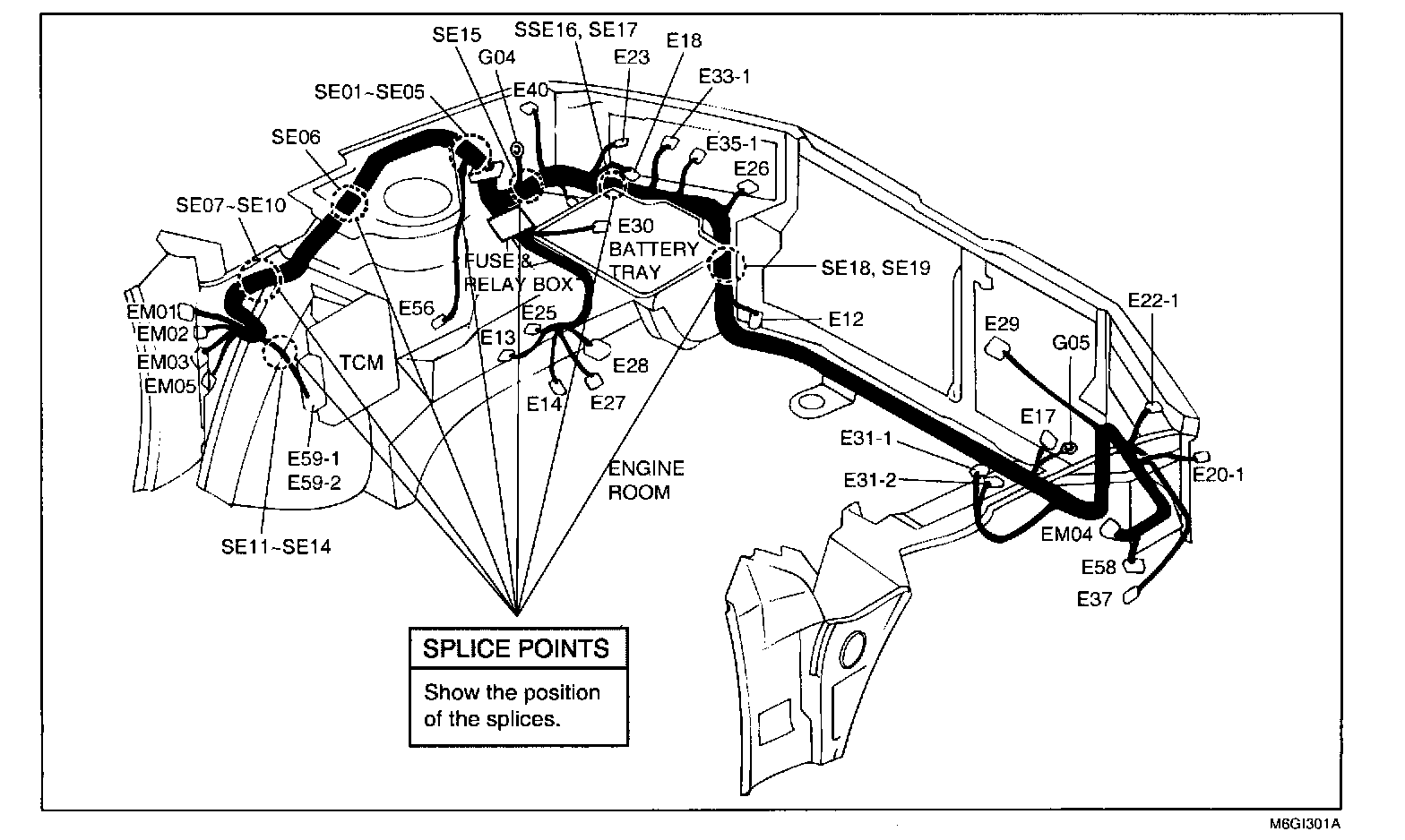

Harness layouts show the routing of the major wiring harnesses, the in-line connectors and the splices between the major harnesses. These layouts will make electrical troubleshooting easier. Refer to Locations / Harness / Harness Layouts for system specific data.
