Control Assembly: Testing and Inspection

Control Panel Assembly

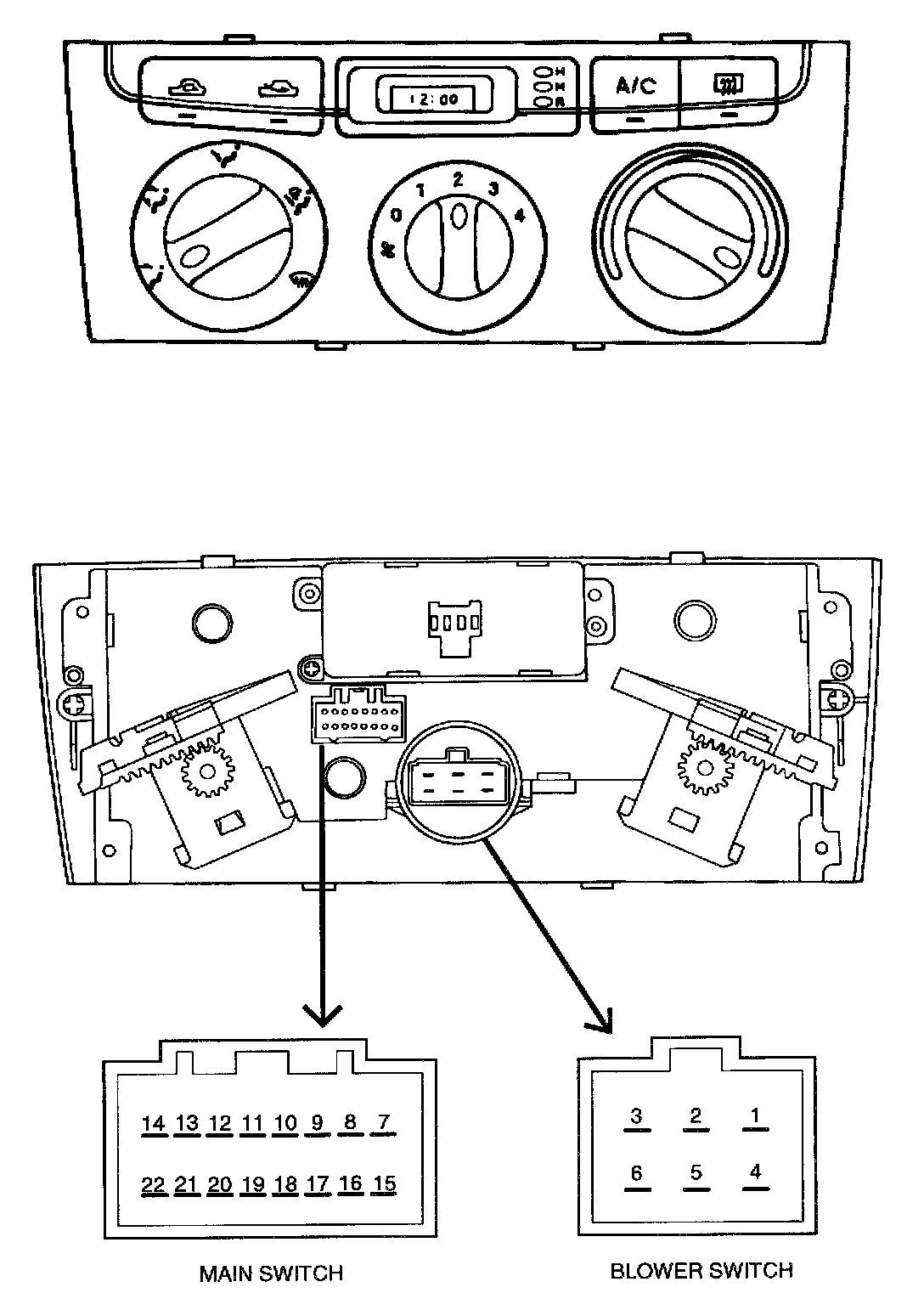

ROTARY TYPE

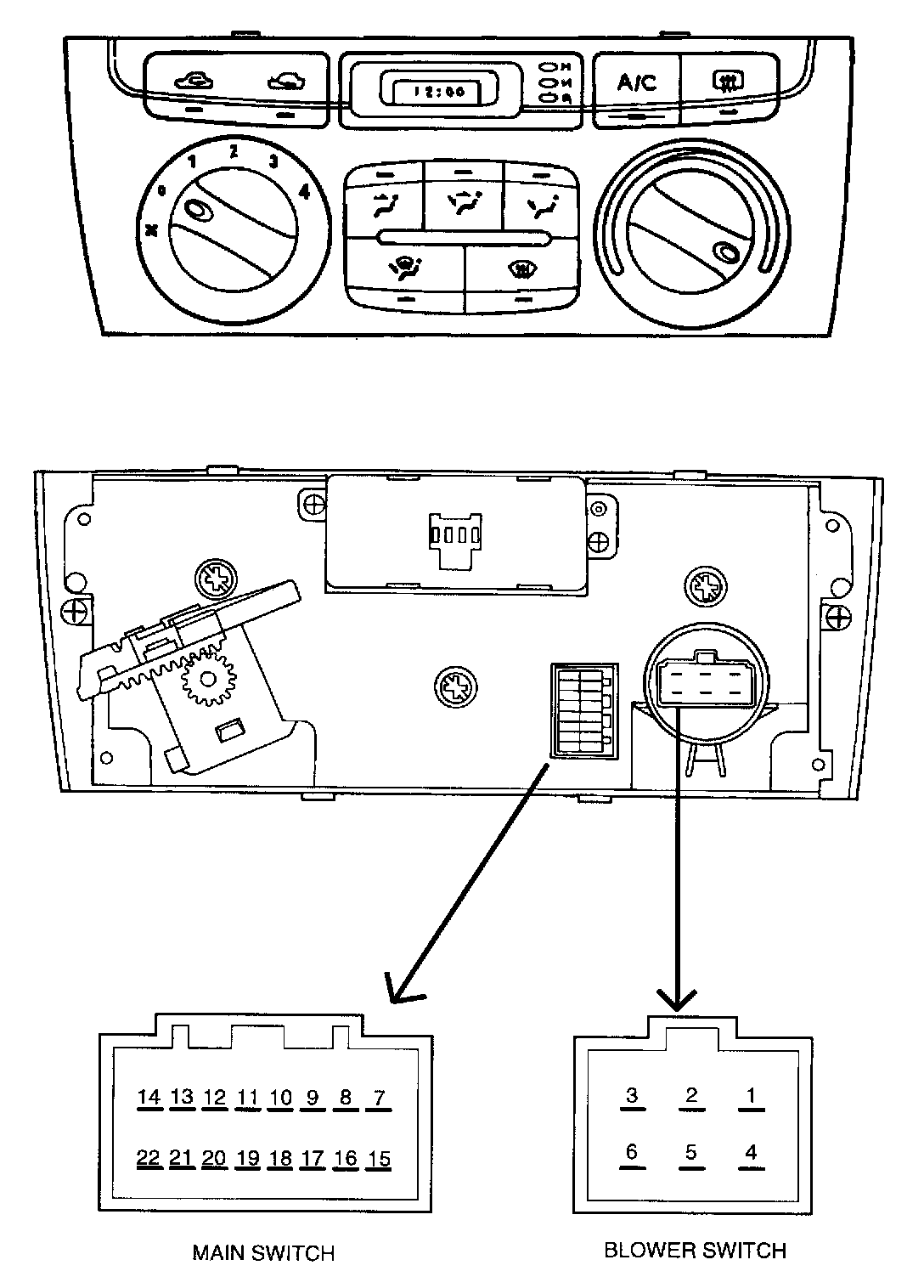

ROTARY AND PUSH BUTTON TYPE

Air Conditioning Switch

1. Check for continuity between terminals No.21 and No.22.

Mode Control Switch

If continuity is not as specified, replace the control panel.
