Shift Interlock Control Module: Testing and Inspection

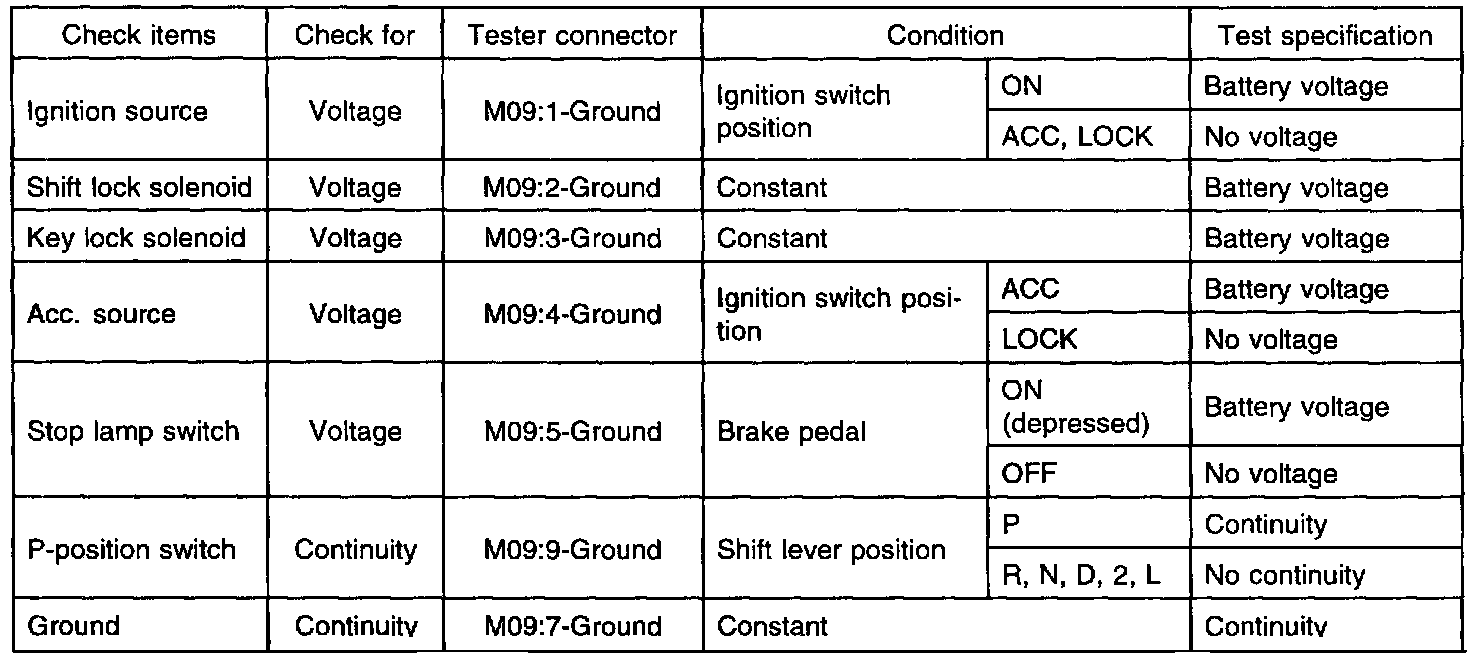

CONTROL MODULE INPUT CIRCUIT
Disconnect the 9-pin connector from the control module and inspect the connectors on the wire harness side as shown.
