Electrical Diagrams

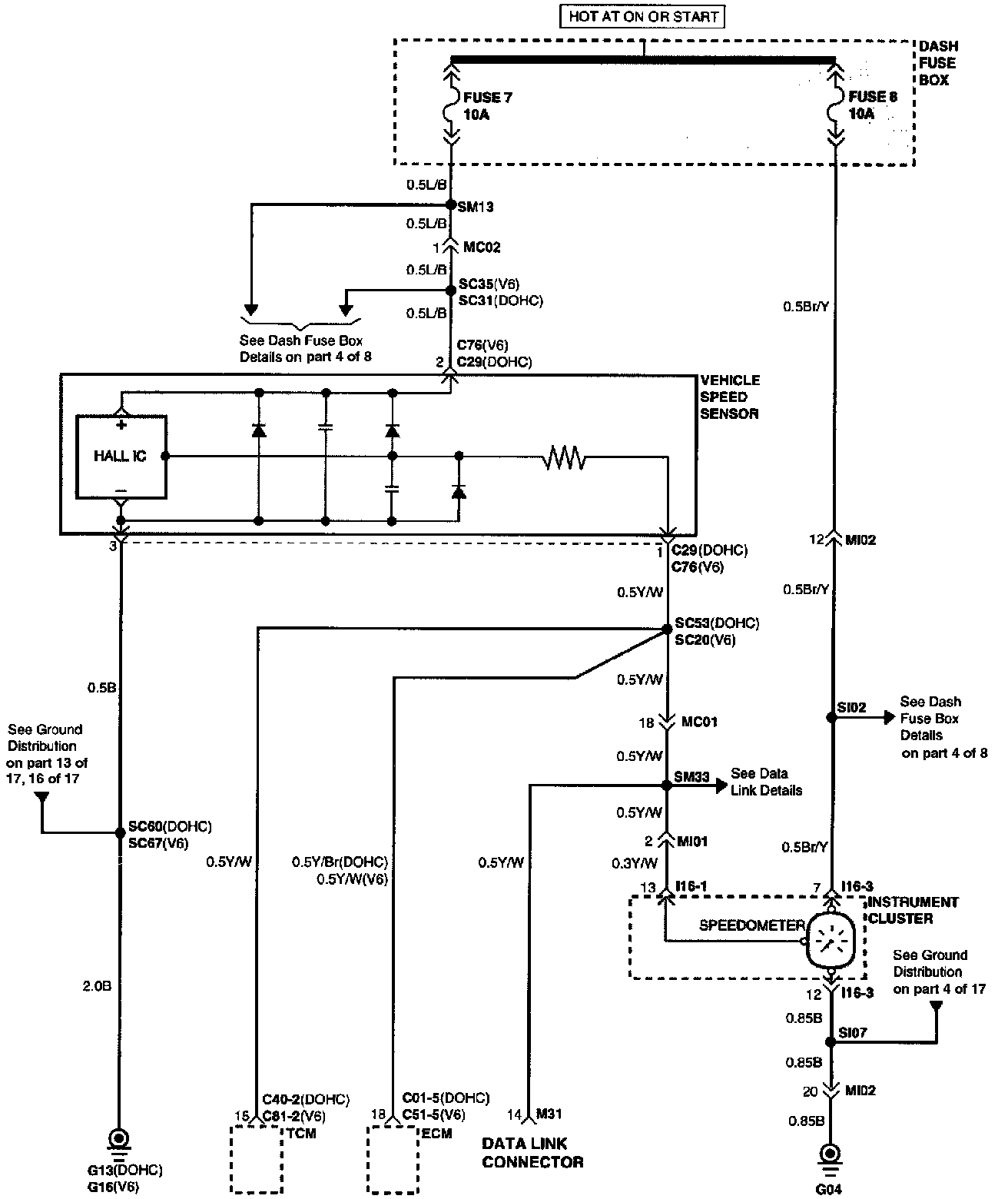

Vehicle Speed Sensor:





Electrical Diagram

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Vehicle Speed Sensor.
Locations
