Hyundai
>>
1998
>>
Sonata GL V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
>>
Ignition Control Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

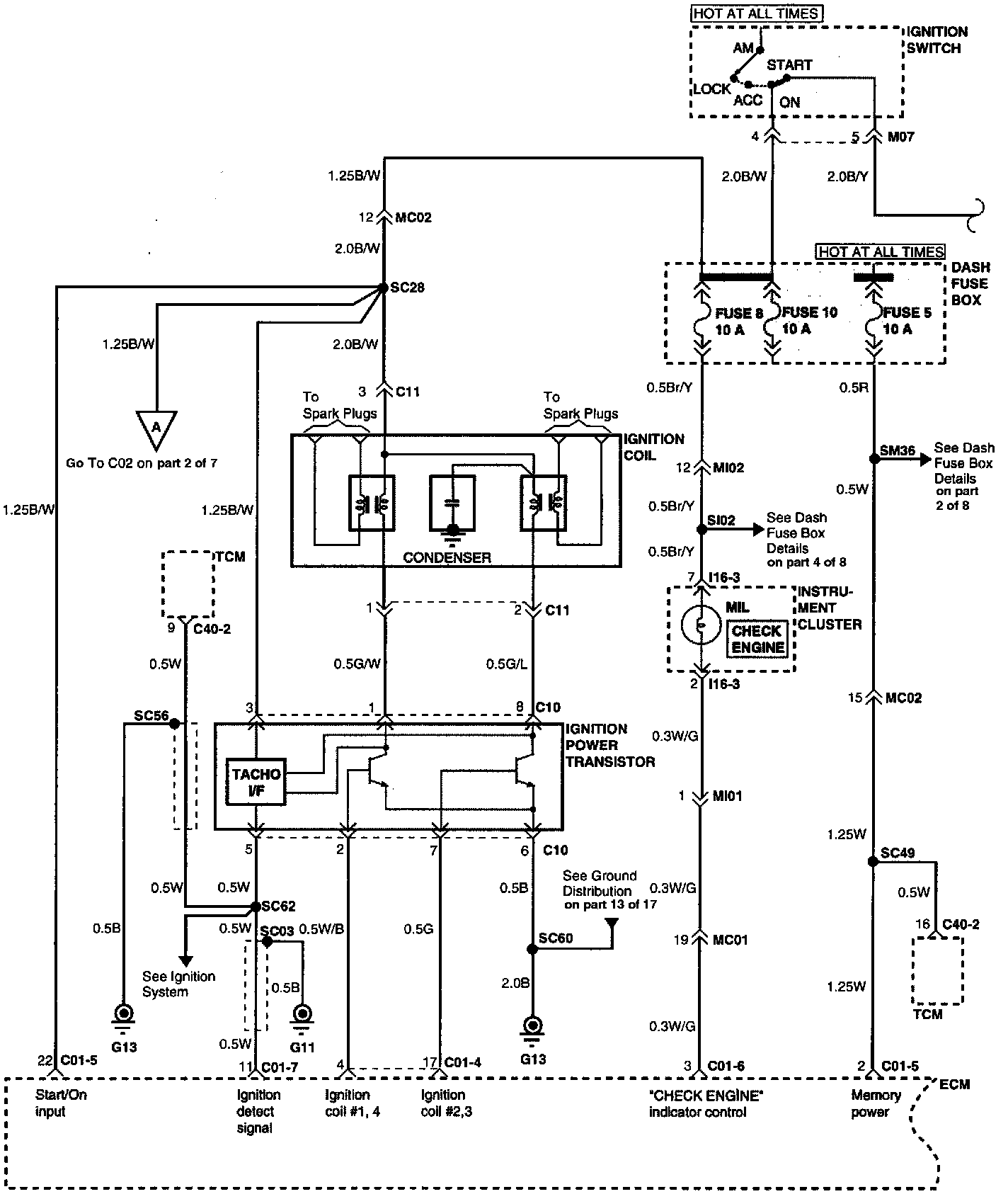

Ignition Control Module
Engine Control System (Part 1 Of 7):
