Signal Tests

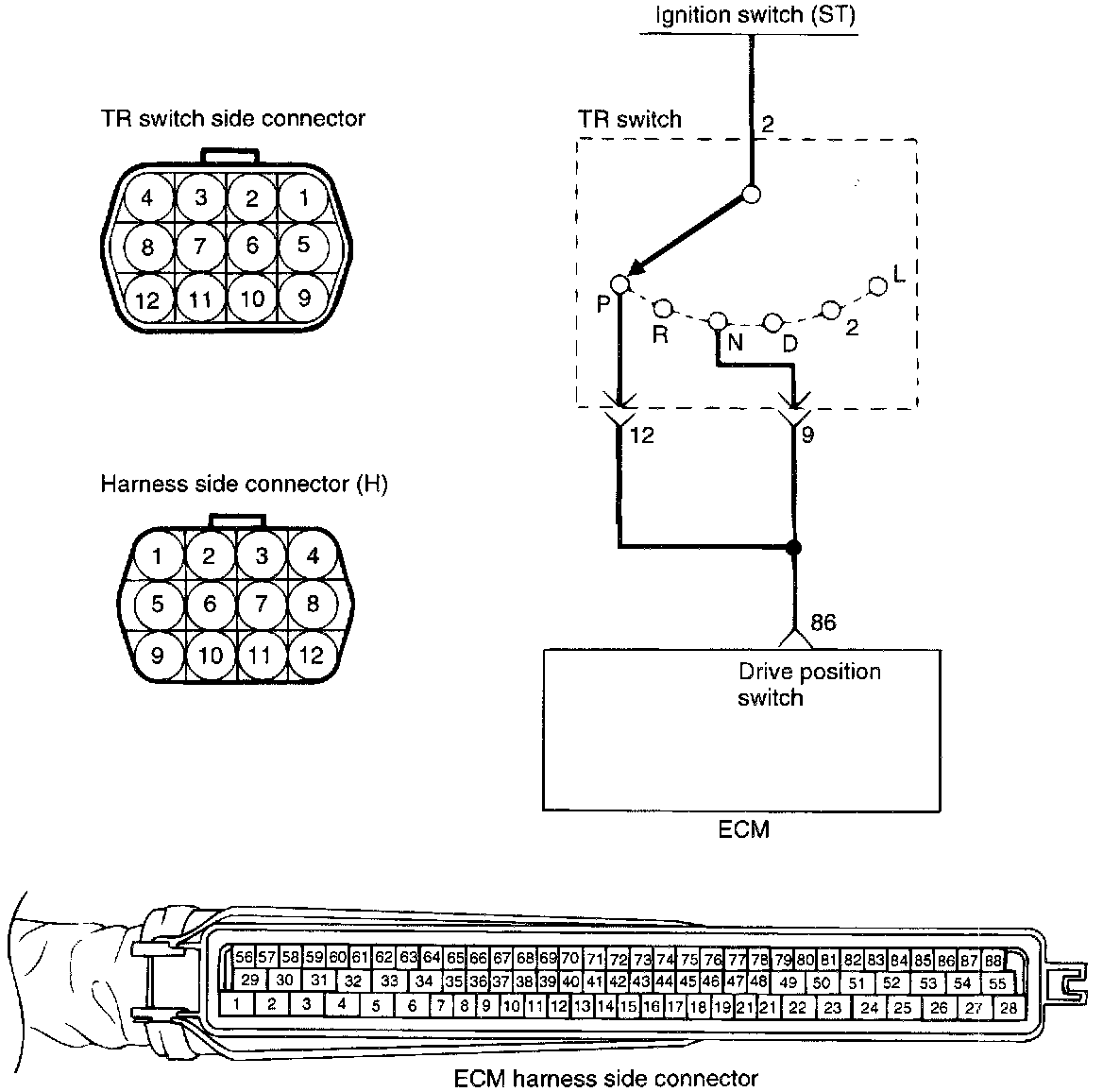

CIRCUIT DIAGRAM








HARNESS INSPECTION
TROUBLESHOOTING HINT: If the park/neutral position switch harness check is normal but the park/neutral position switch output is abnormal, check the control cable adjustment.
