Component Tests

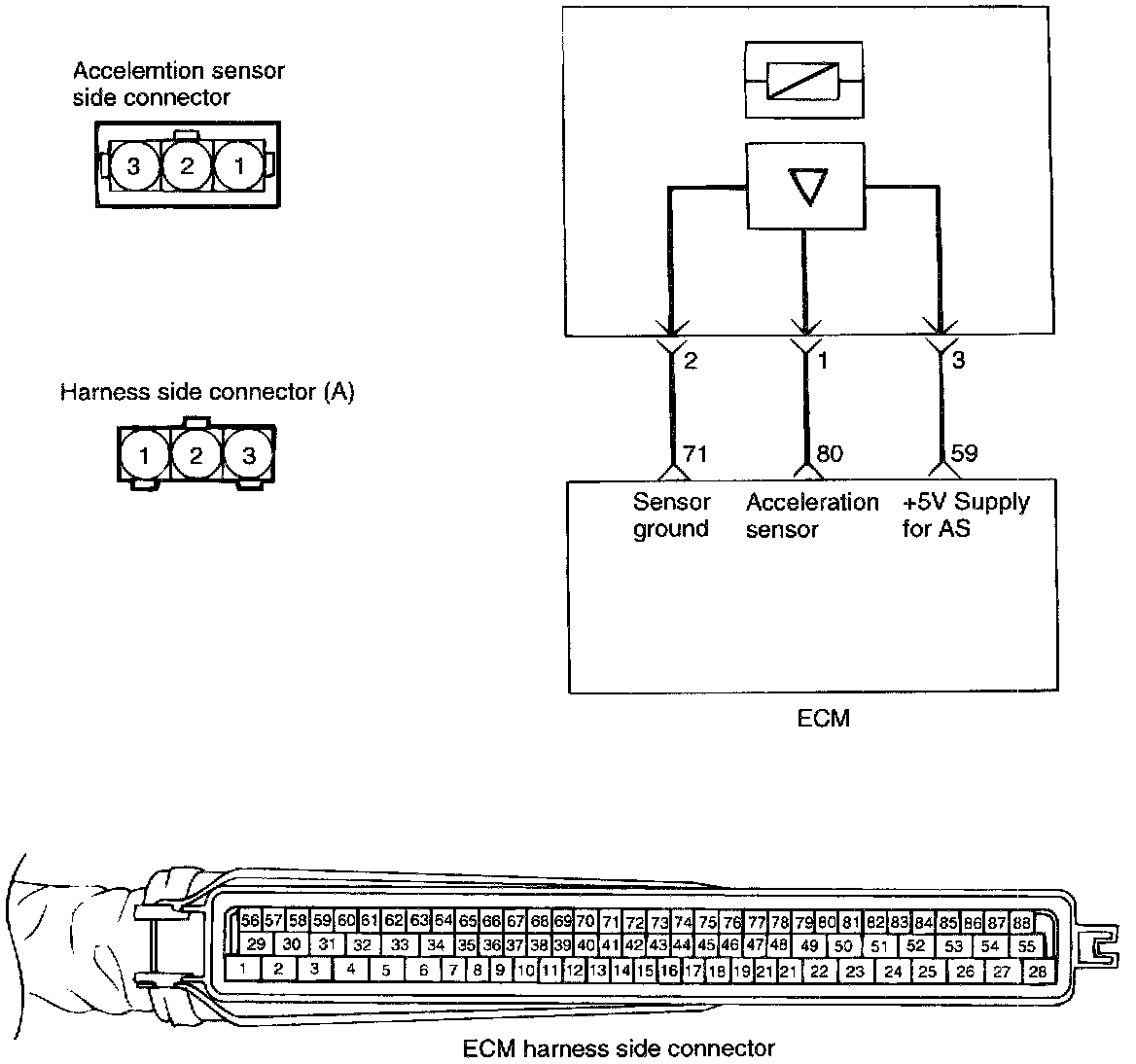

CIRCUIT DIAGRAM








HARNESS INSPECTION PROCEDURES

DTC P1605, P1606 - Acceleration (Rough Road) Sensor:





TROUBLESHOOTING PROCEDURES
HINT: When abnormal output voltage occurs at stop position of vehicle or acceleration sensor is operated beyond normal operating zone.





USING VOLTMETER
