Electronic Brake Control Module

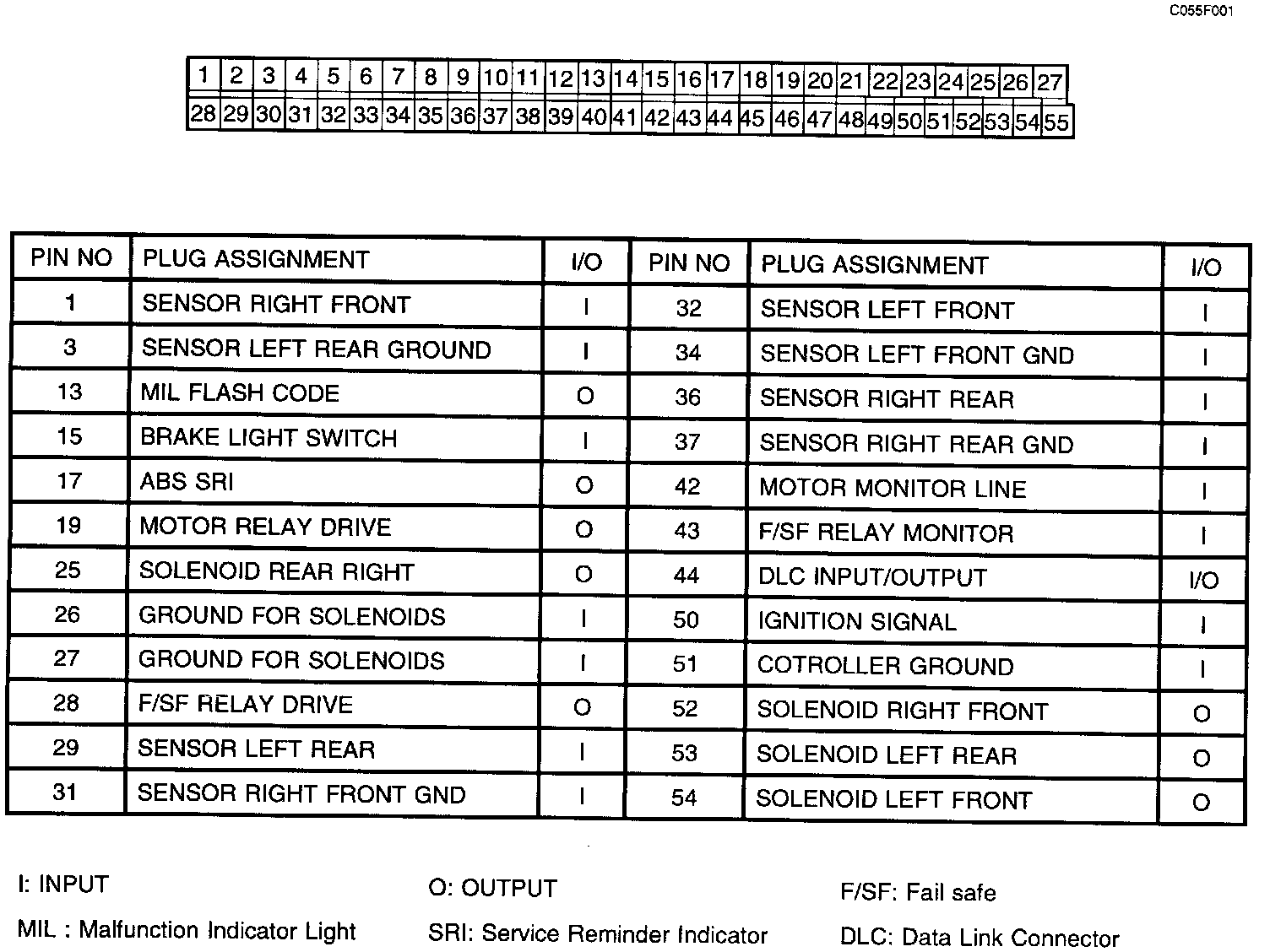

ABS control module connector (M60, harness side).
I: Input
O: Output
F/SF: Fail Safe
MIL: Malfunction Indicator Light
SRI: Service Reminder Indicator
DLC: Data Link Connector
