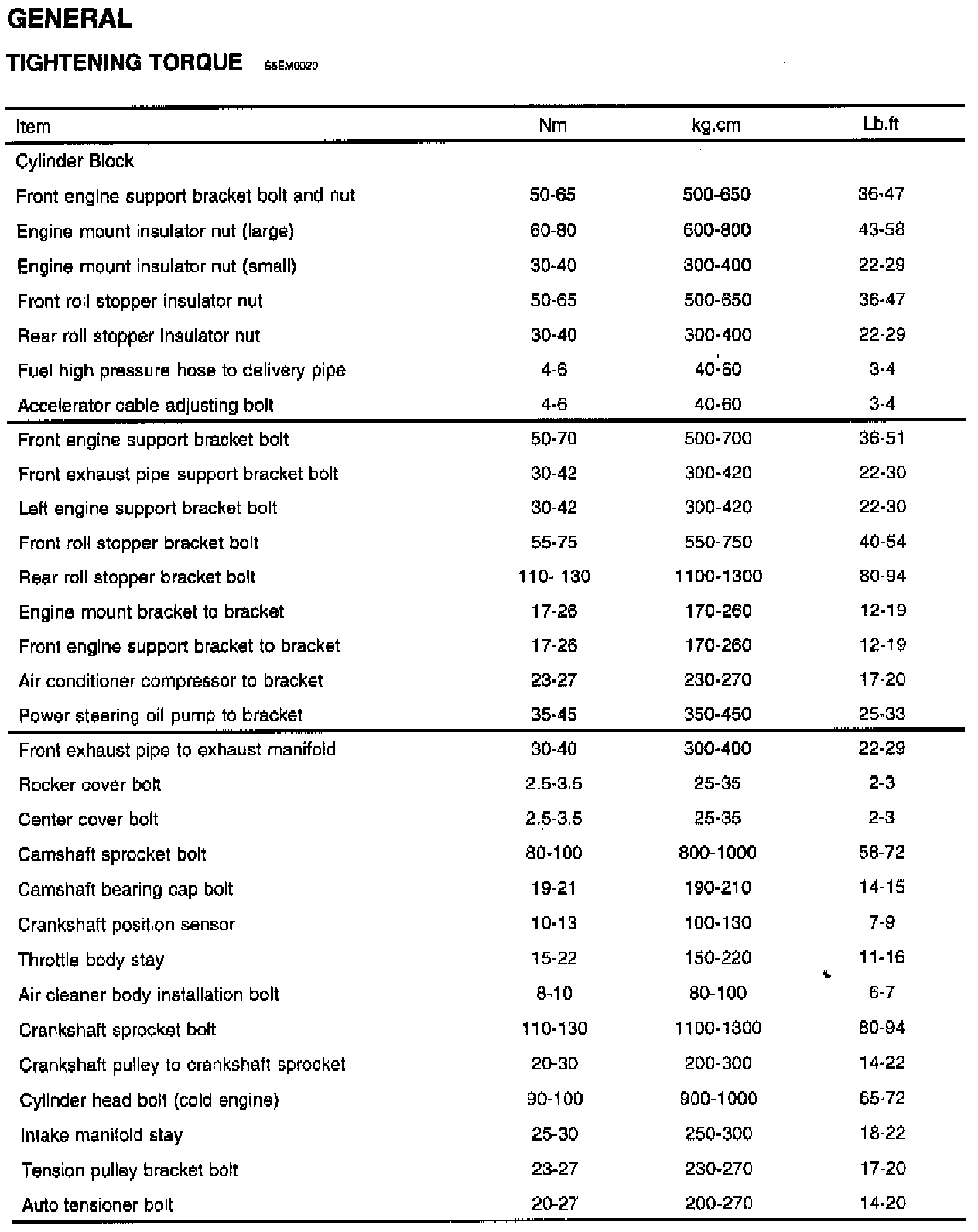

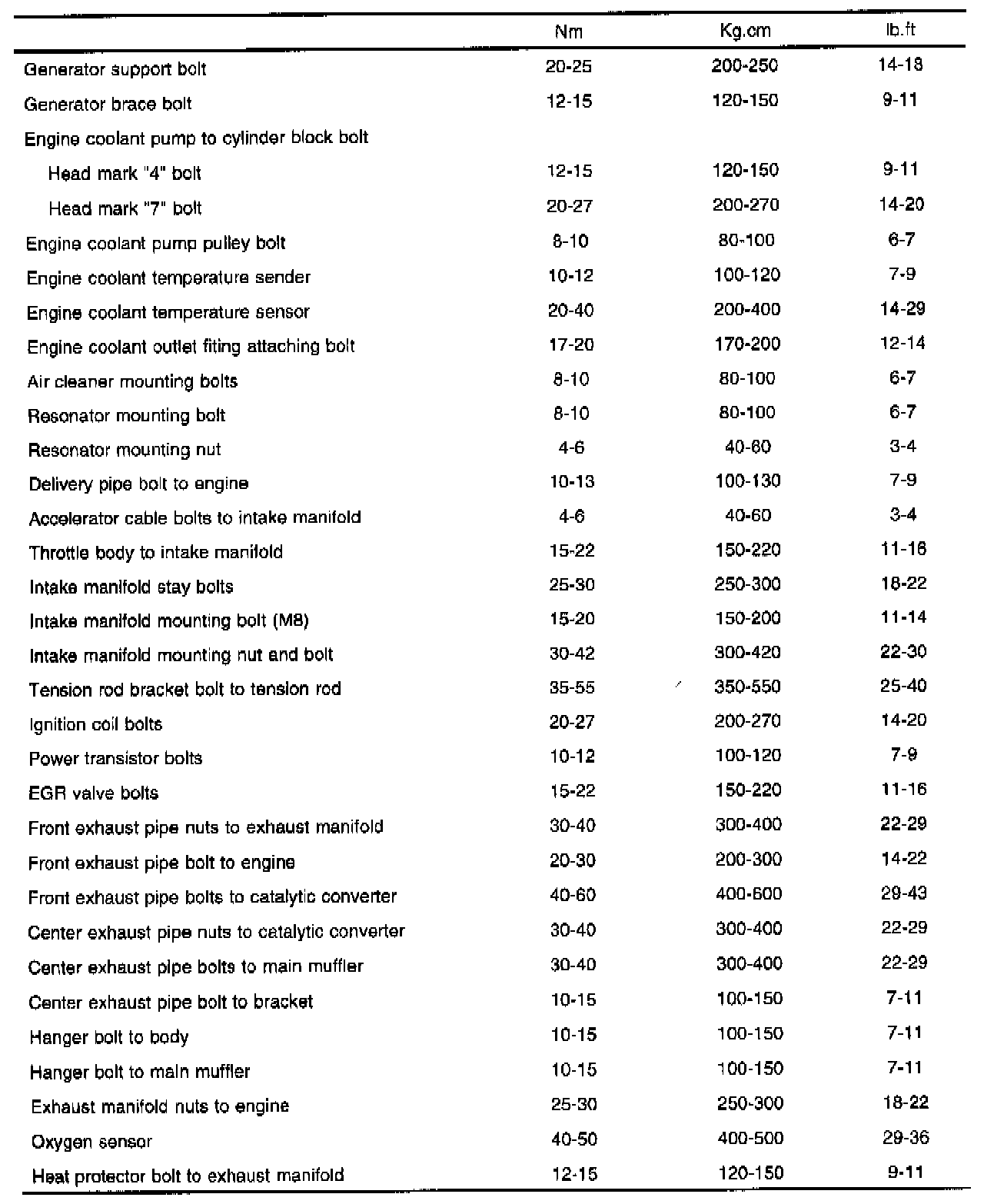

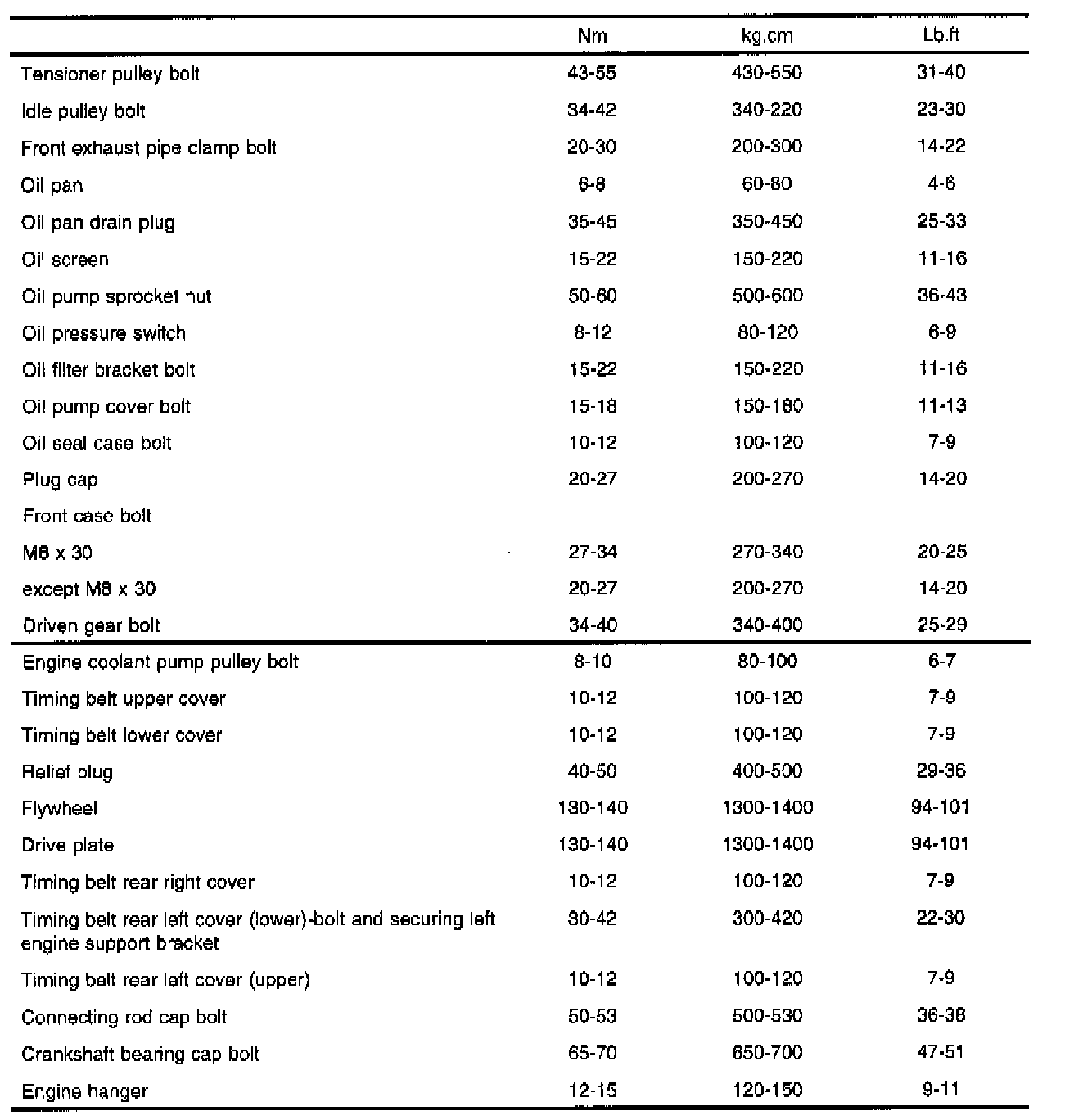

General Torque Specifications


























Bell Housing Bolts





Support Brackets

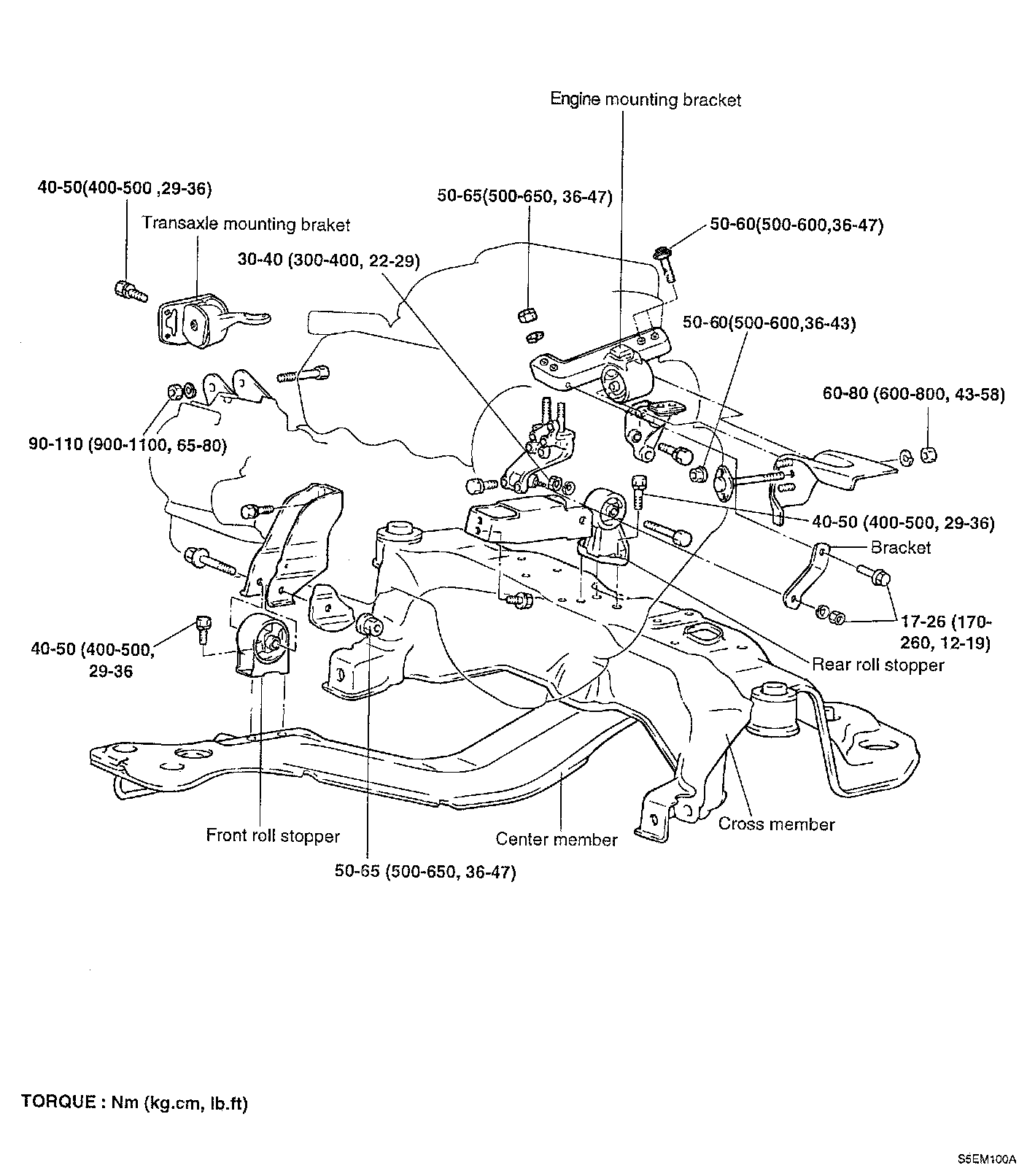

Mounting Brackets

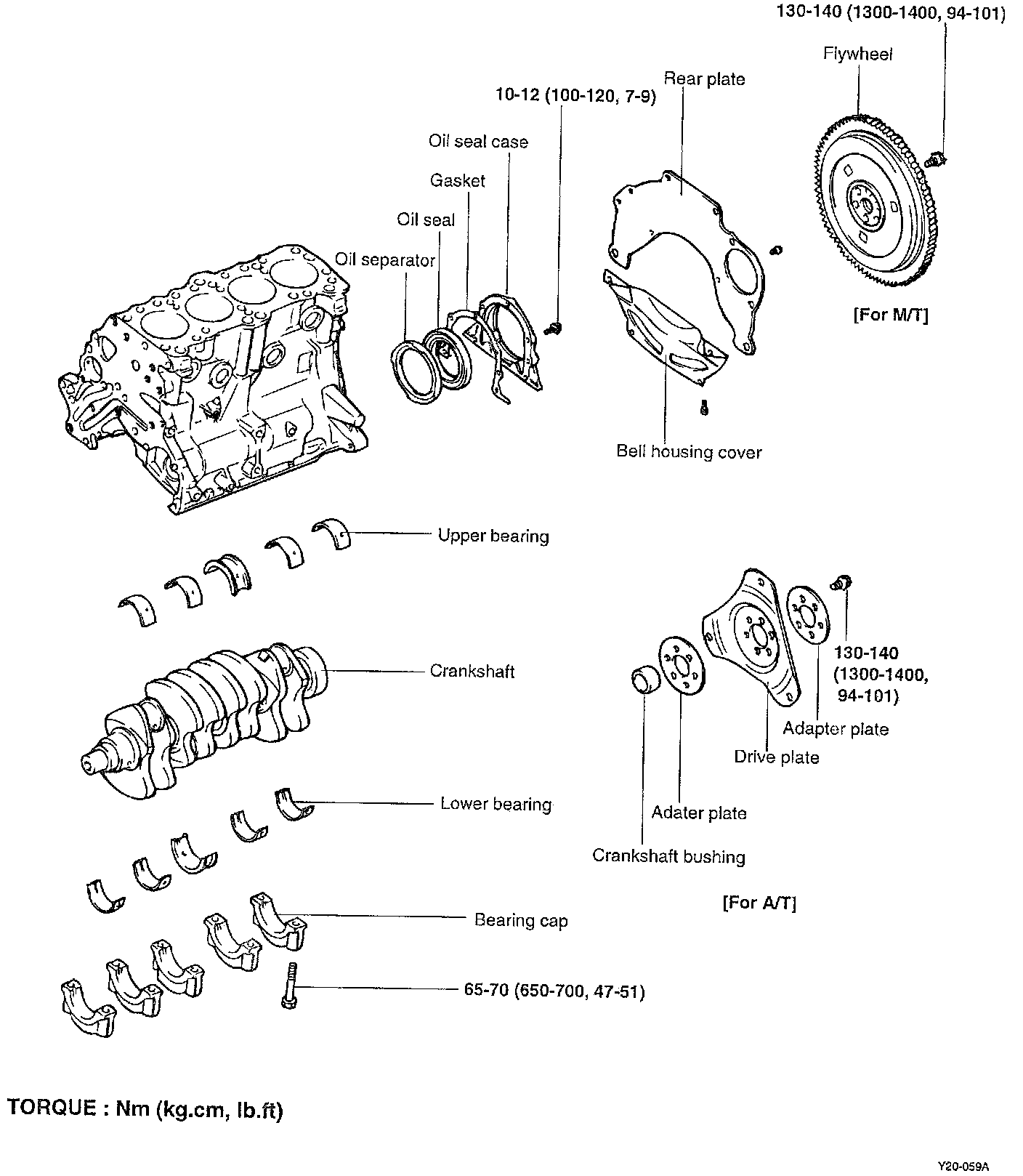

Flywheel/Drive Plate





Drive Plate-To-Converter Tightening Bolt 46-53 Nm (34-38 ft. lbs.)
