Barometric Pressure Sensor: Testing and Inspection

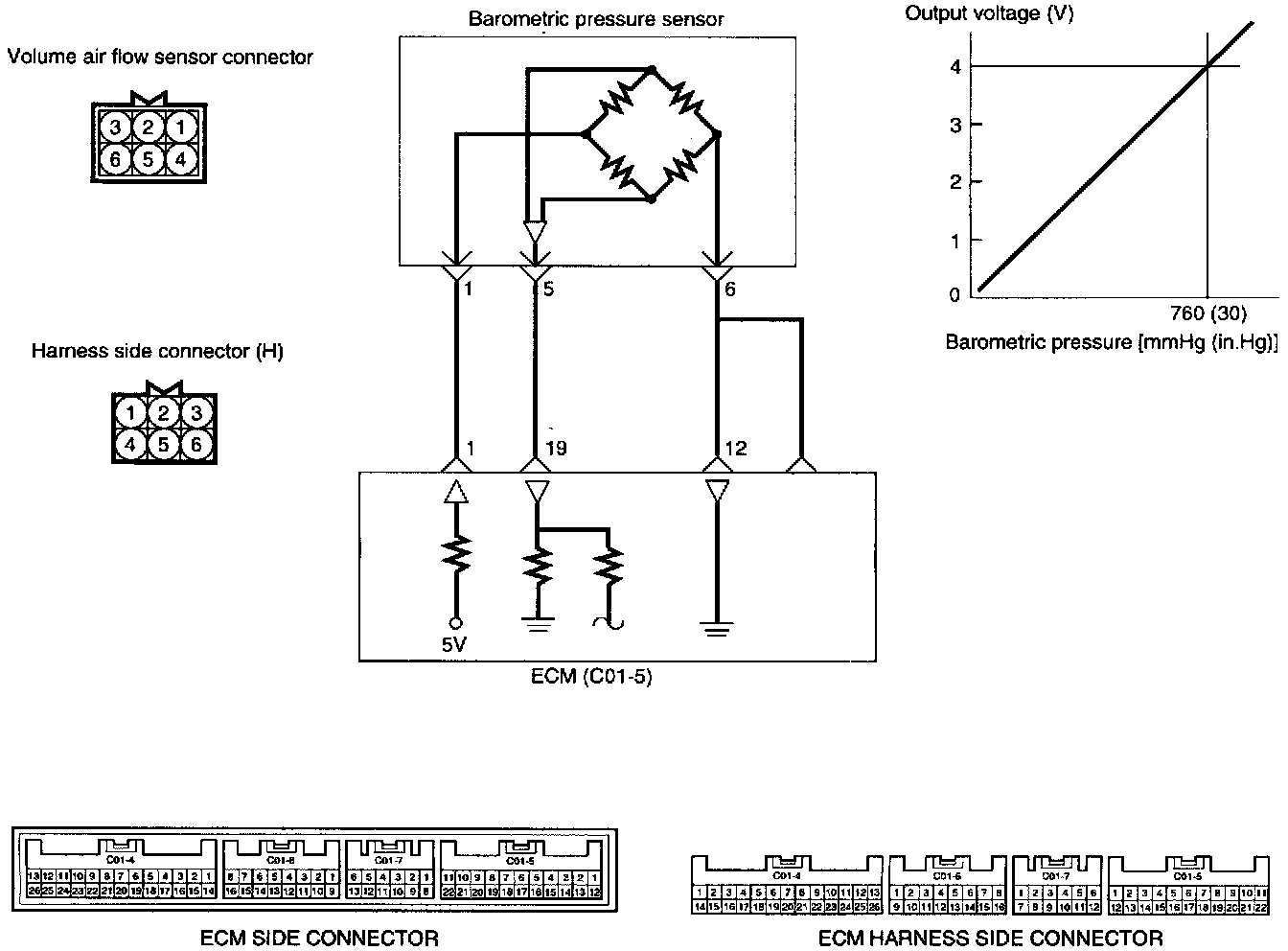

CIRCUIT DIAGRAM

TROUBLESHOOTING HINTS
1. If the barometric pressure sensor is faulty, the vehicle will experience poor driveability.
2. If the pressure of the barometric pressure sensor drops greatly during high speed driving, check the air cleaner for clogging.





Using GST











HARNESS INSPECTION PROCEDURES
