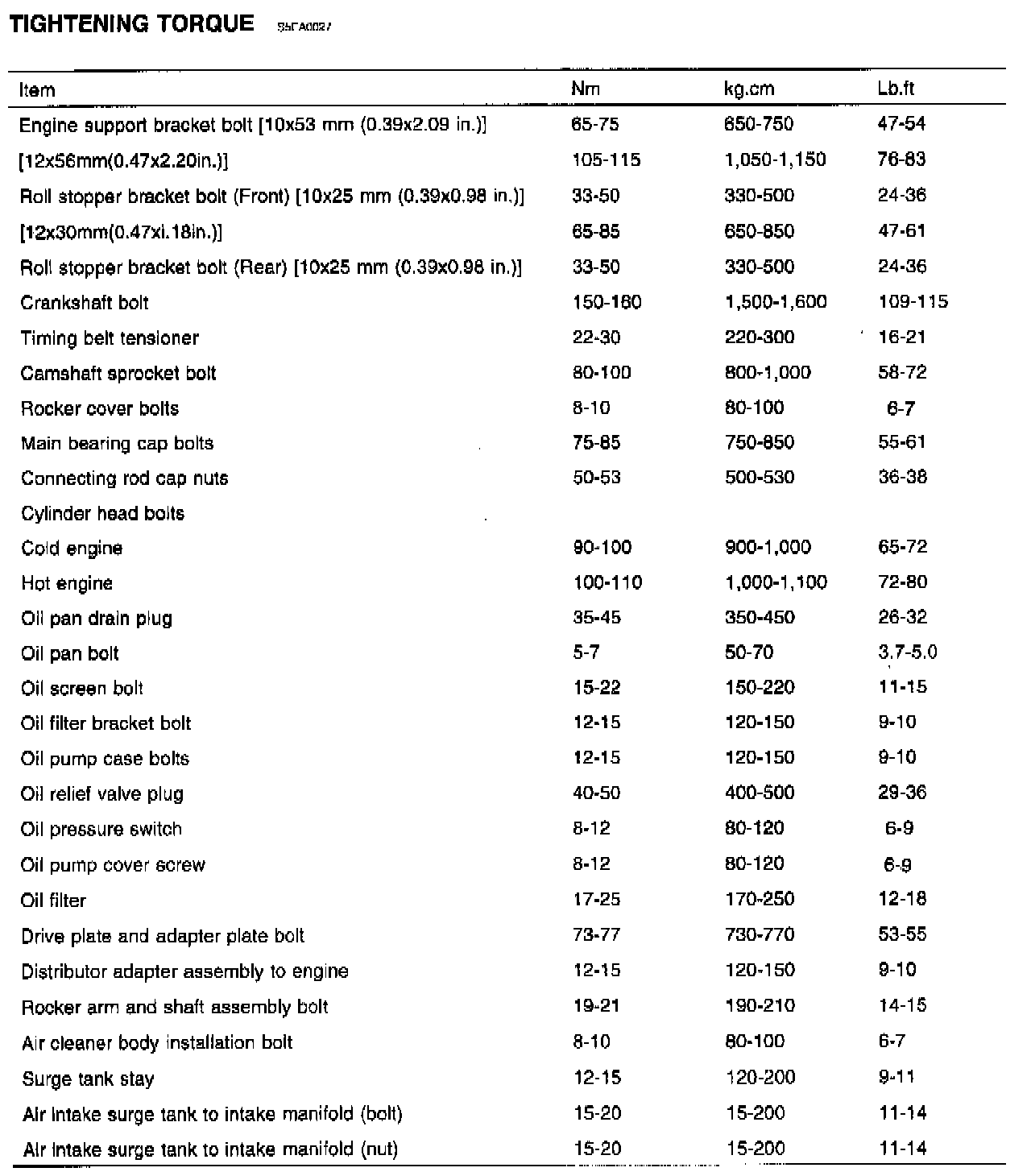

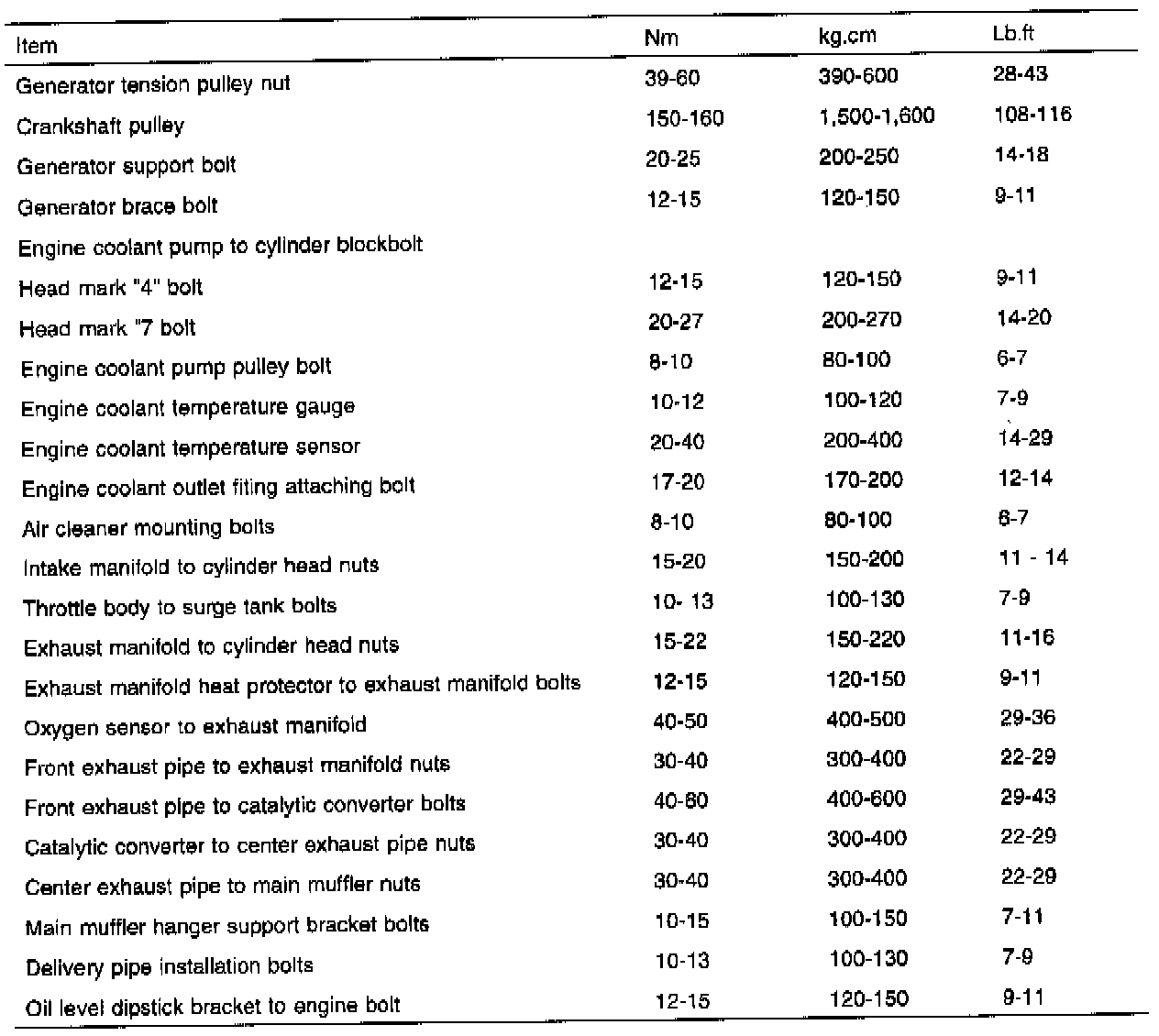

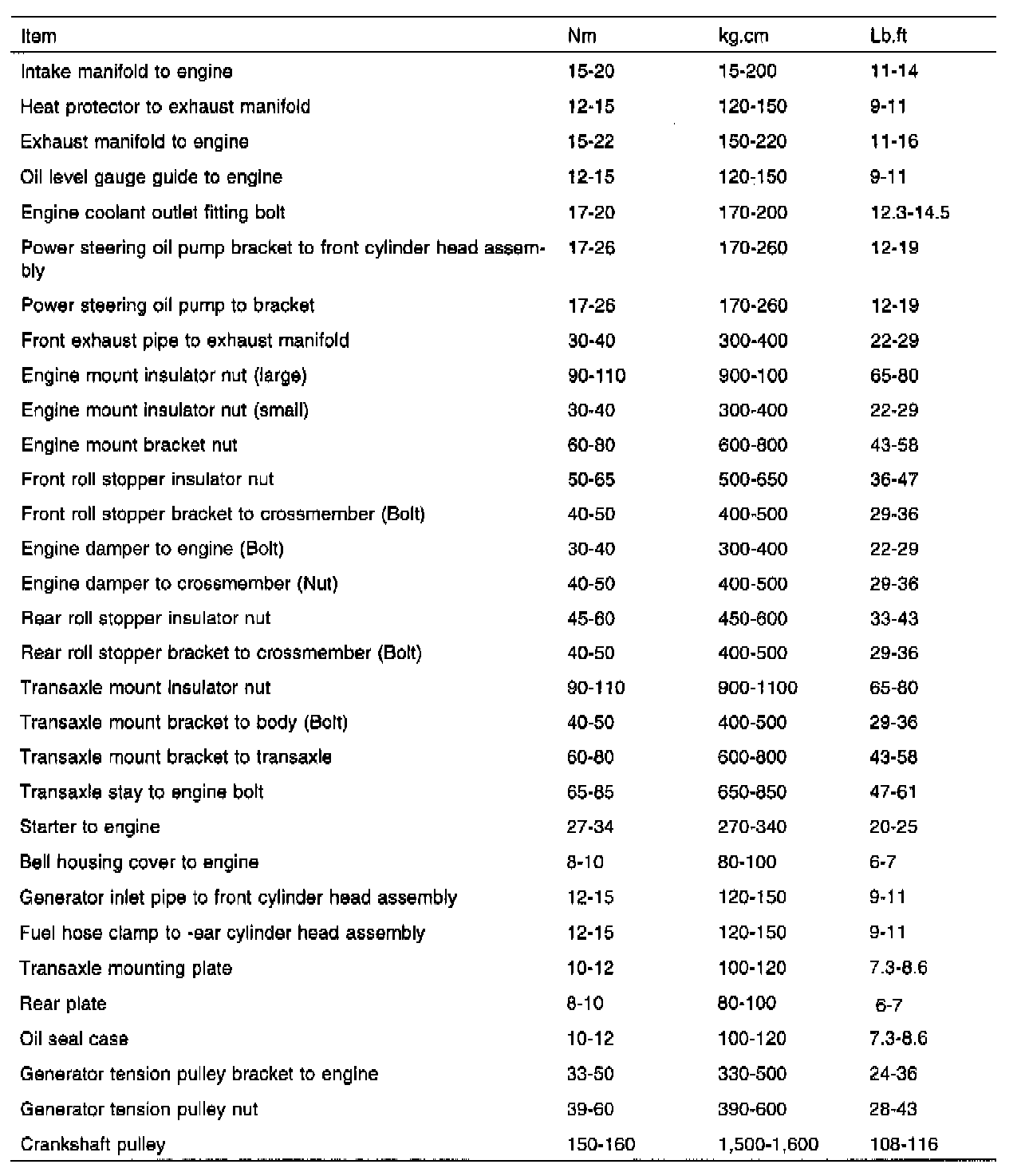

General Torque Specifications

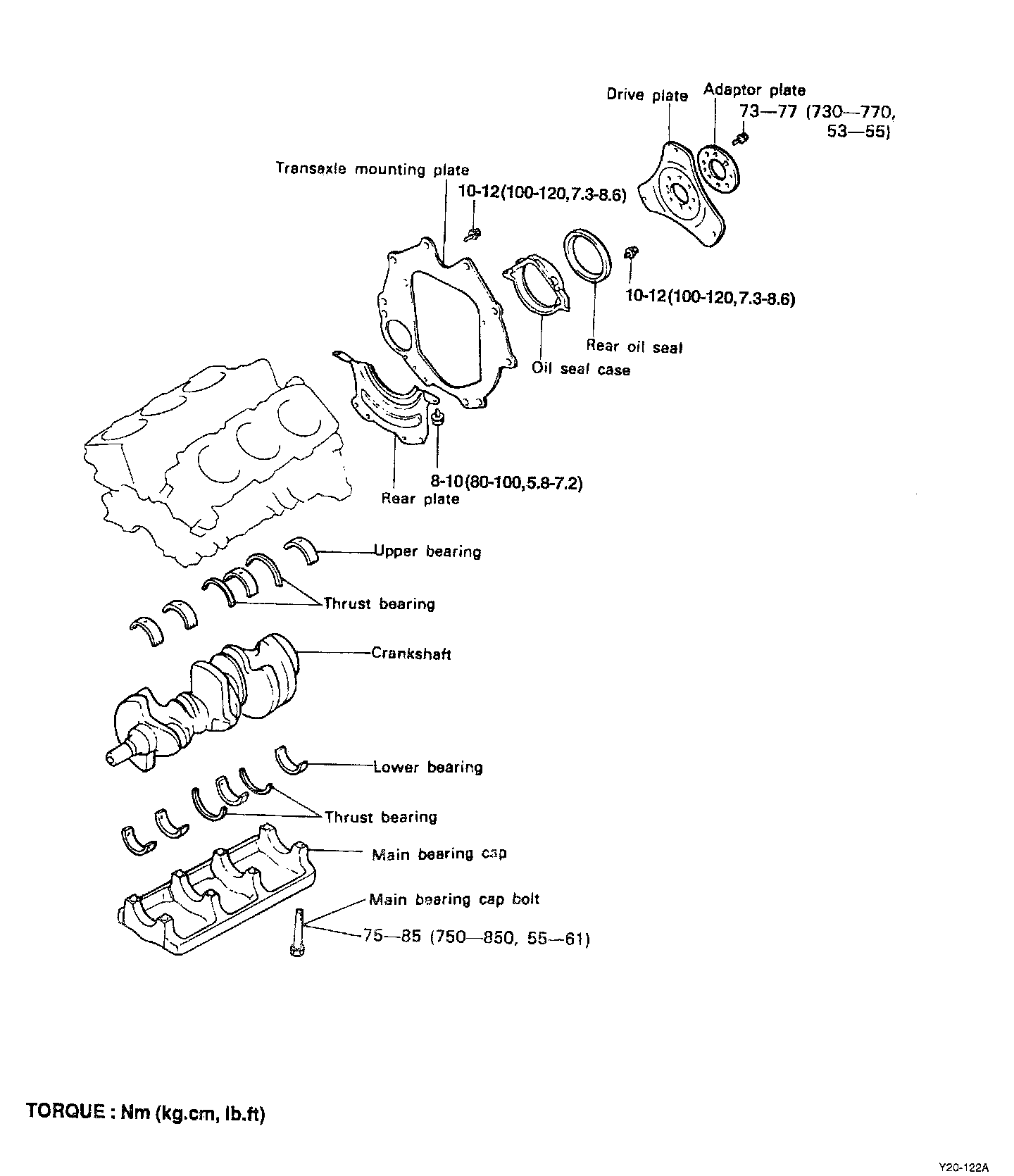

NOTE: Cap bolts should be tightened evenly in 4 to 5 stages before they are tightened to specified torque.

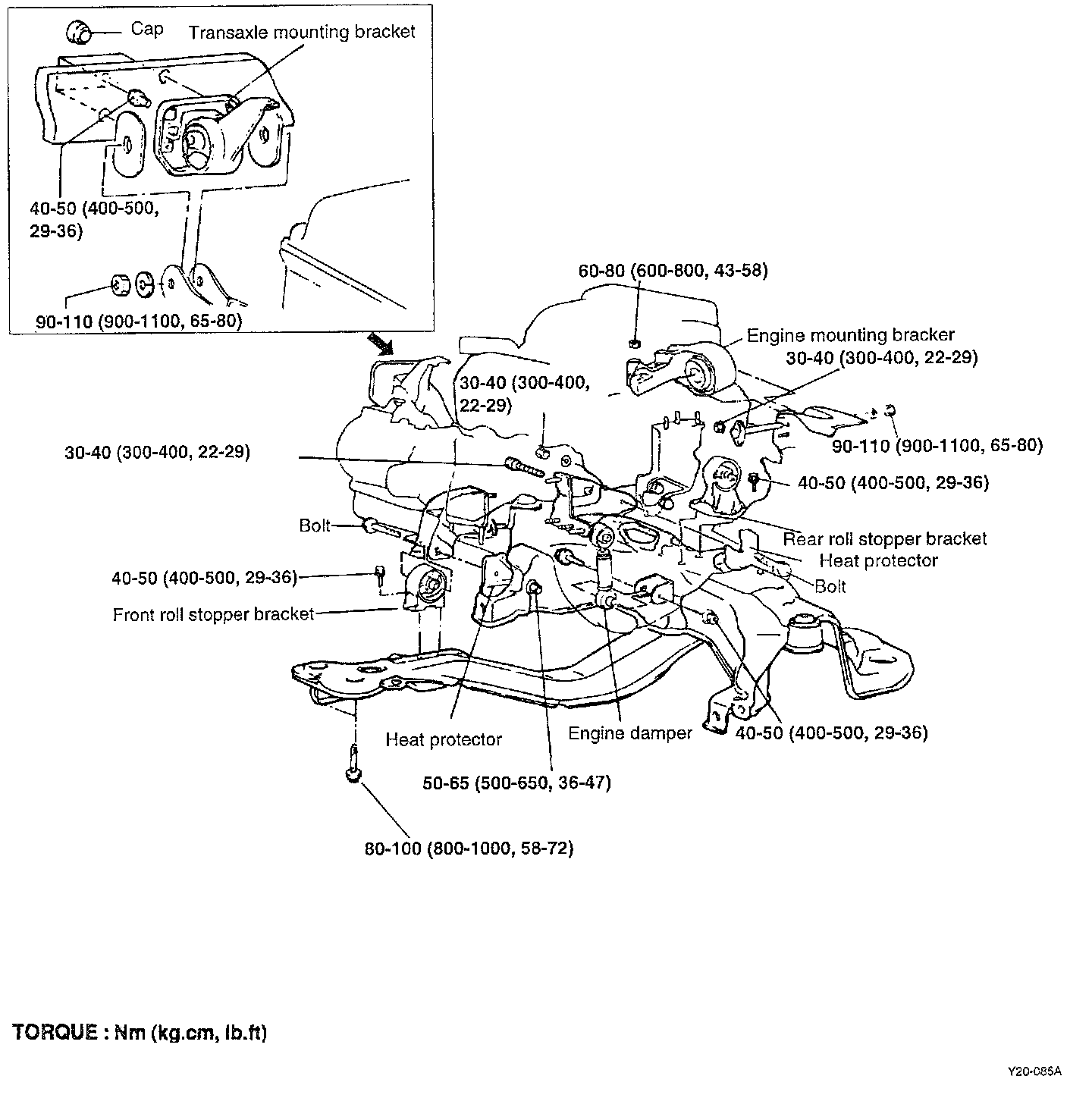

Mounting Brackets

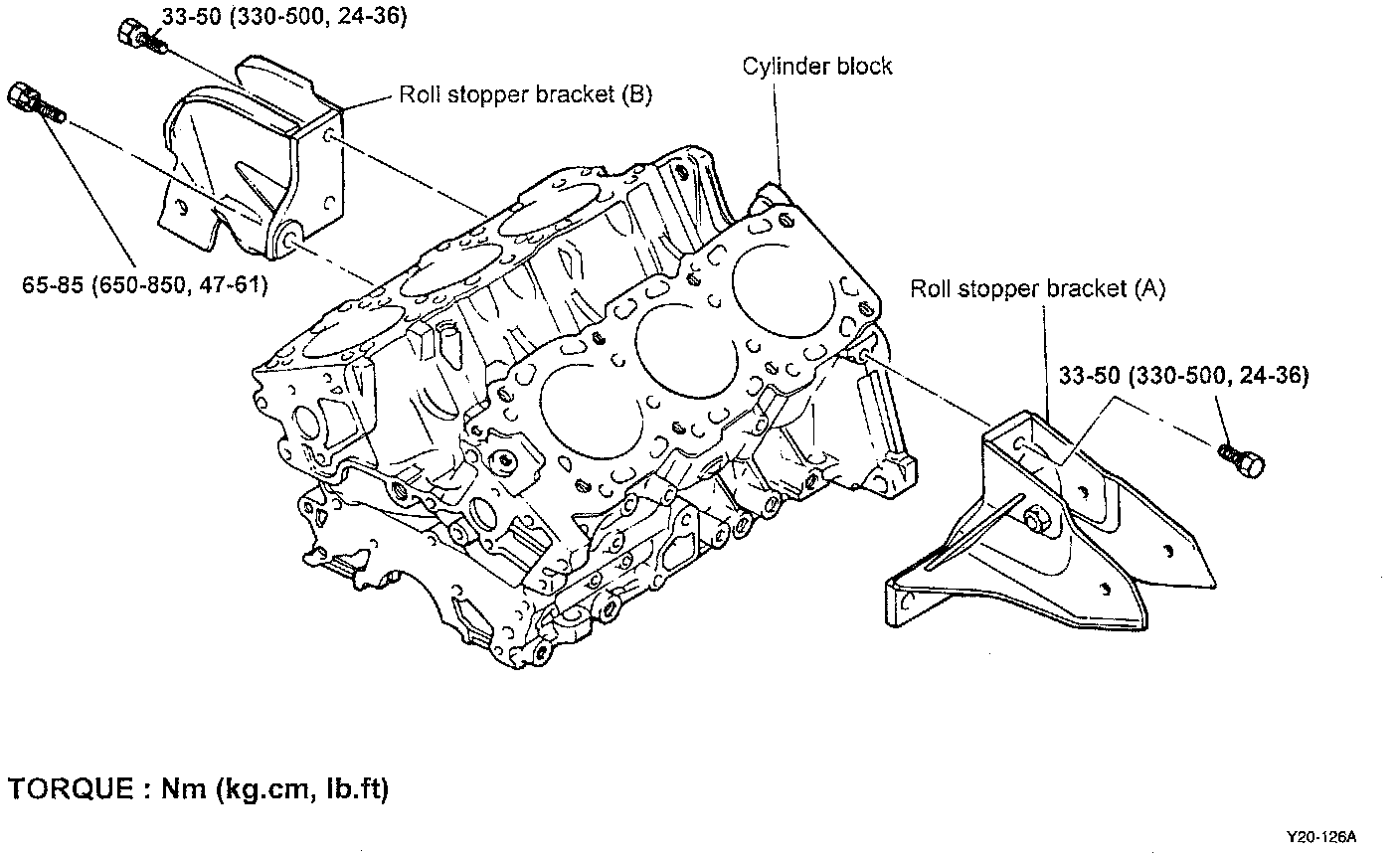

Roll Stopper Brackets

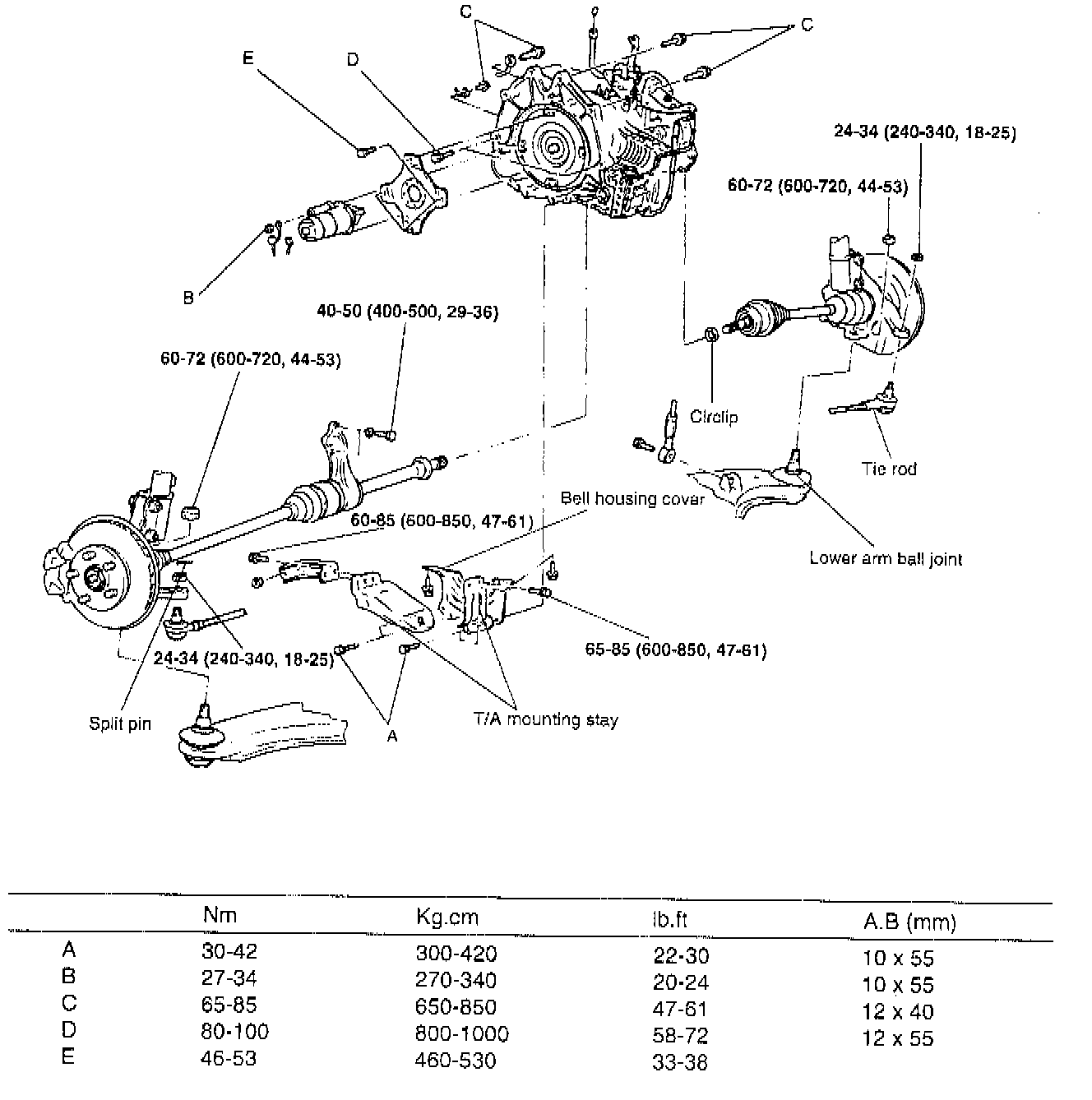

Transaxle Mounts





Drive Plate-To-Converter Tightening Bolt 46-53 Nm (34-38 ft. lbs.)
