Barometric Pressure Sensor: Testing and Inspection

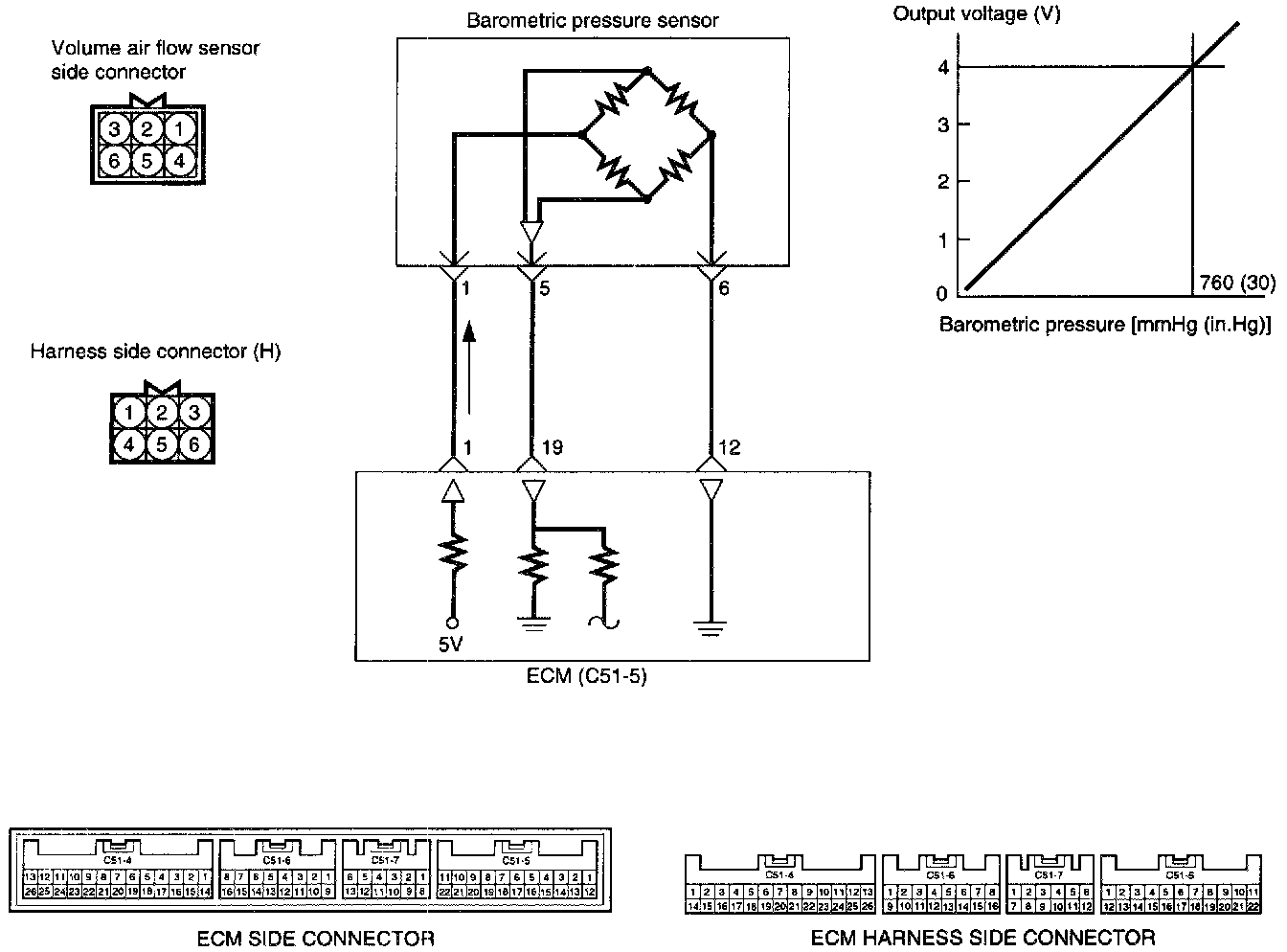

CIRCUIT DIAGRAM

TROUBLESHOOTING HINTS
1. If the barometric pressure sensor is faulty, the vehicle will experience poor driveability.
2. If the pressure of the barometric~ pressure sensor drops greatly during high speed driving, check the air cleaner for clogging.





Using GST











HARNESS INSPECTION PROCEDURES
