Transmission Position Sensor/Switch: Testing and Inspection

CIRCUIT DIAGRAM





INSPECTION USING SCAN TOOL

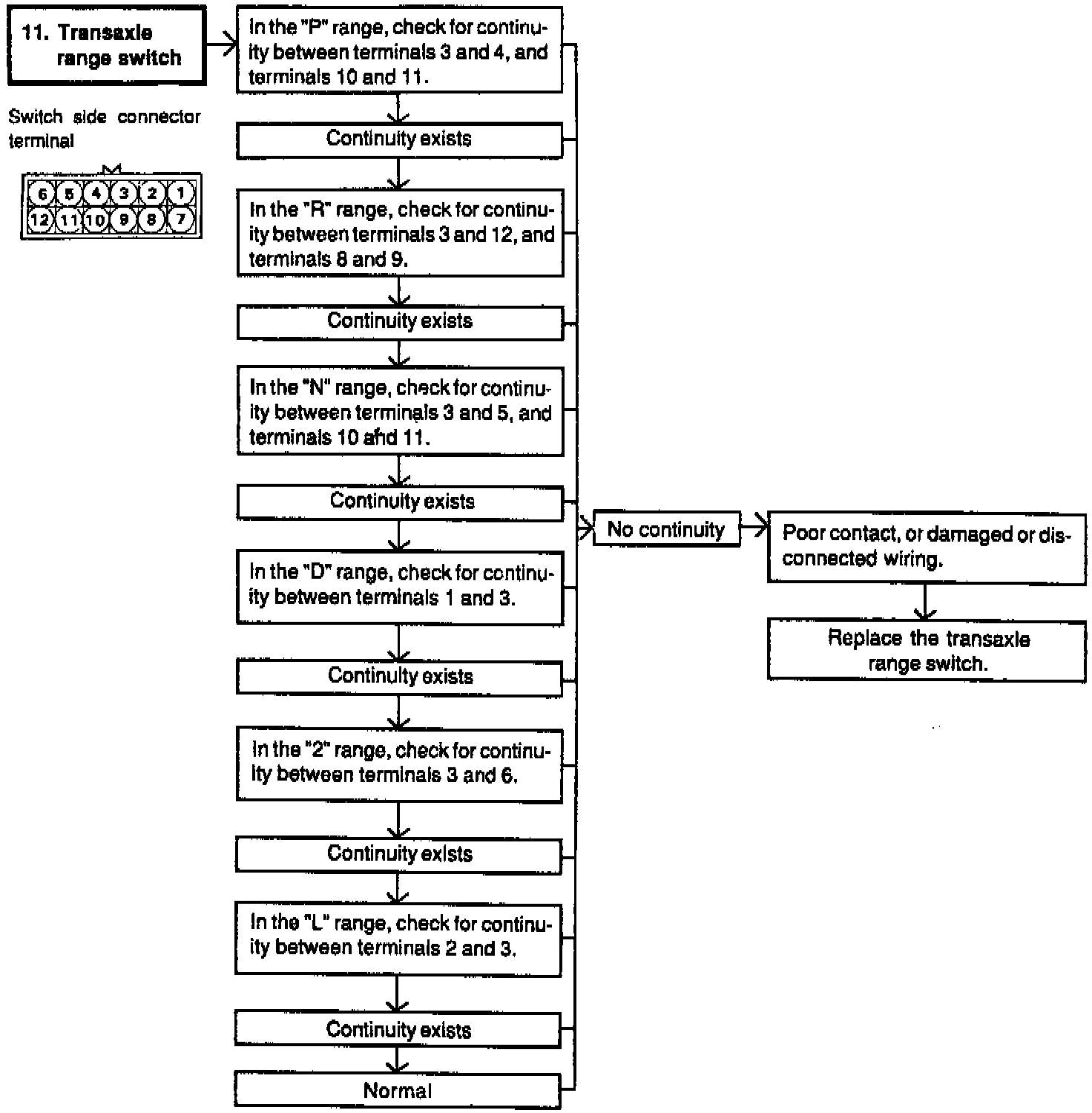

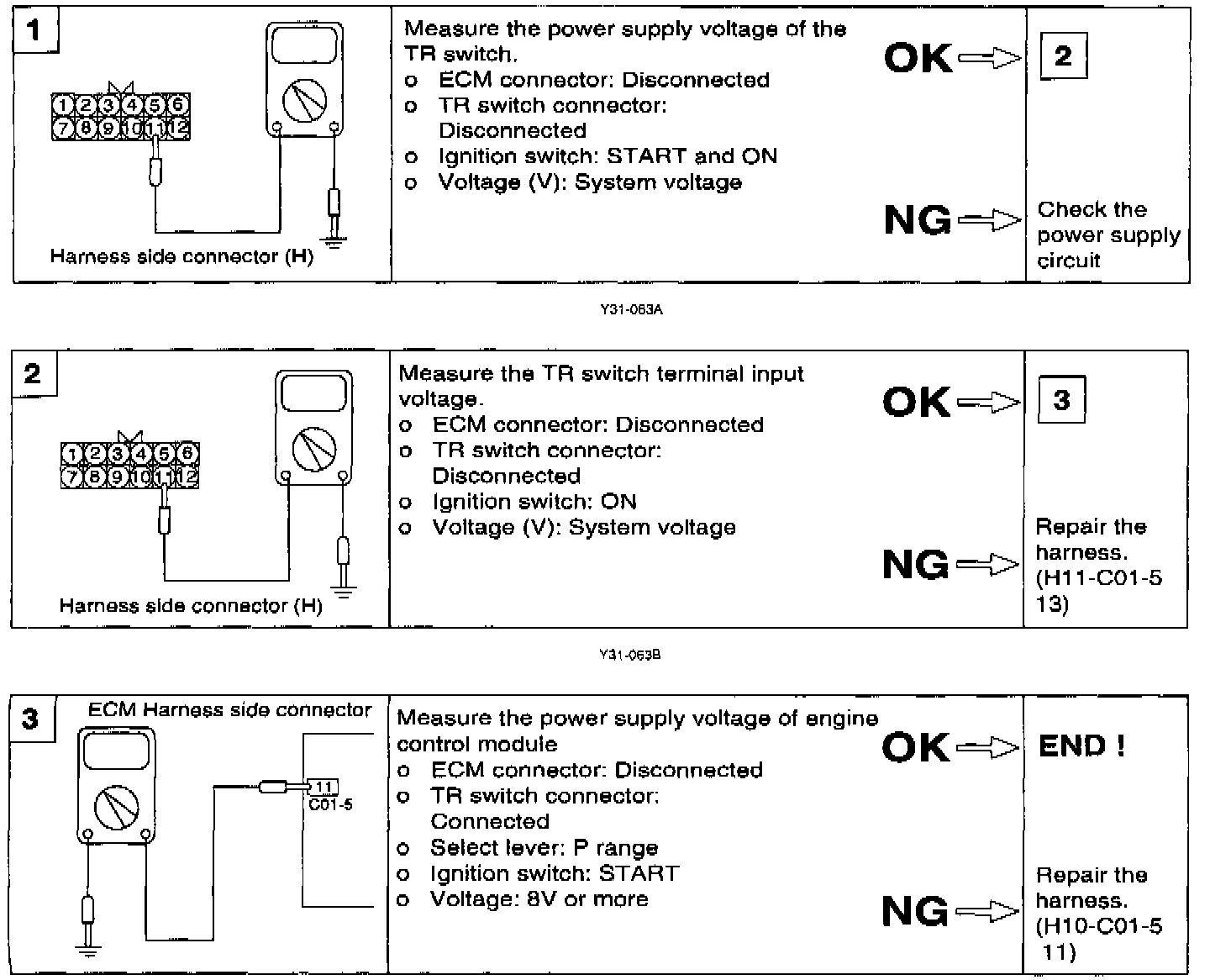

HARNESS INSPECTION PROCEDURE





TRANSAXLE TEST CHART

TROUBLESHOOTING HINTS
If the transaxle range switch harness check is normal but the transaxle range switch output is abnormal, check the control cable adjustment.
