Camshaft Position Sensor: Testing and Inspection

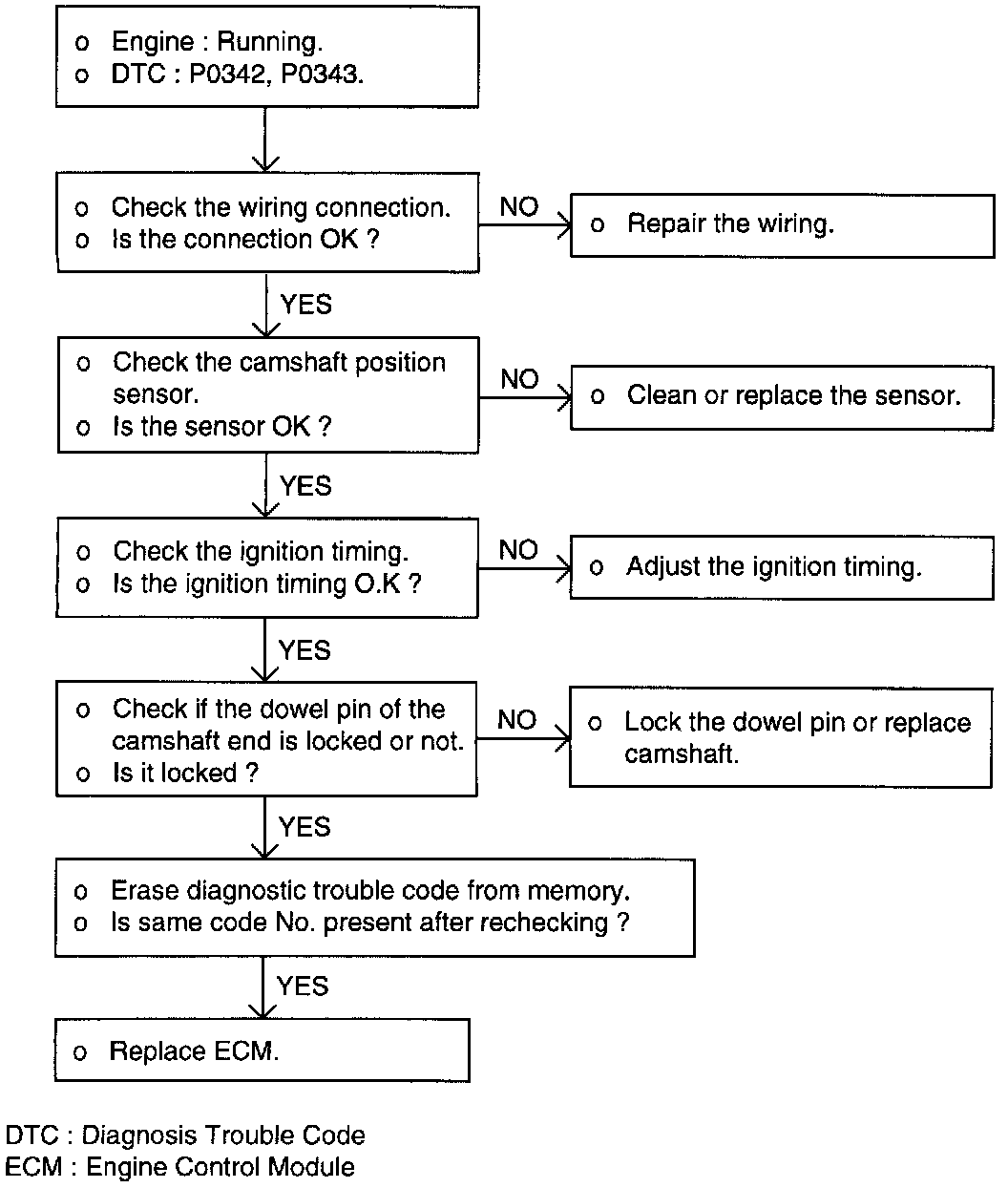

TROUBLESHOOTING PROCEDURES

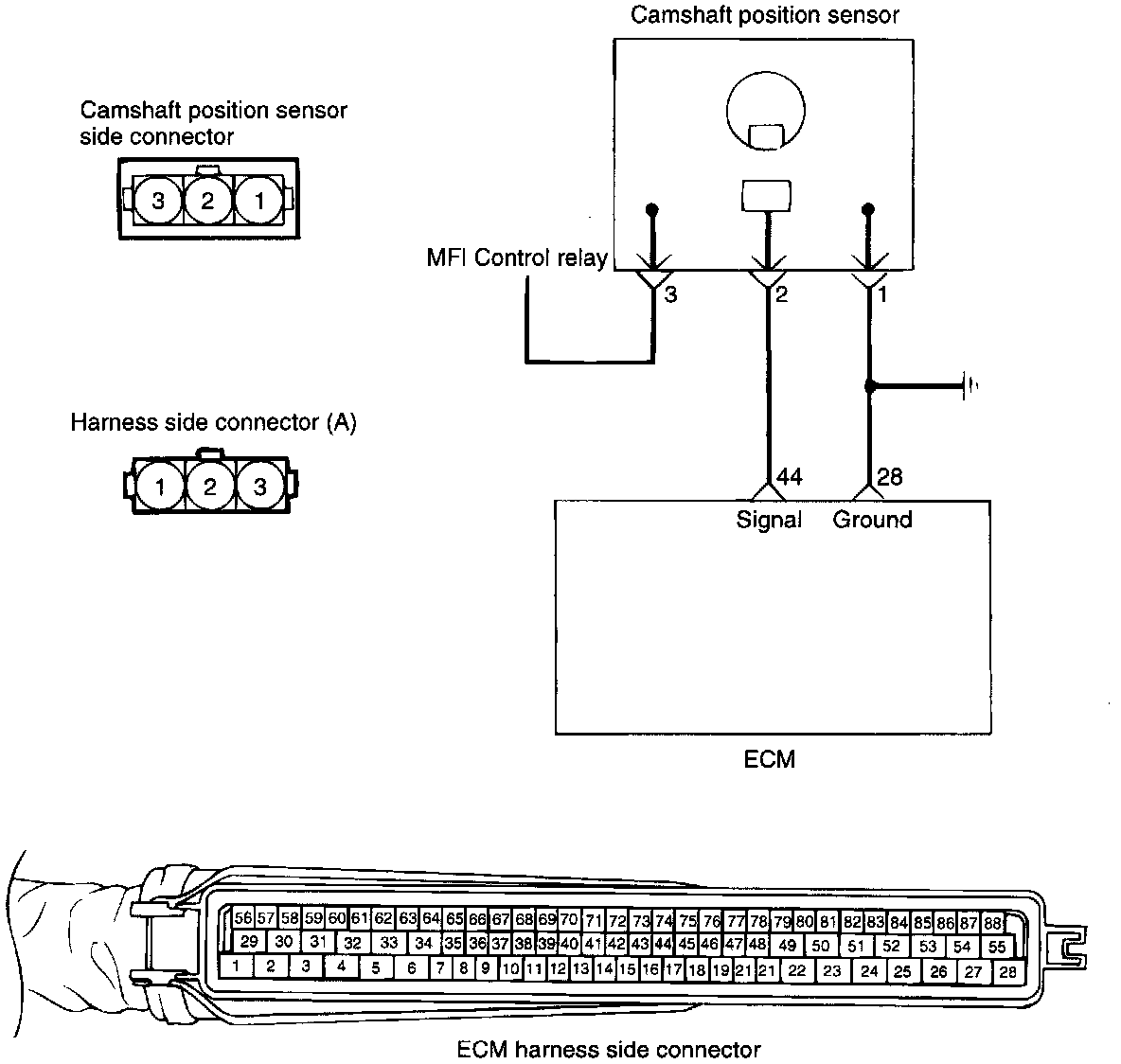

CIRCUIT DIAGRAM

HARNESS INSPECTION PROCEDURES

SENSOR INSPECTION

Using Voltmeter

TROUBLESHOOTING HINTS
If the camshaft position sensor does not operate correctly, correct sequential injection does not occur so the engine may stall or run irregularly at idle or fail to accelerate normally.
