Component Location

Emission-related components are shown in illustration. See Fig 1 .

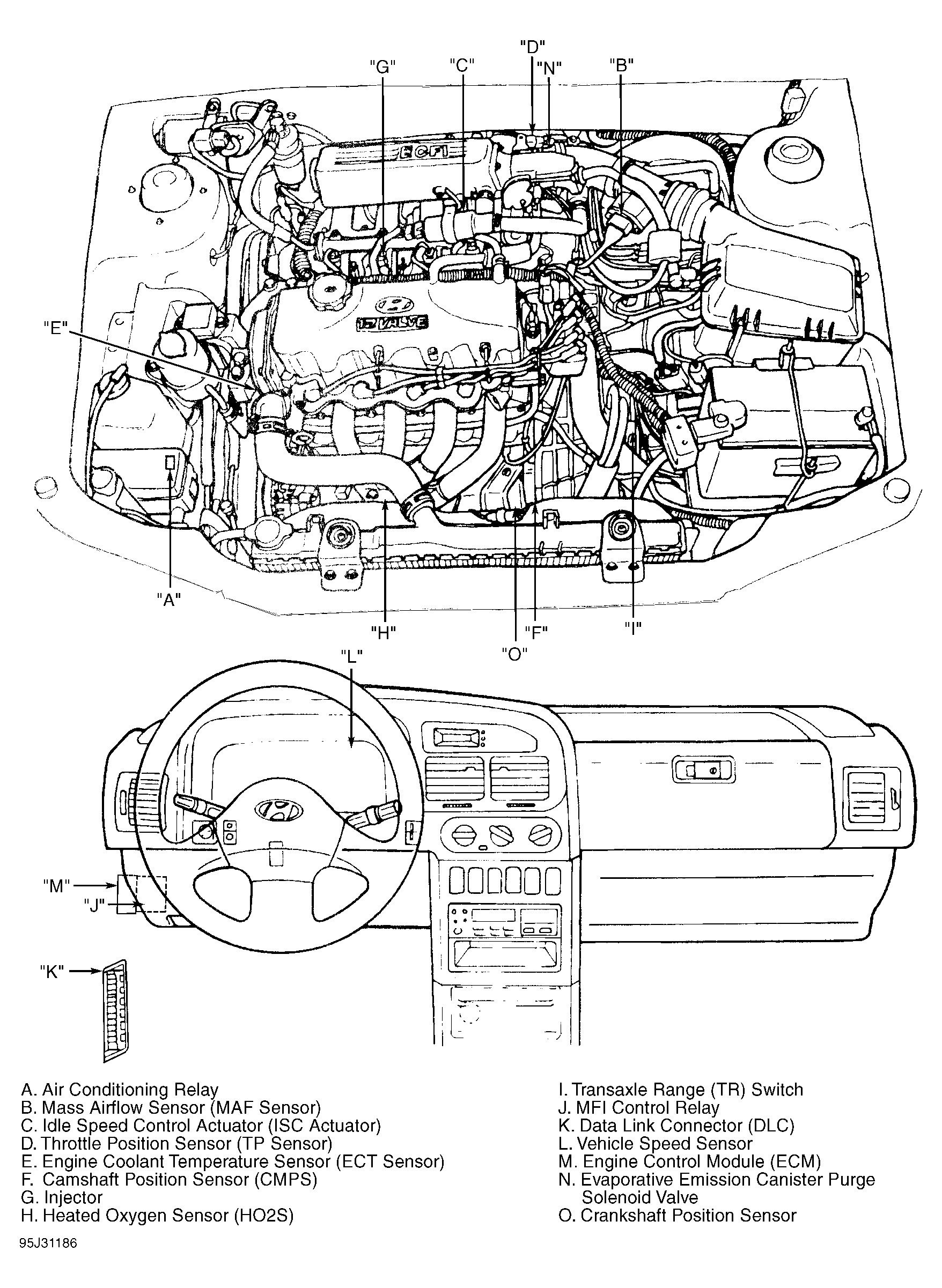

Fig 1: Identifying Emission-Related Components (Scoupe)
G95J31186Courtesy of HYUNDAI MOTOR CO.
