UNDERDASH Fuse Panel Identification: Notes

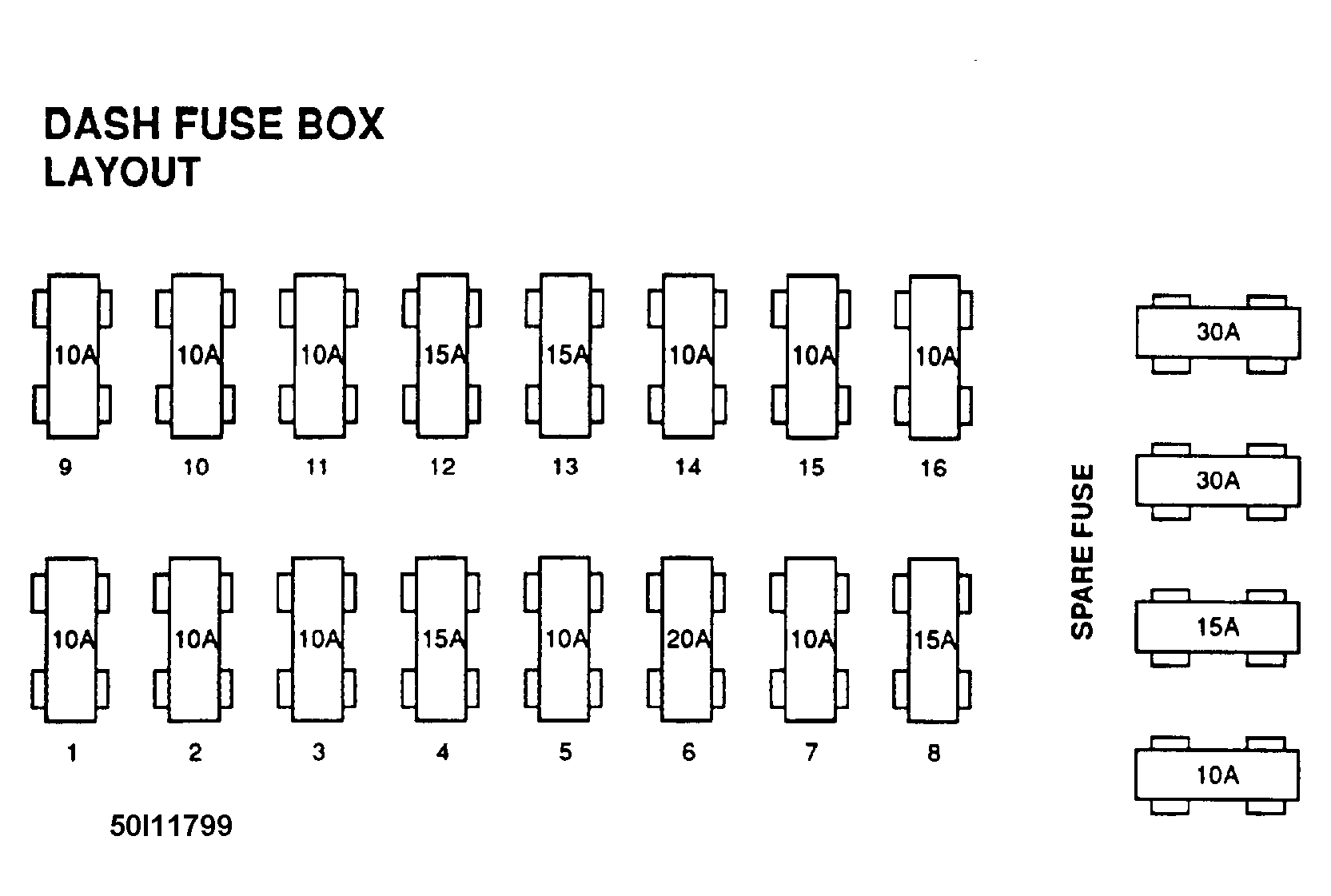

Fig 1: Fuse Panel Identification
G50I11799Courtesy of HYUNDAI MOTOR CO.
