Home >> Hyundai >> 1992 >> Sonata L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Shift Interlock Control Module

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

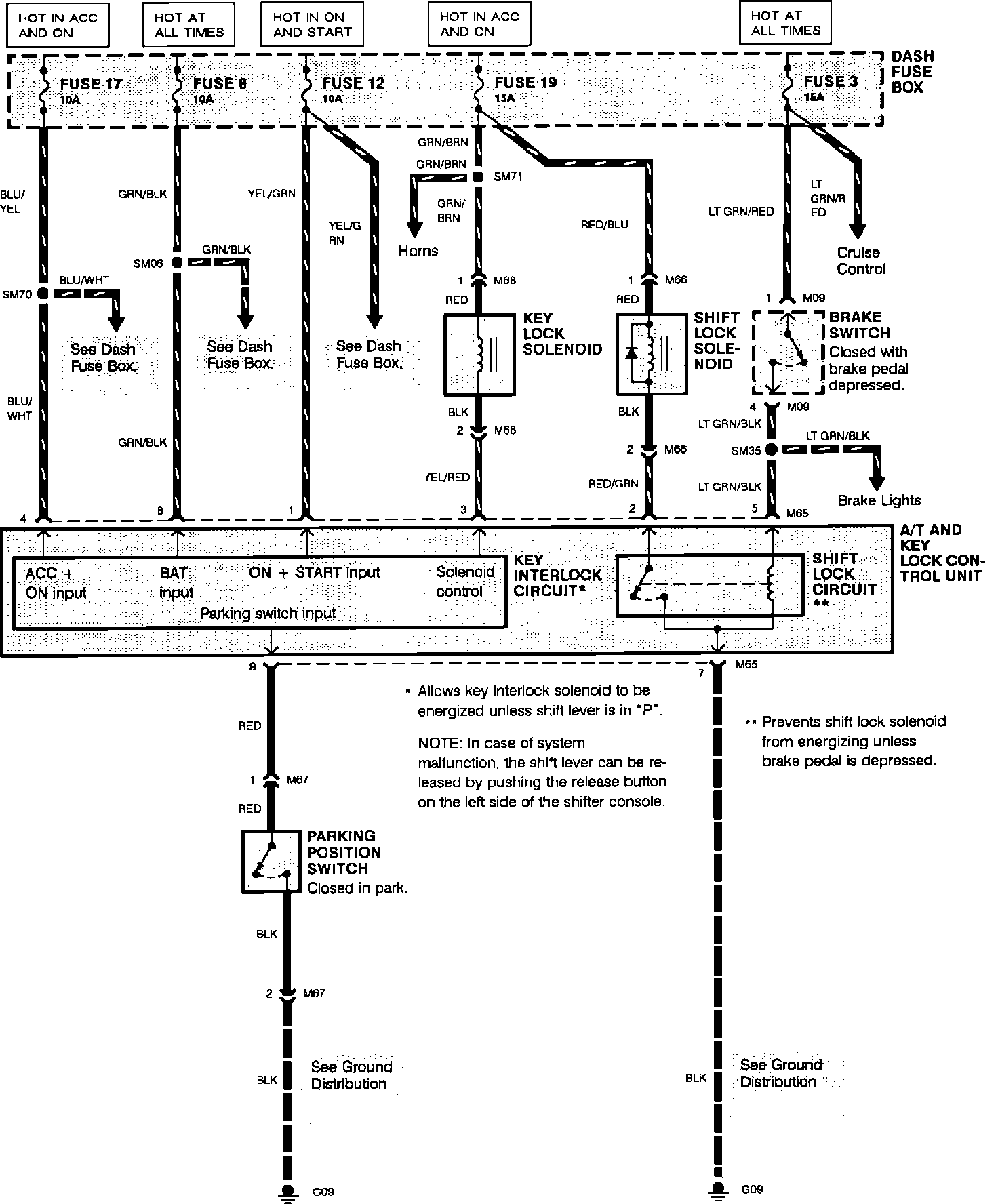

Shift Interlock Control Module

Interlock System:
