Testing Combination Switch

This term is used by some makers to describe headlight/turn signal/wiper switches on column. See Fig 1 .

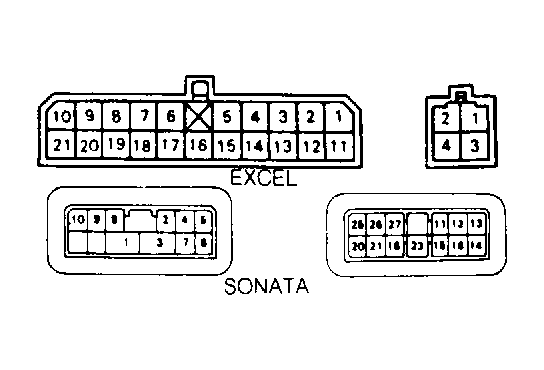

Fig 1: Identifying Combination Switch Connectors
G91G00055Courtesy of HYUNDAI MOTOR CO.
