Ignition Interlock Switch (V2-90-015)

Publication date: 1990-05-01
Reference number: V2-90-015

IGNITION INTERLOCK SWITCH

IGNITION INTERLOCK SWITCH

TECHNICAL SERVICE BULLETIN

Reference Number(s): V2-90-015, Date of Issue:  May, 1990
HYUNDAI: Excel 1990
GROUP: 90 - Electrical

DESCRIPTION

The 1990 Excel Shop Manual, Appendix page 20, illustrates an ignition interlock switch in the starting circuit for manual transmission vehicles to prevent starting the car unless the clutch pedal is fully depressed.

The 1990 Excels are not equipped with this interlock switch.

The 1990 Excel Owners Manual, page 2-3, is correctly written and states:

"For safety, the engine will not start if the clutch pedal is not depressed fully (if equipped)  ".

The correct electrical diagram for the manual transmission is shown below. Please correct page 20 in the Appendix of your Shop Manual.

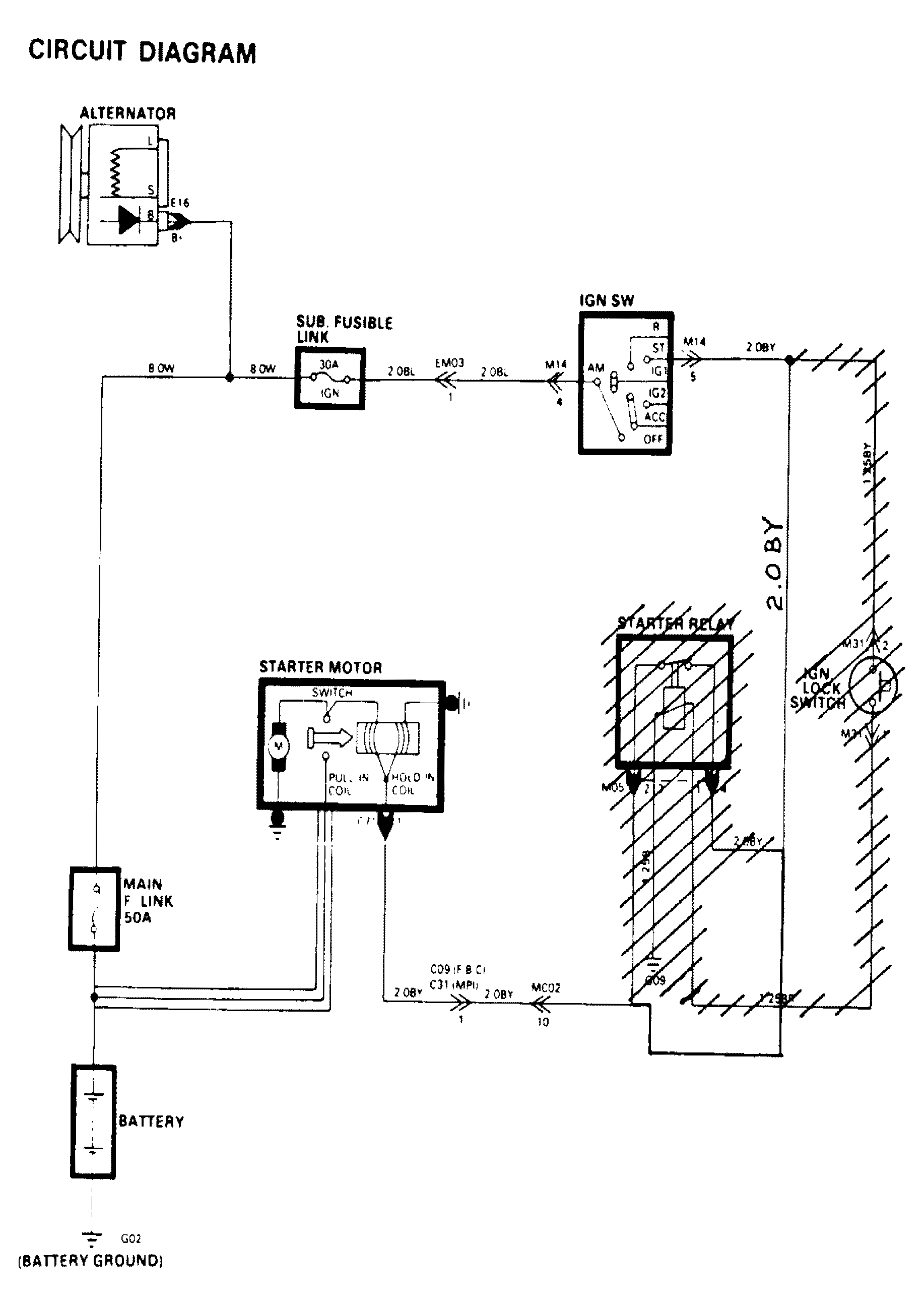

STARTING SYSTEM (M/T)

Fig 1: Starting System (M/T) Circuit Diagram
G04589281Courtesy of HYUNDAI MOTOR CO.
