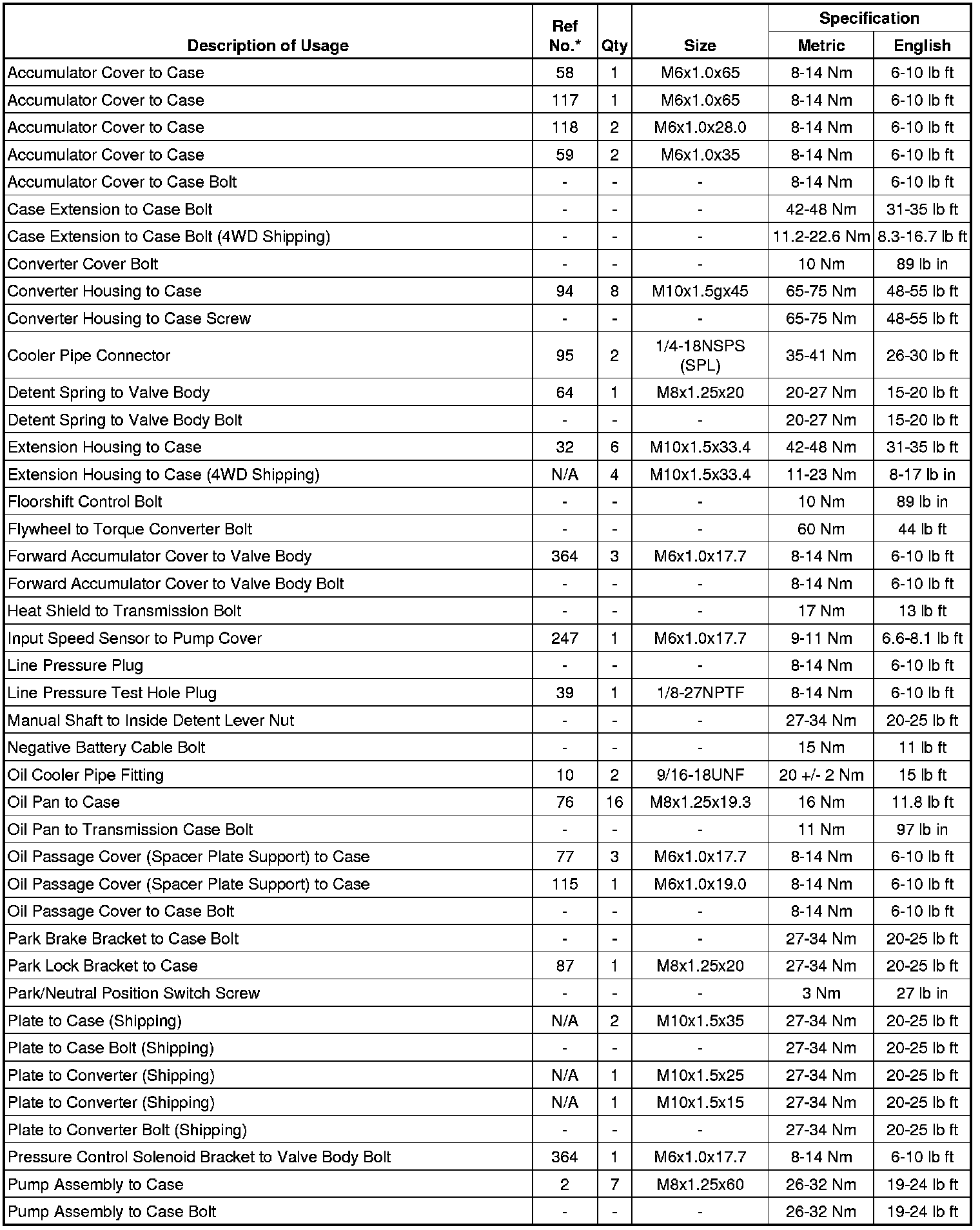

Fastener Tightening Specifications




Fastener Tightening Specifications













Automatic Transmission Flex Plate Bolts

First Pass 40 Nm (30 lb ft)
Final Pass 45 degrees
