Coolant Temperature Sensor/Switch (For Computer): Diagrams




Component Connector End Views

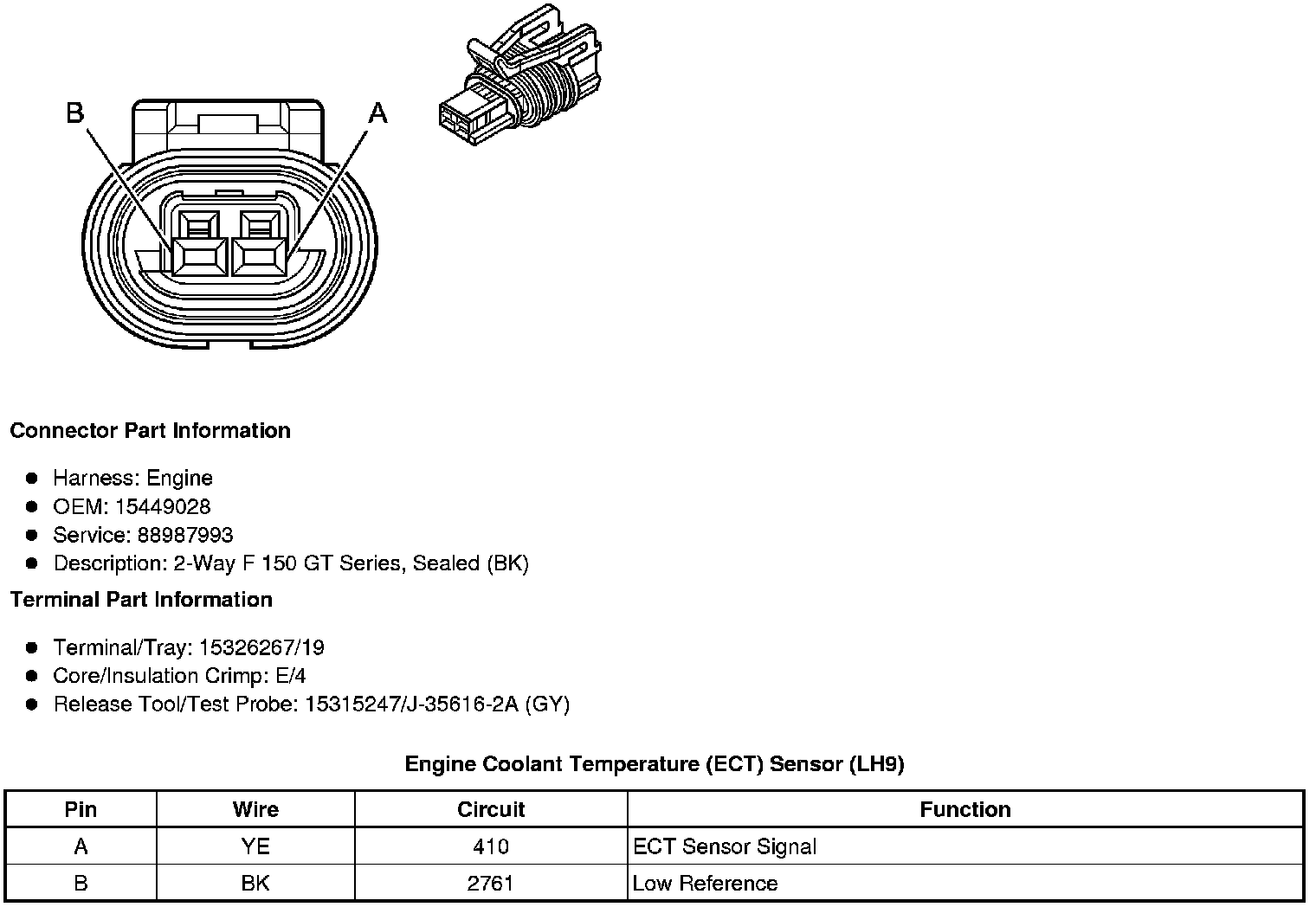

Engine Coolant Temperature (ECT) Sensor (LH9)





Engine Coolant Temperature (ECT) Sensor (LLR)
