Turn Signal Lamp




Component Connector End Views

Park/Turn Signal Lamp - Left Front (without TR6)





Park/Turn Signal Lamp - Right (without BRM)





Tail/Stop Lamp and Turn Signal - Left (SUV without T89)





Tail/Stop Lamp and Turn Signal - Right (SUV without T89)

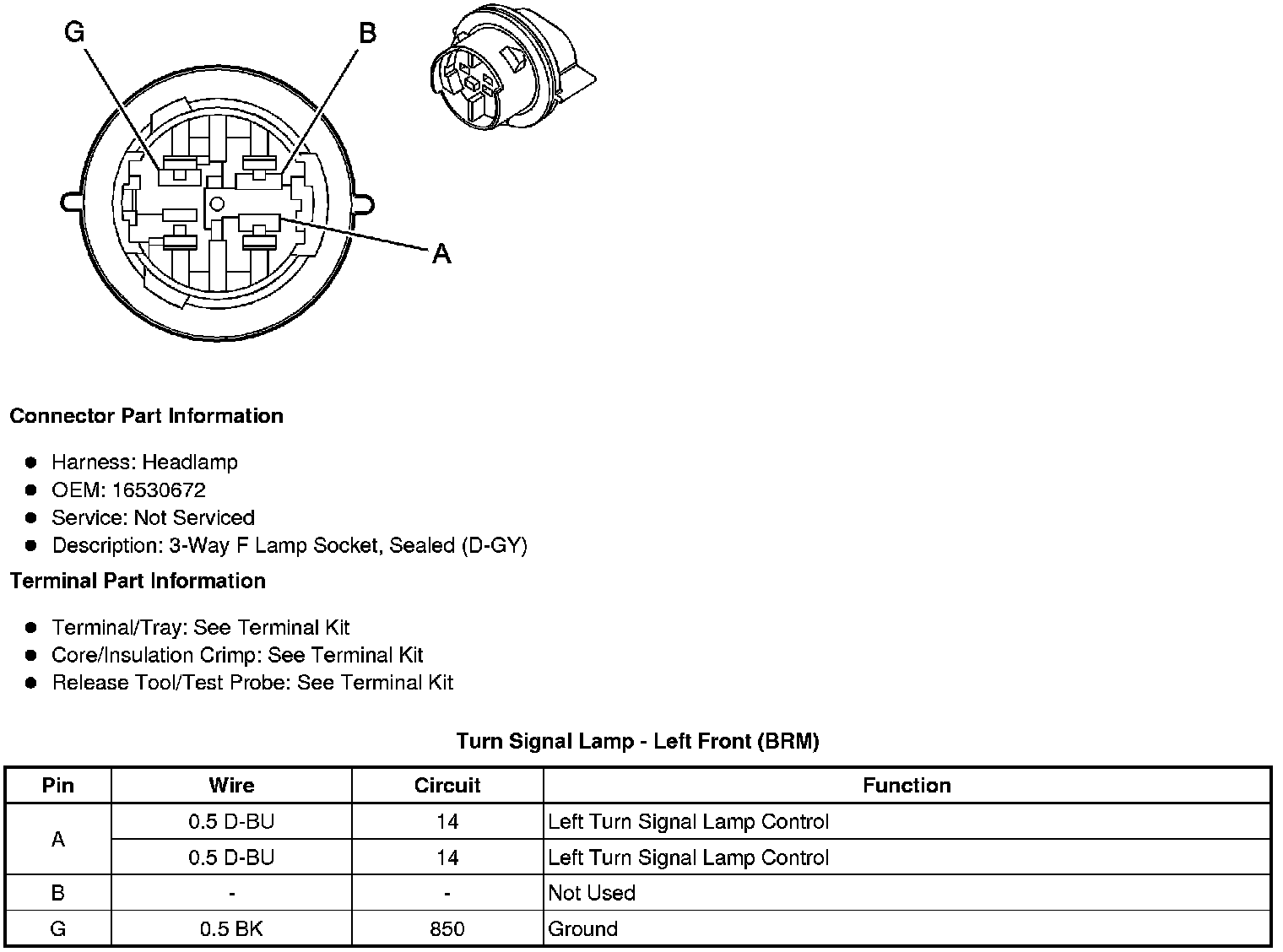

Turn Signal Lamp - Left Front (BRM)

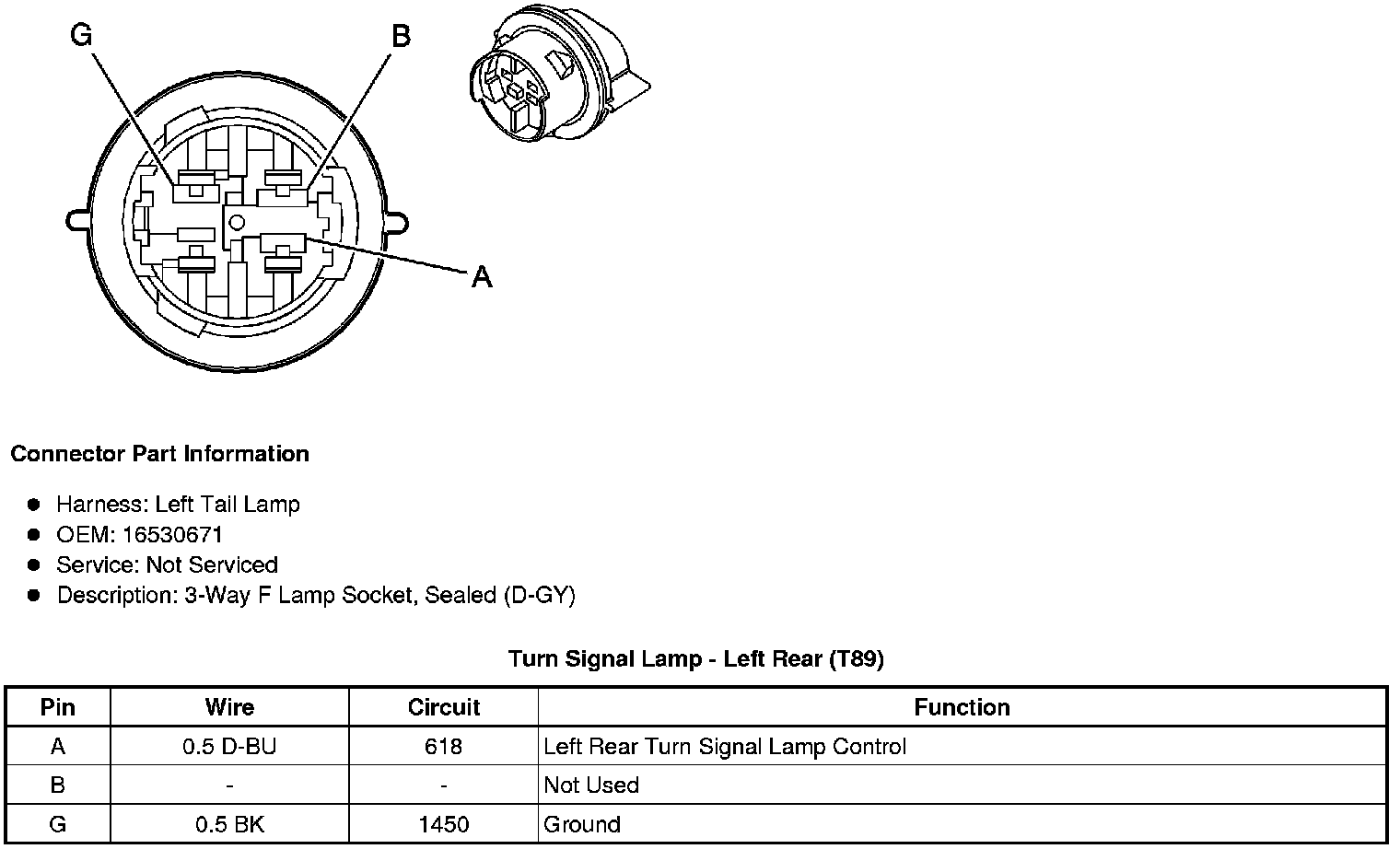

Turn Signal Lamp - Left Rear (T89)





Turn Signal Lamp - Left Rear (Truck)

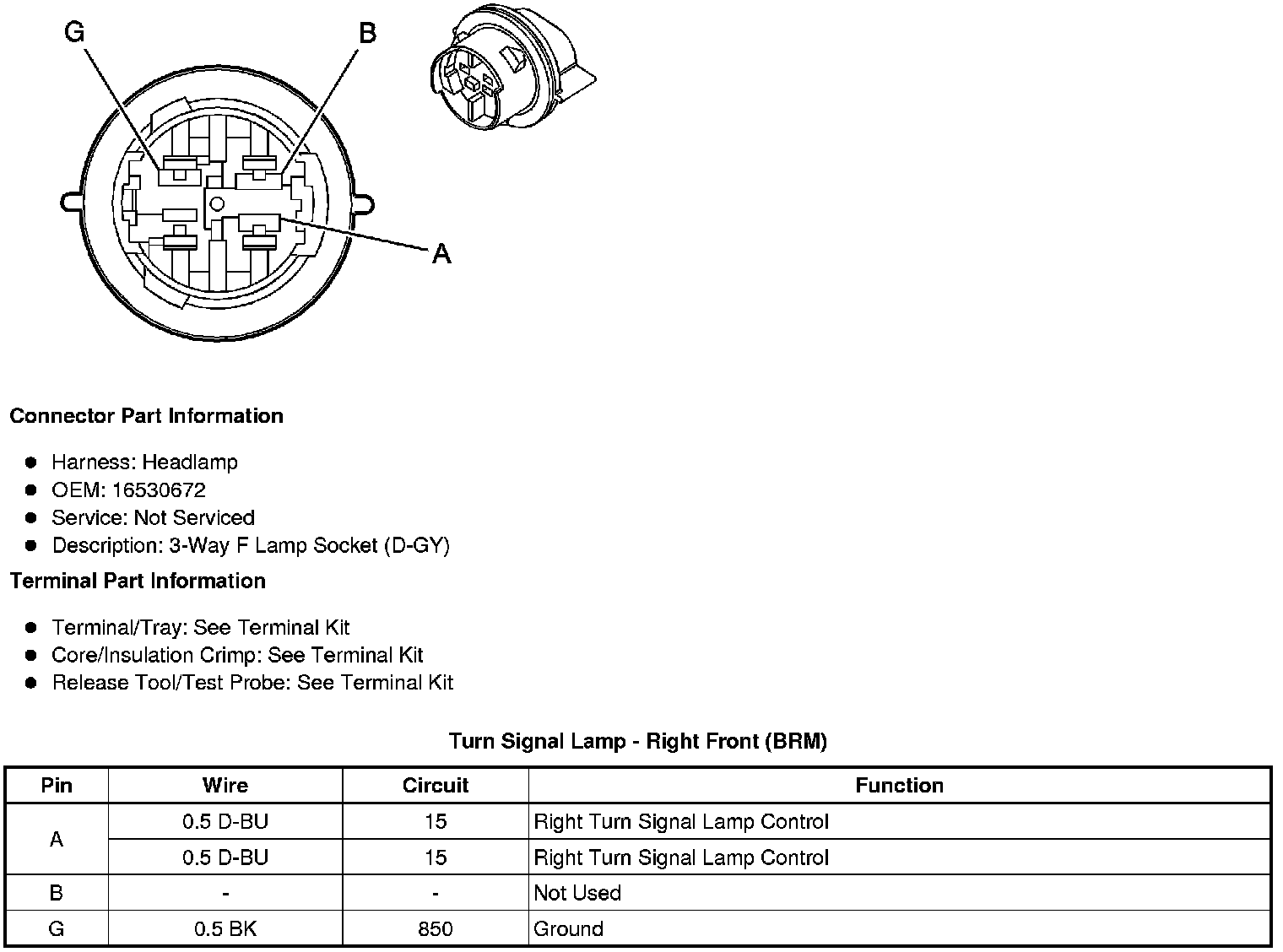

Turn Signal Lamp - Right Front (BRM)

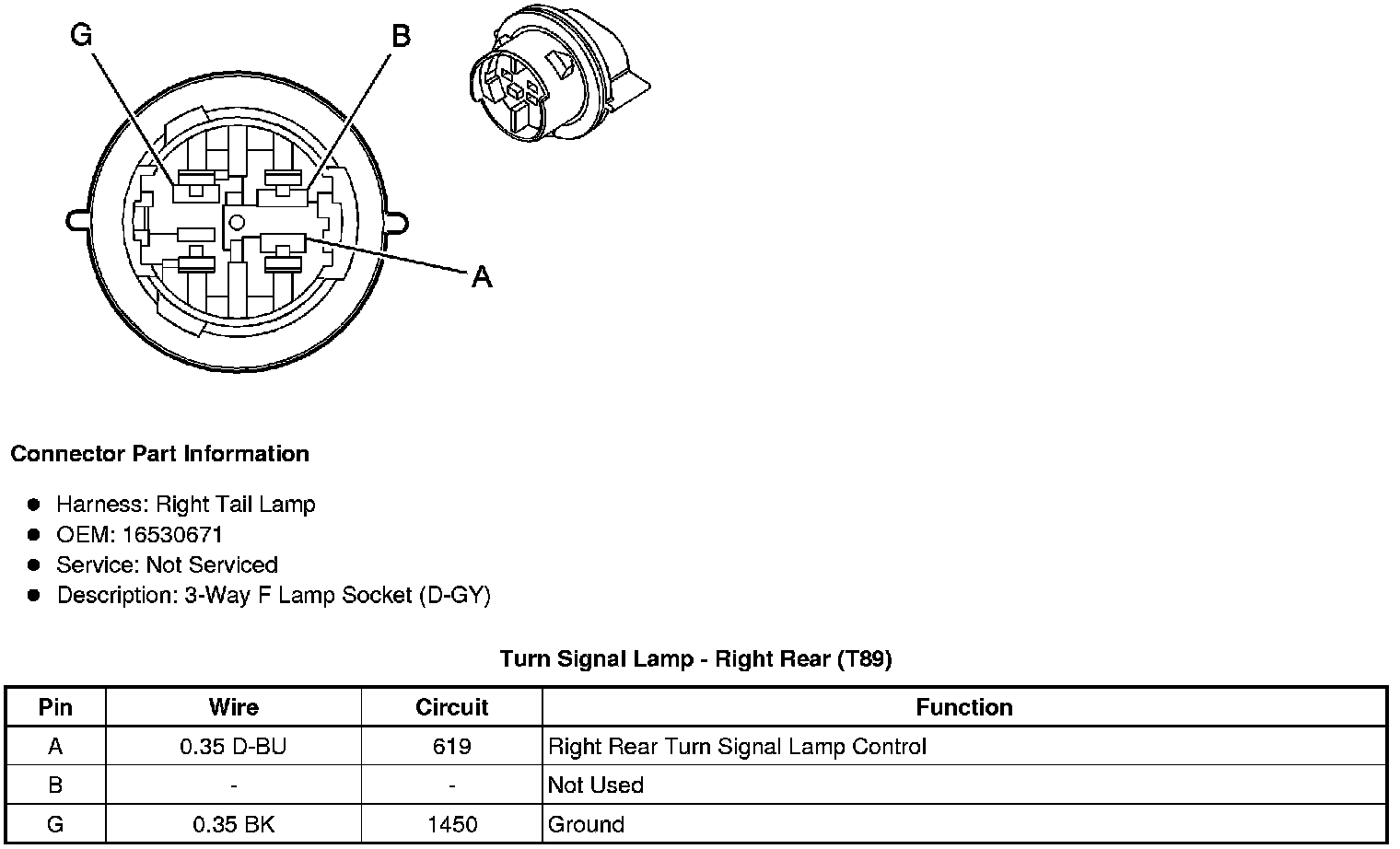

Turn Signal Lamp - Right Rear (T89)

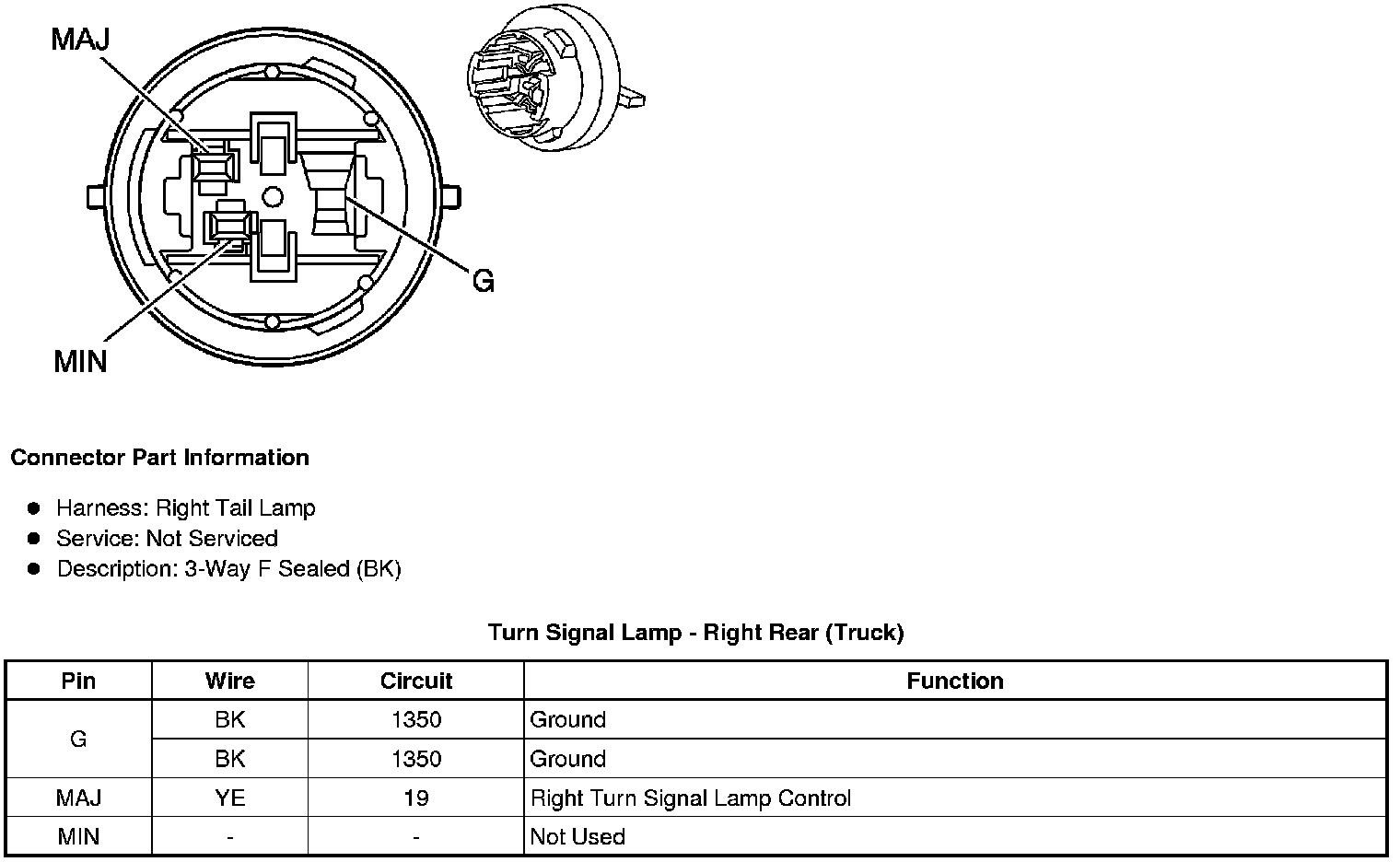

Turn Signal Lamp - Right Rear (Truck)





Turn Signal Repeater Lamp - Left (BRM)





Turn Signal Repeater Lamp - Right (BRM)
