Refrigerant Pressure Sensor / Switch, HVAC

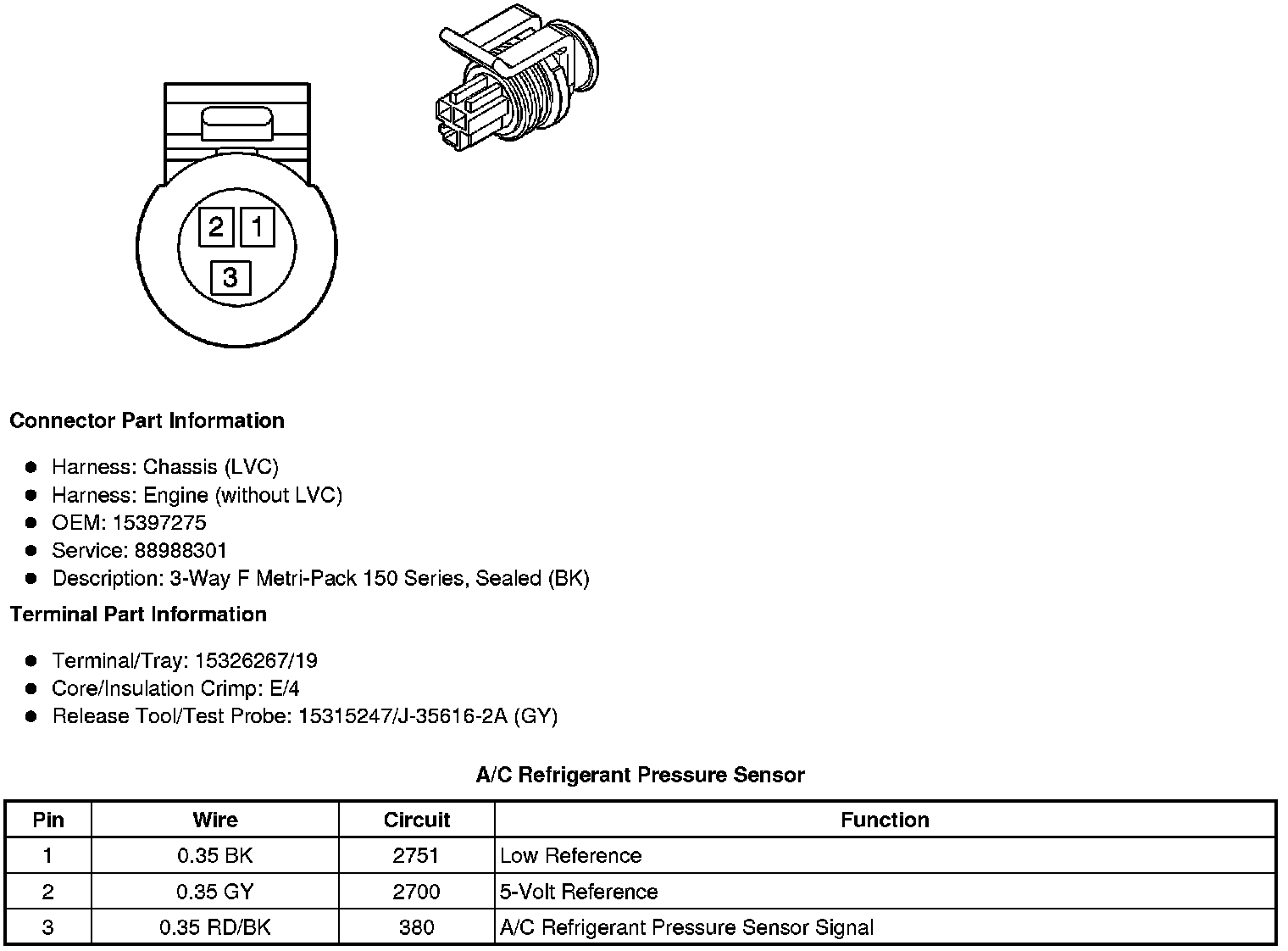

Component Connector End Views

A/C Refrigerant Pressure Sensor
