Power Window Switch




Component Connector End Views
Door Lock/Window Switch - Driver X1





Door Lock/Window Switch - Driver X2





Door Lock/Window Switch - Passenger

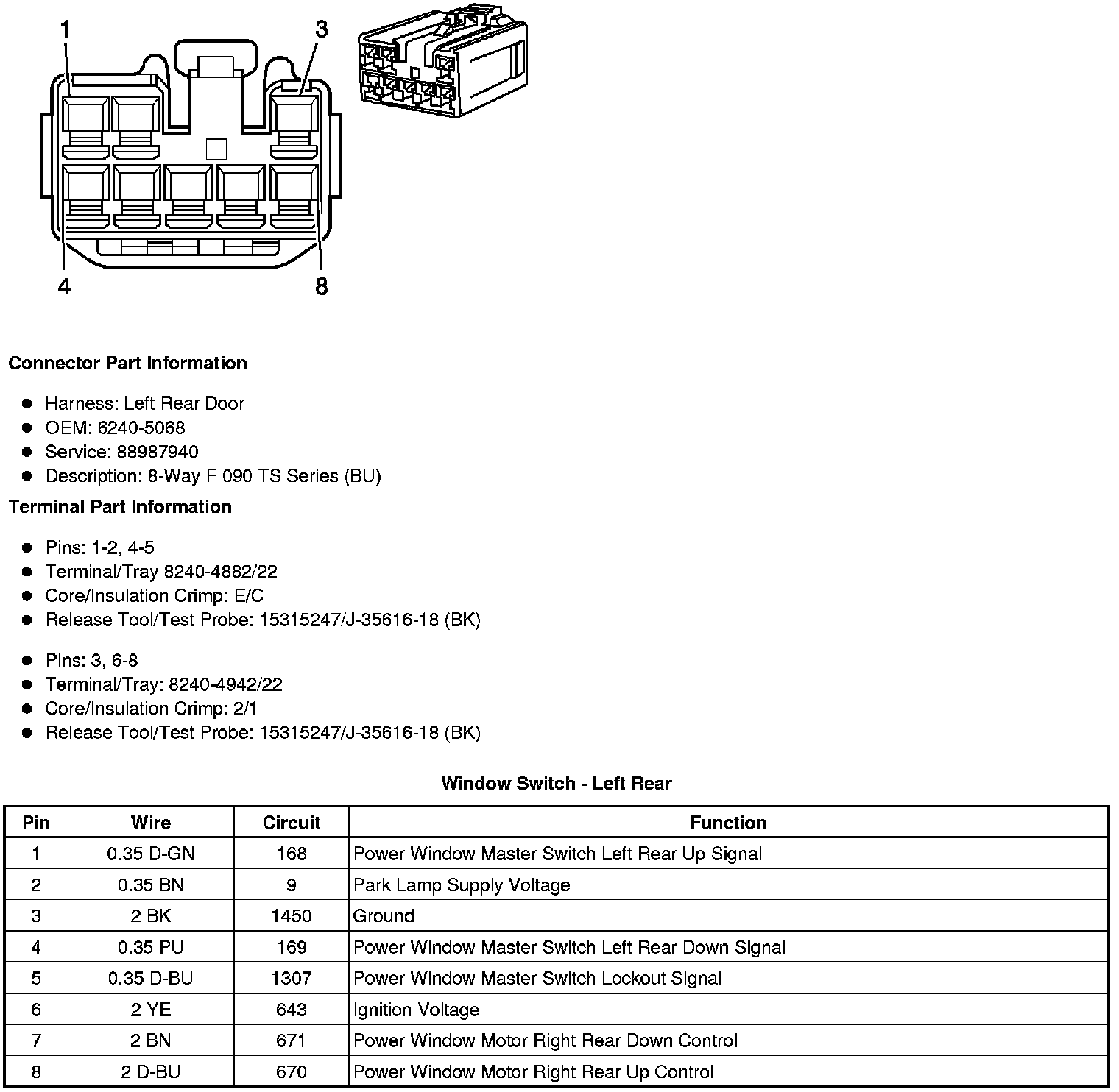

Window Switch - Left Rear





Window Switch - Right Rear
