Brake Lamp

Component Connector End Views

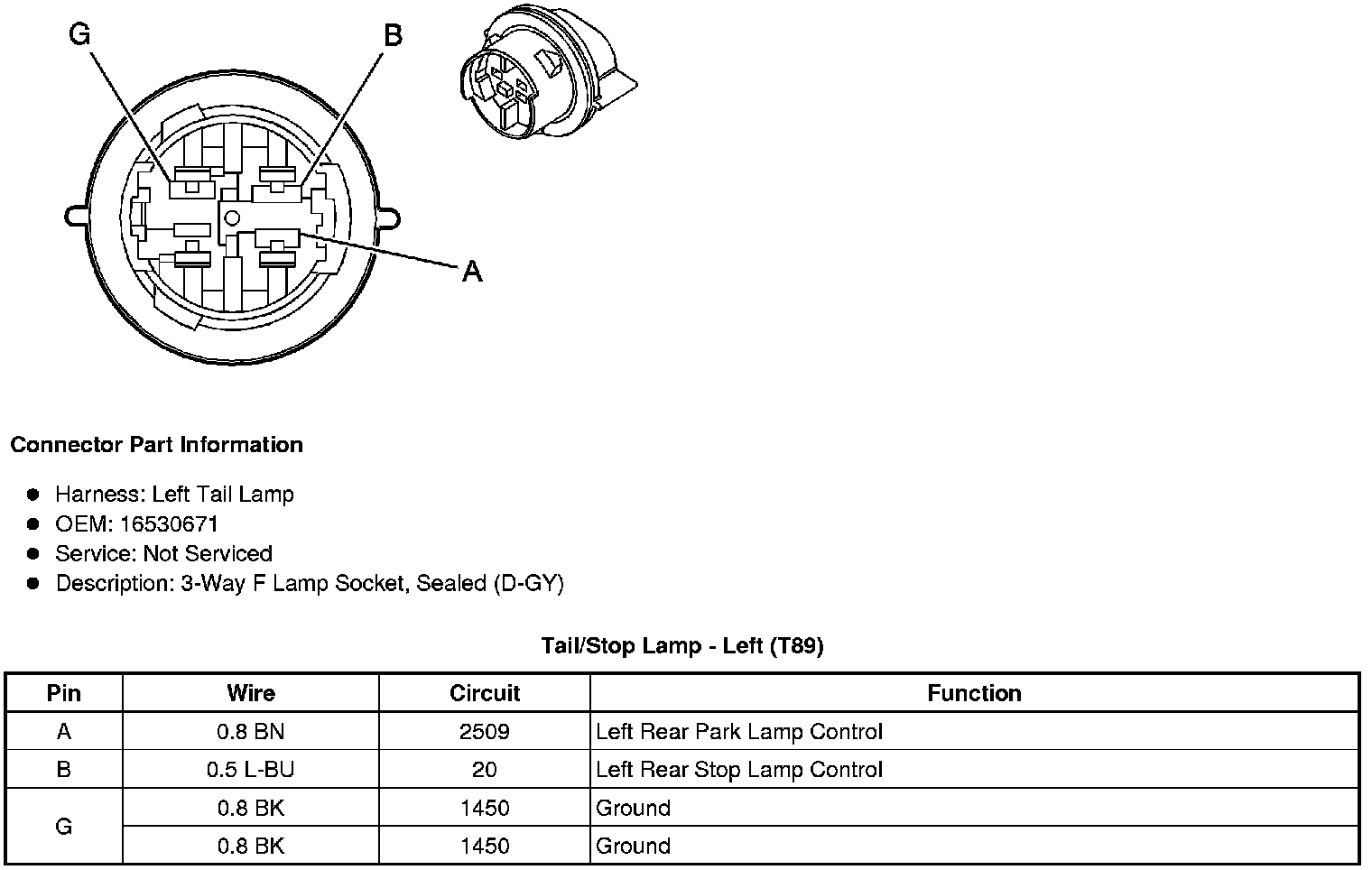

Tail/Stop Lamp - Left (T89)

Tail/Stop Lamp - Left (Truck)

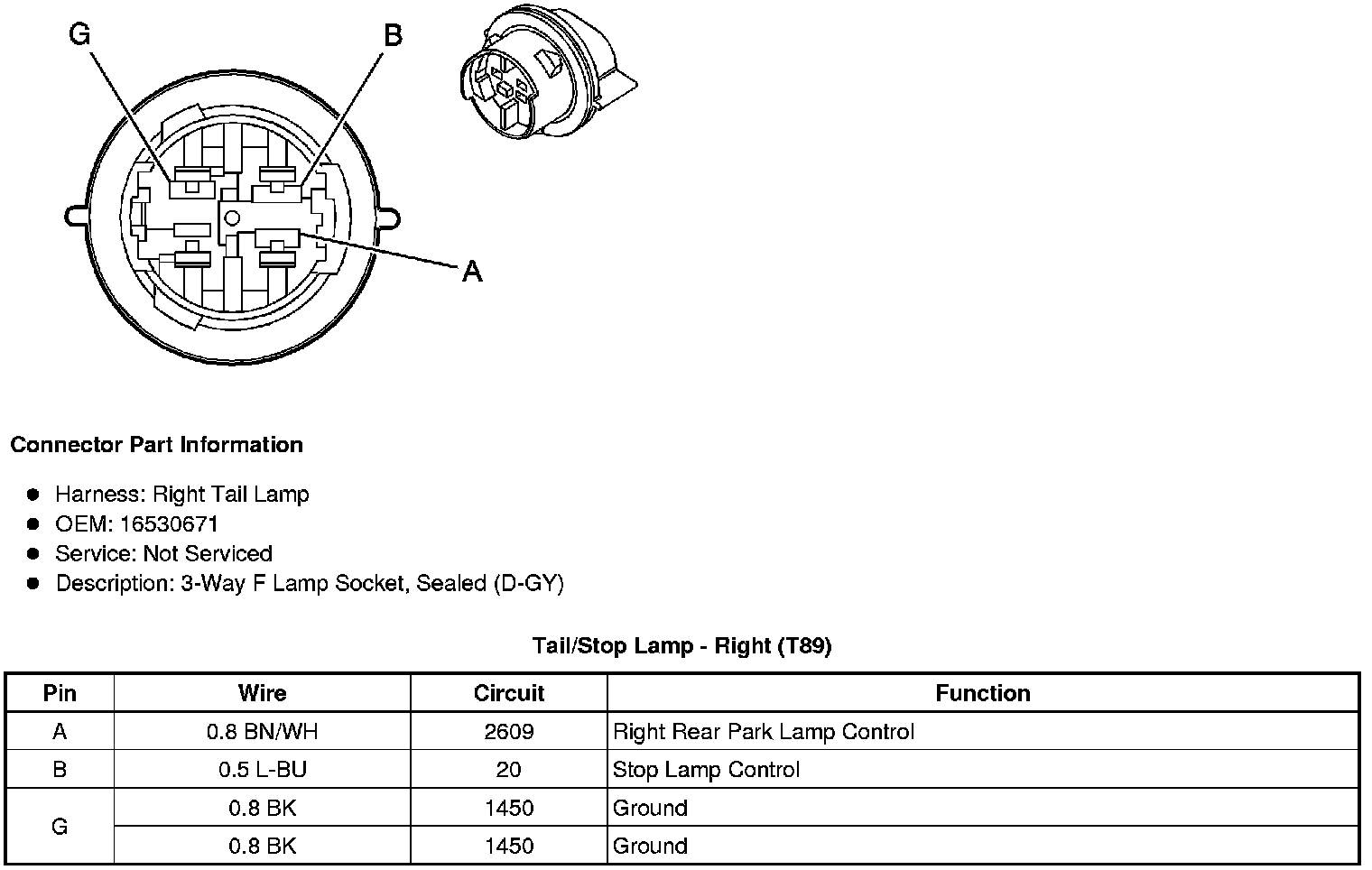

Tail/Stop Lamp - Right (T89)

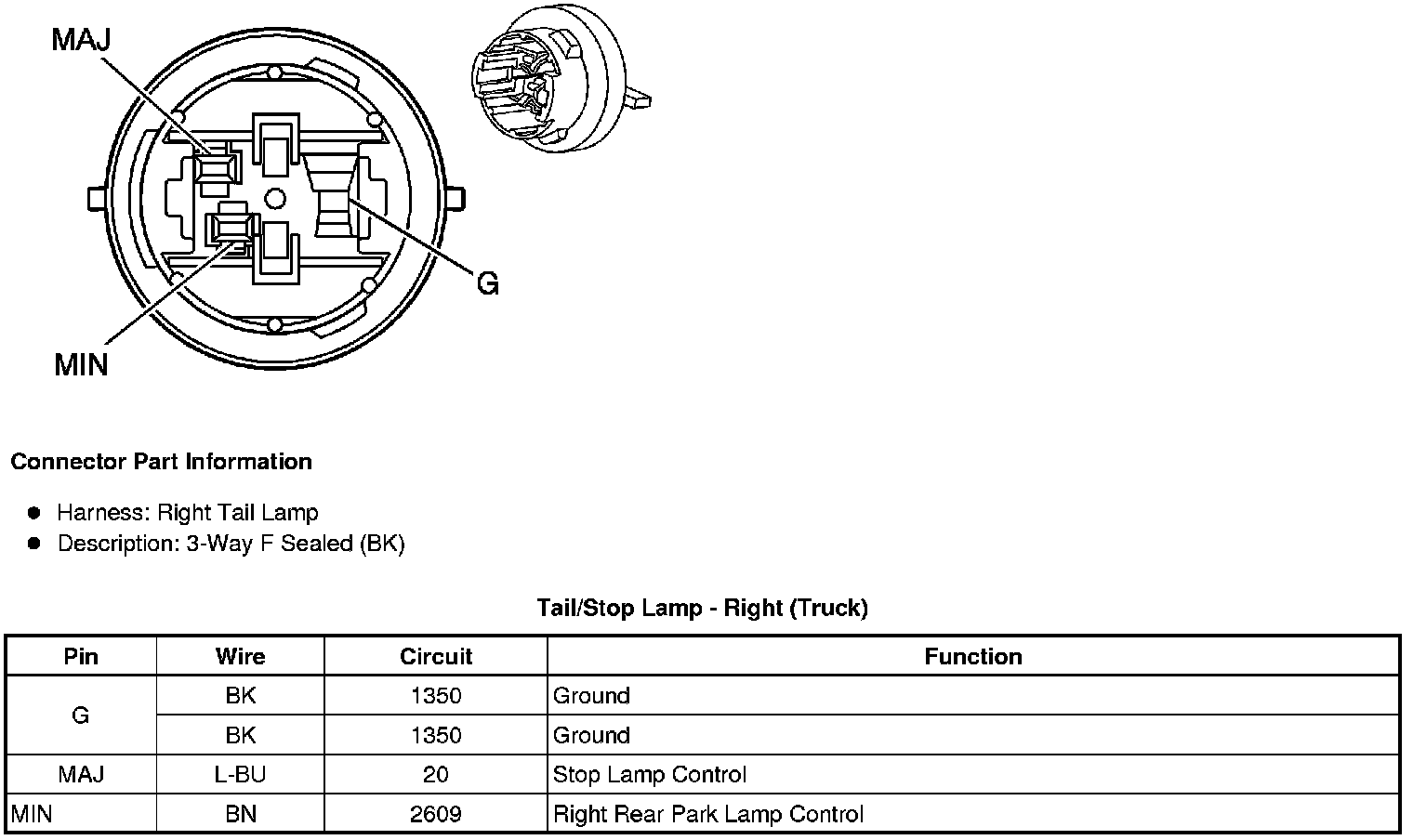

Tail/Stop Lamp - Right (Truck)

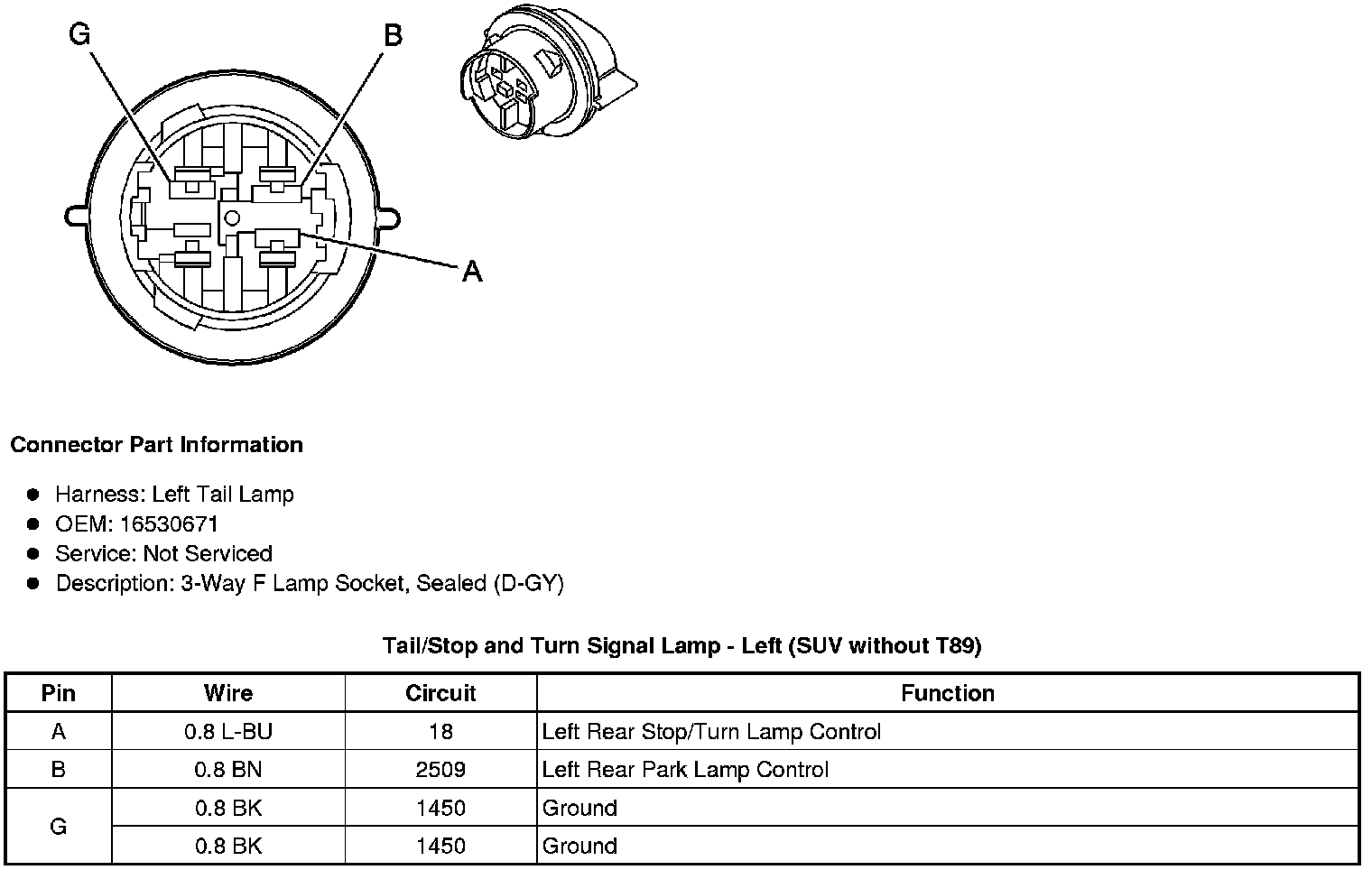

Tail/Stop Lamp and Turn Signal - Left (SUV without T89)

Tail/Stop Lamp and Turn Signal - Right (SUV without T89)
