Air Injection Pump Relay

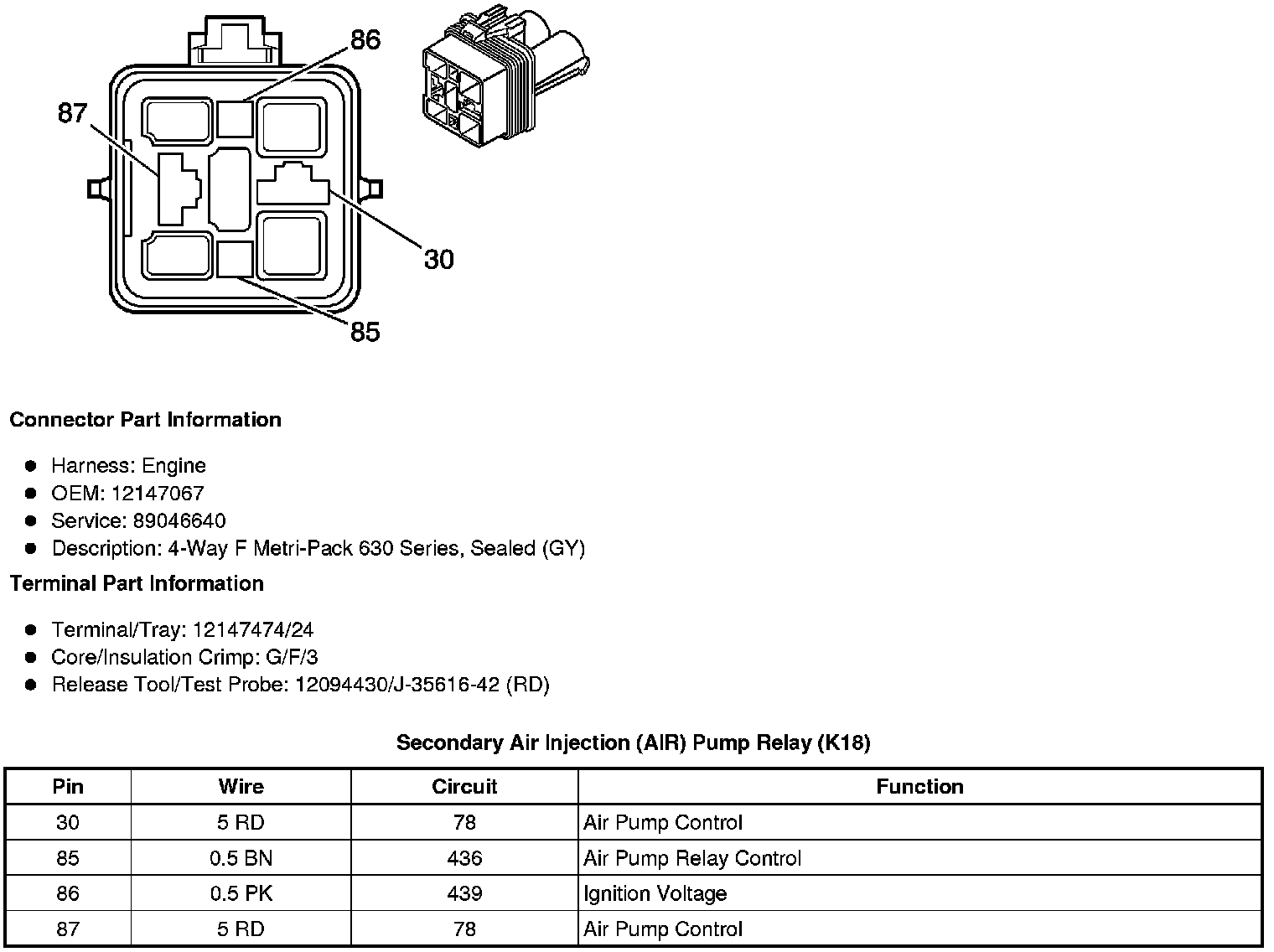

Component Connector End Views

Secondary Air Injection (AIR) Pump Relay (K18)
