SIR Schematics
WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

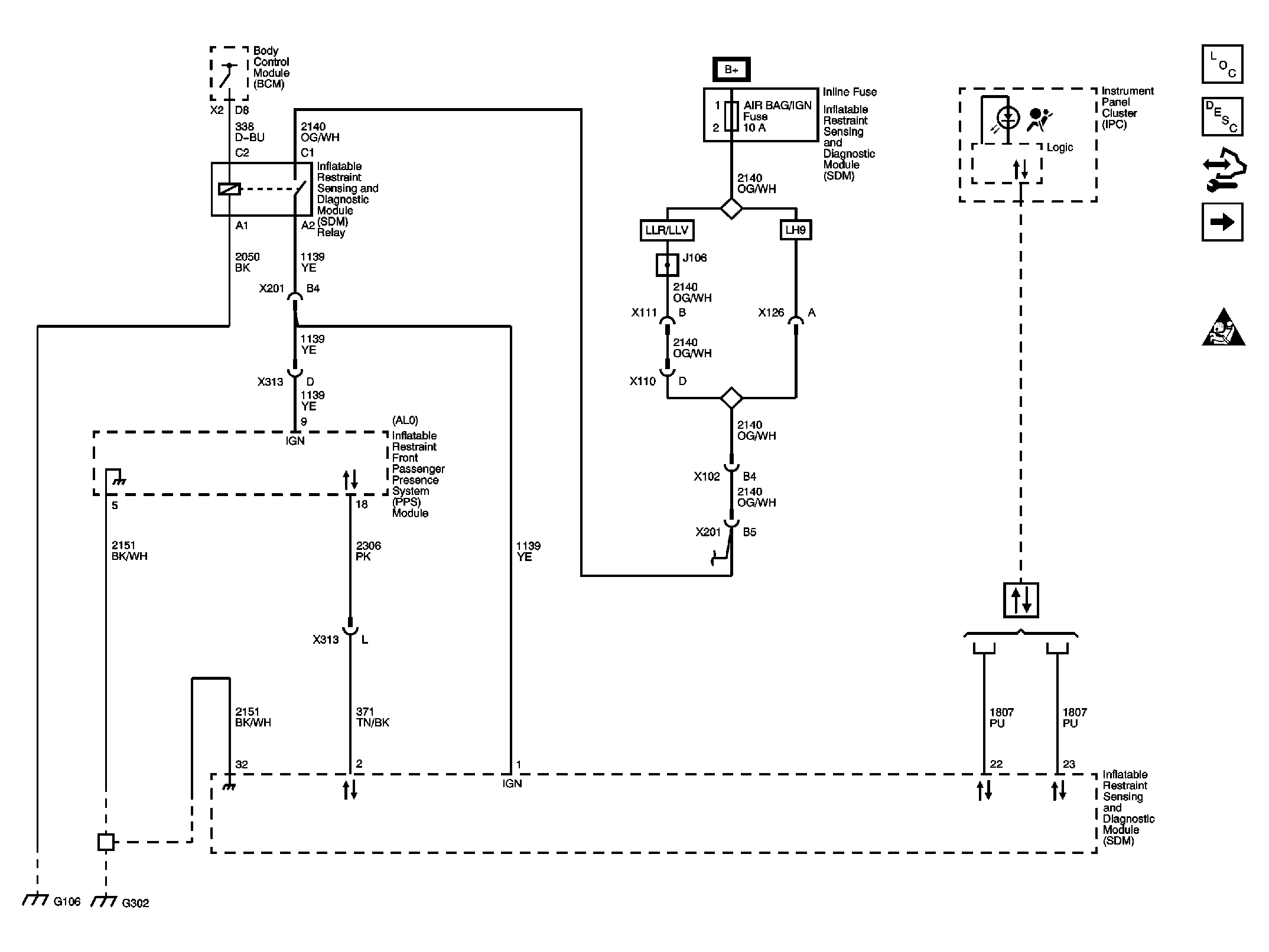

Fig 1: Power, Ground, Serial Data
Courtesy of GENERAL MOTORS CORP.

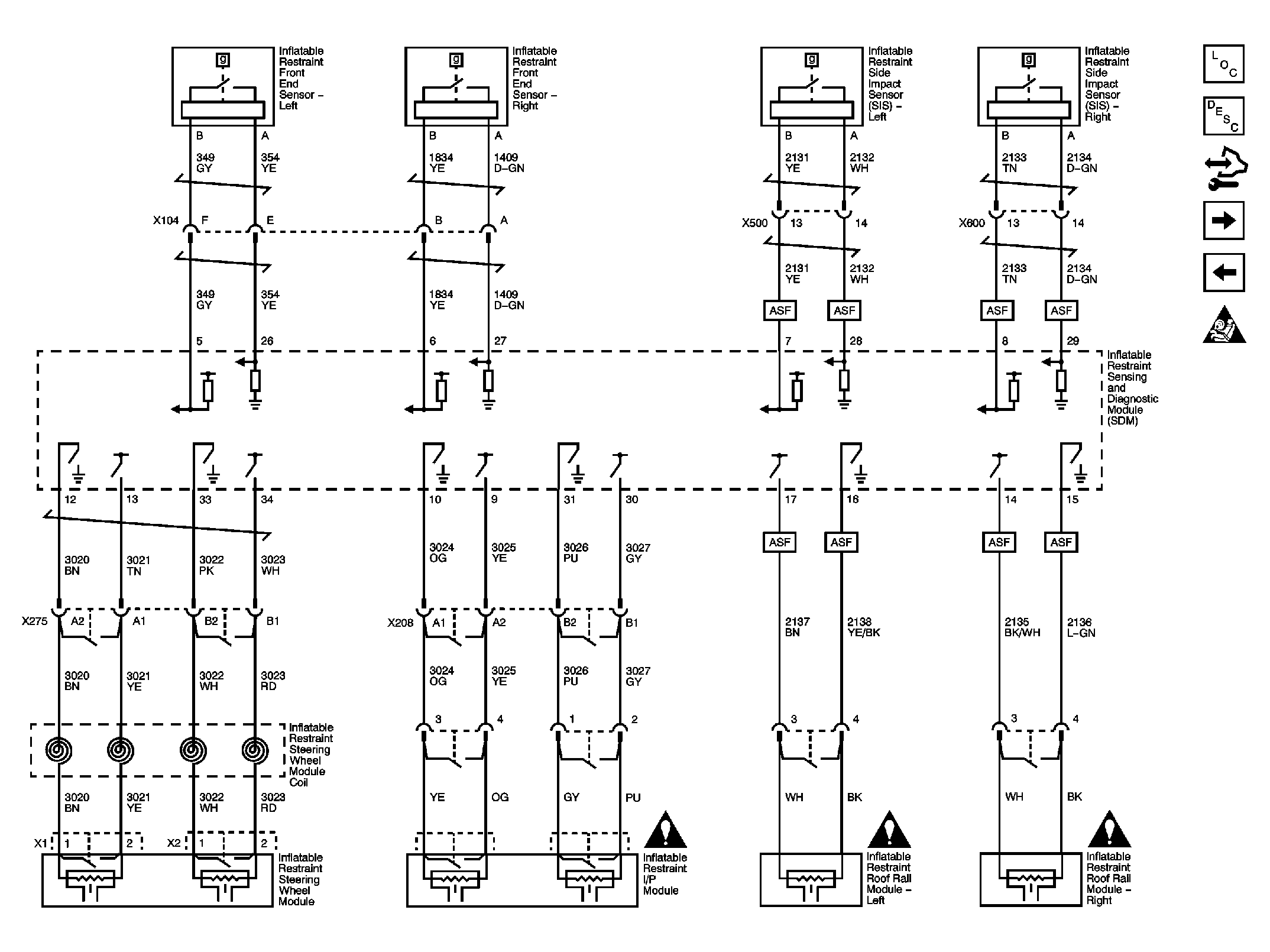

Fig 2: Impact Sensors and Modules
Courtesy of GENERAL MOTORS CORP.
Fig 3: Passenger Presence (AL0)
Courtesy of GENERAL MOTORS CORP.

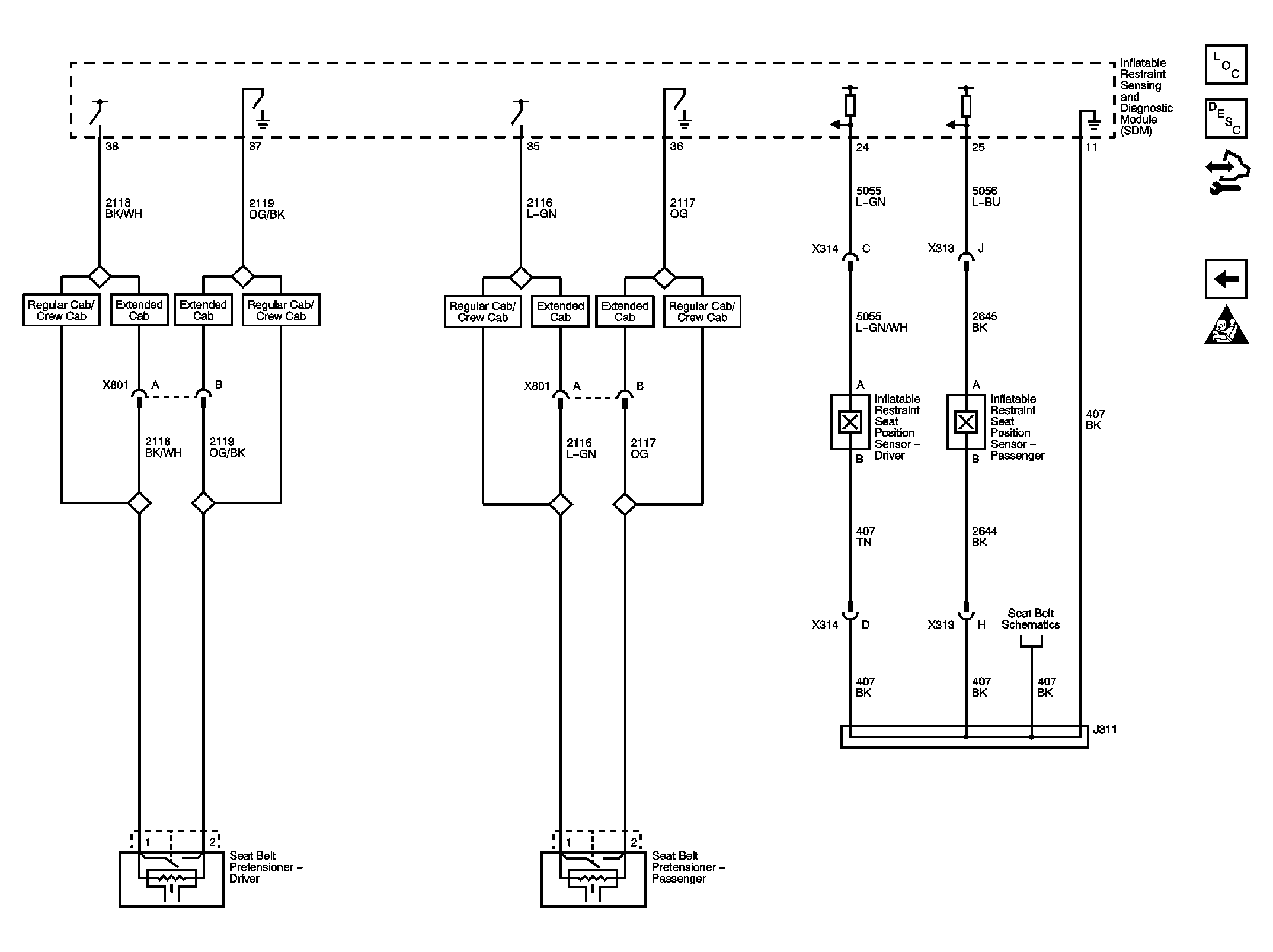

Fig 4: Seat Position Sensors and Seat Belt Pretensioners
