Body Control System Schematics

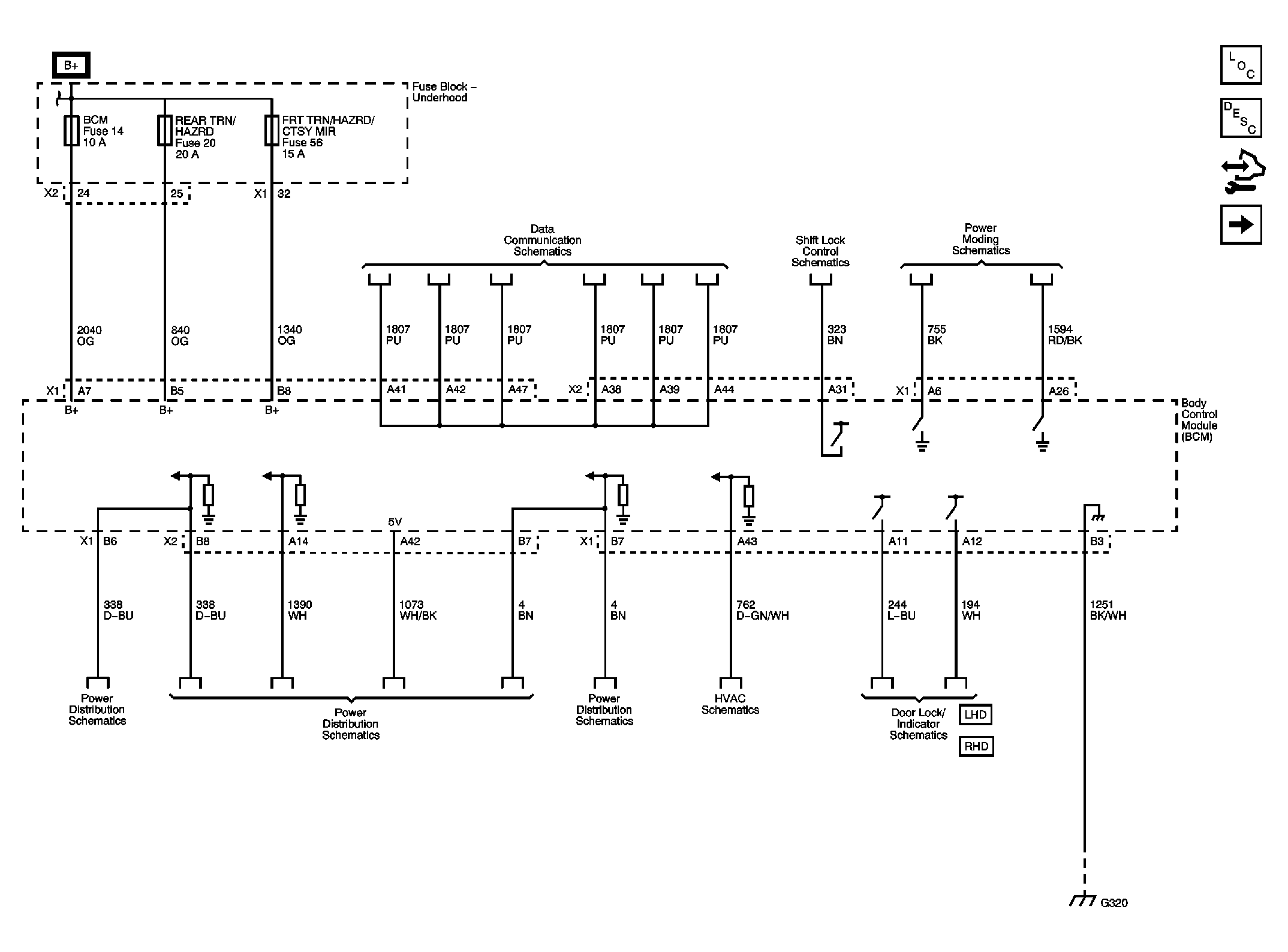

Fig 1: Power, Ground, Serial Data, and Power Moding References

Courtesy of GENERAL MOTORS CORP.

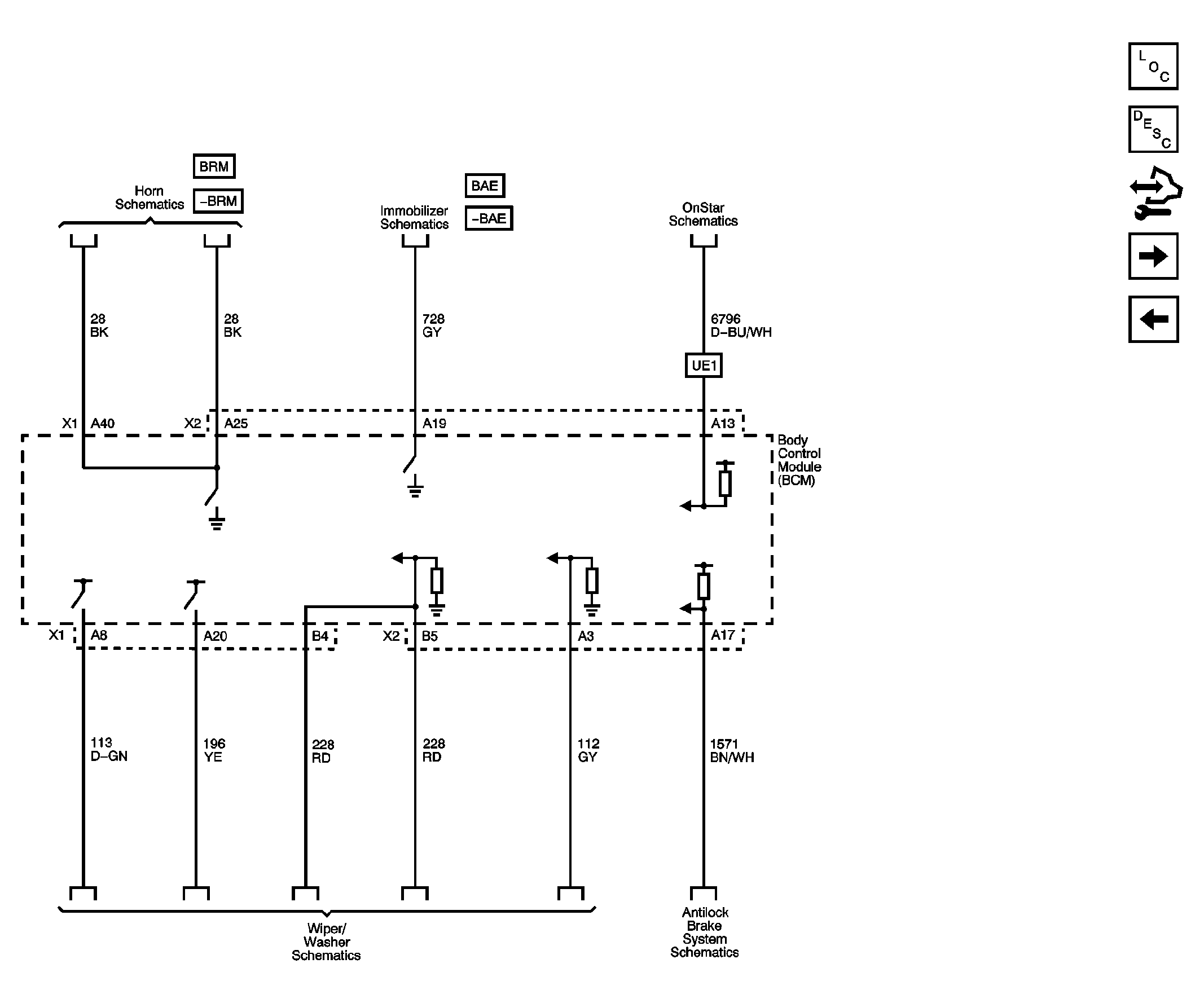

Fig 2: Antilock Brake, Horn, Theft, and Wiper/Washer References

Courtesy of GENERAL MOTORS CORP.

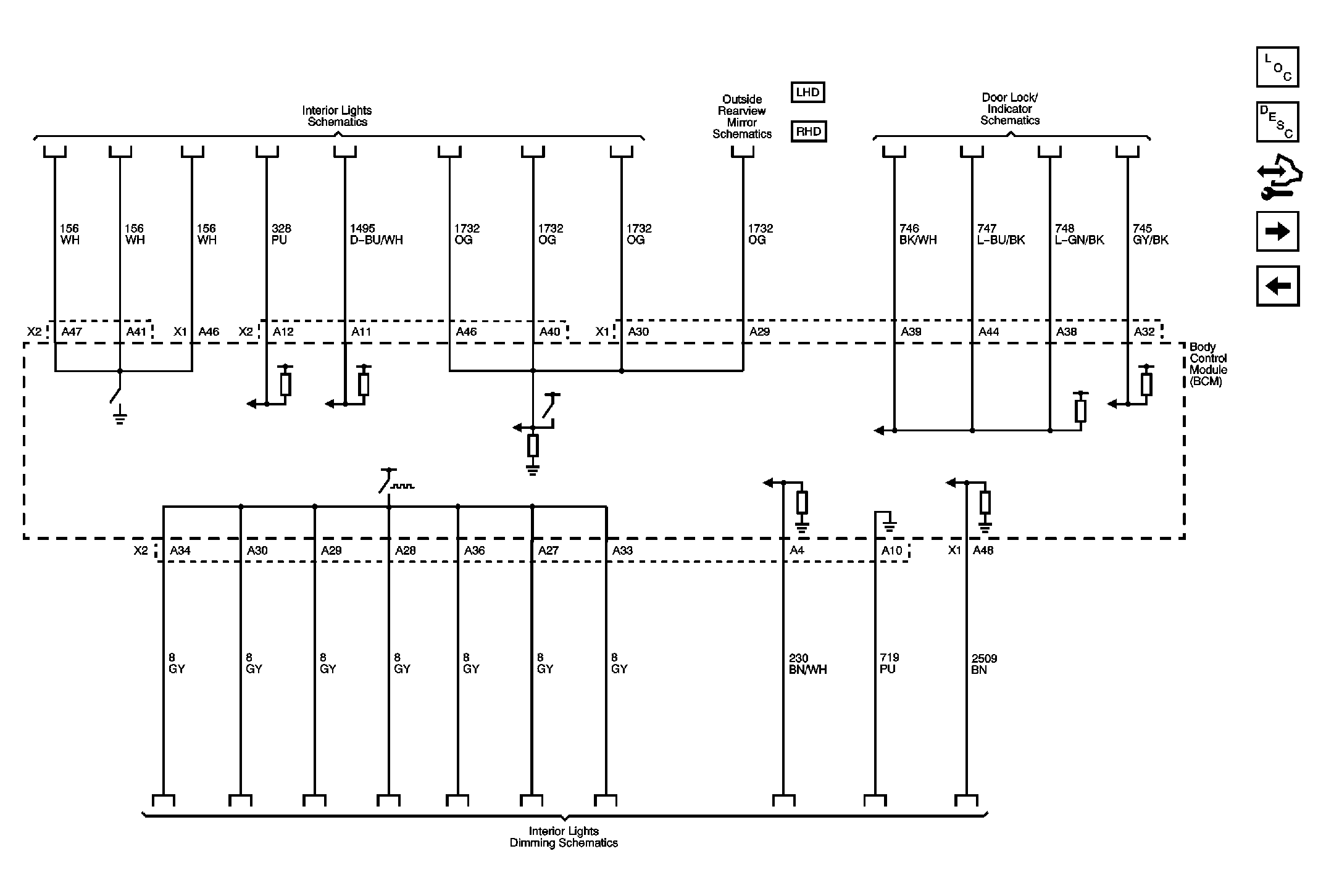

Fig 3: Vehicle Access, Interior Lights, and Interior Lights Dimming References

Courtesy of GENERAL MOTORS CORP.

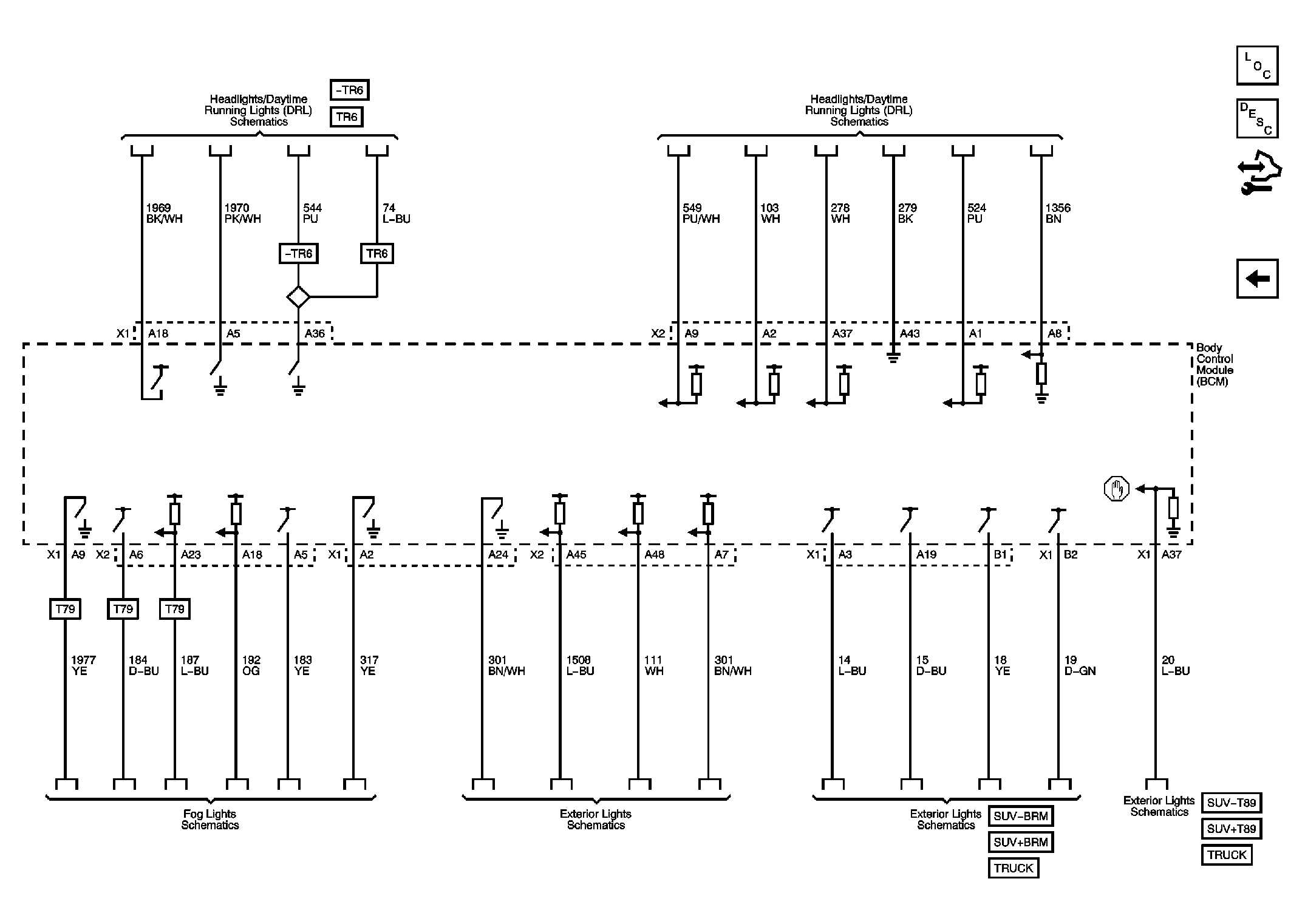

Fig 4: Exterior Lighting References

Courtesy of GENERAL MOTORS CORP.
