Engine Block Plug Removal

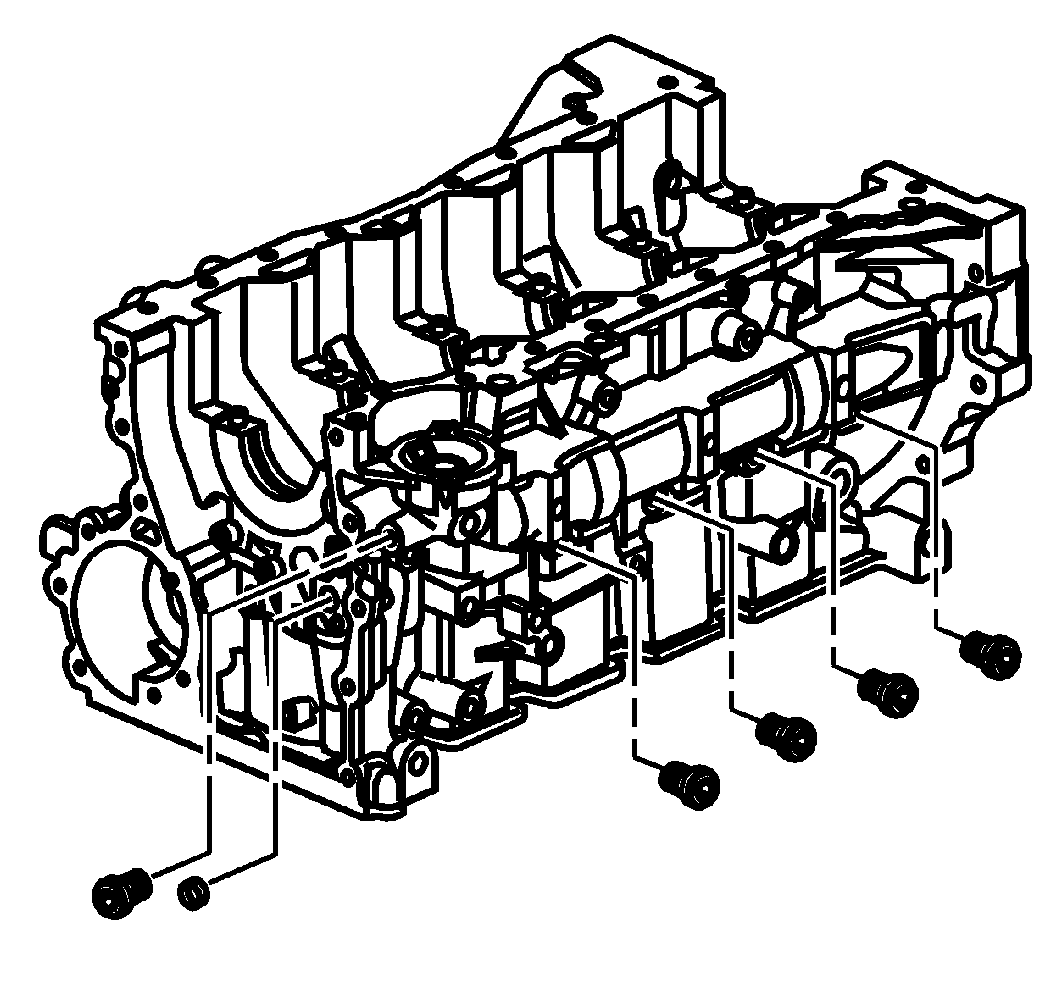

Fig 1: View Of Engine Block Oil Gallery Plugs

GM858198

Courtesy of GENERAL MOTORS CORP.

Remove the engine block oil gallery plugs.

Fig 2: View Of Engine Block Coolant Plug

GM858200

Courtesy of GENERAL MOTORS CORP.

Remove the engine block coolant plug.

Fig 3: Crankshaft Position Sensor

GM1875393

Courtesy of GENERAL MOTORS CORP.

Remove the crankshaft position sensor.

Fig 4: View Of Knock Sensor

GM1548258

Courtesy of GENERAL MOTORS CORP.

Remove the knock sensor.

Fig 5: View Of EVAP Solenoid

GM858206

Courtesy of GENERAL MOTORS CORP.

Remove the EVAP solenoid.

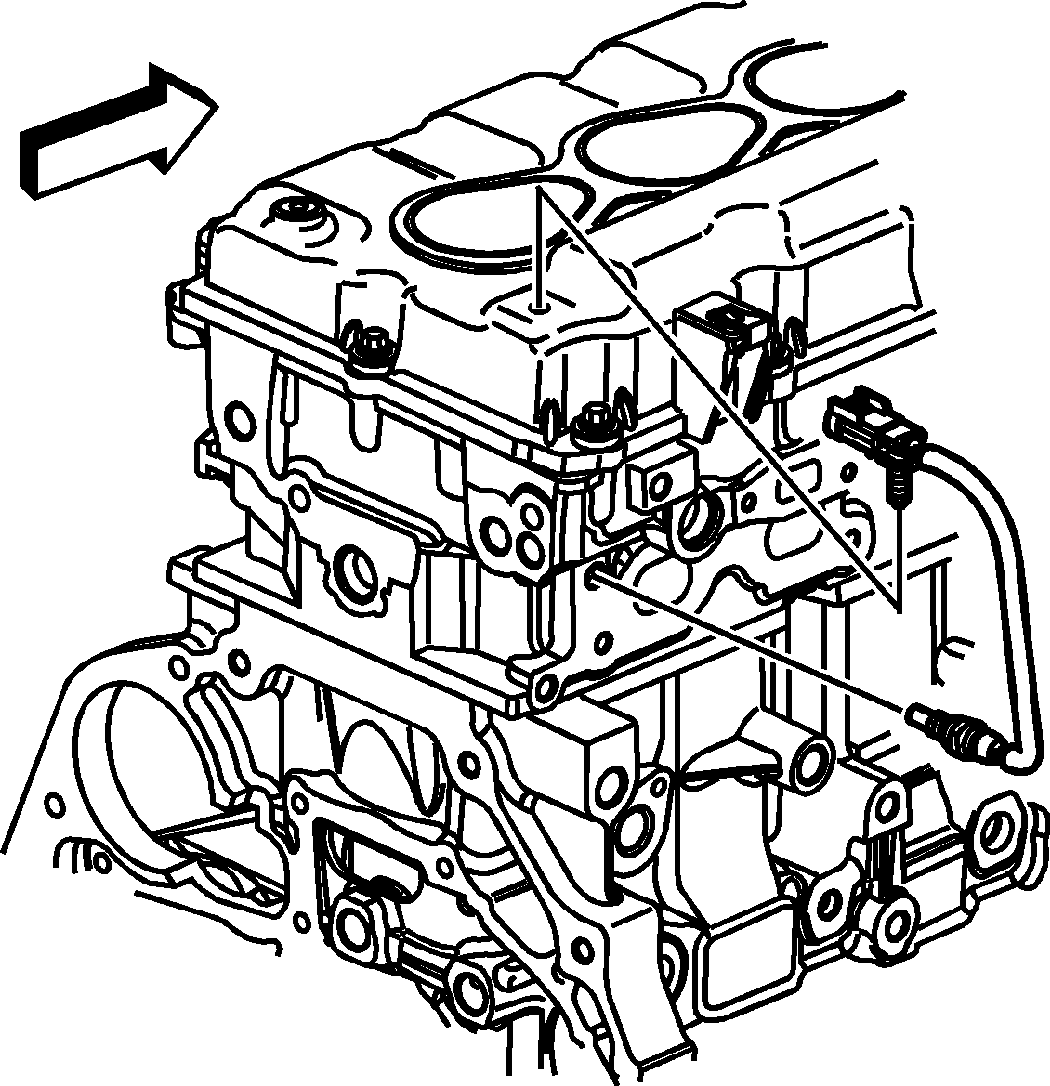

Fig 6: View Of Coolant Temperature Sensor

GM954094

Courtesy of GENERAL MOTORS CORP.

Remove the coolant temperature sensor.

Fig 7: View Of Oil Pressure Switch

GM858211

Courtesy of GENERAL MOTORS CORP.

Remove the oil pressure switch.
