Input Speed Sensor Installation




Input Speed Sensor Installation




1. Inspect the input speed sensor (ISS) assembly for the following conditions:

* Cracked or damaged housing
* Worn, broken or missing harness brackets; replace the ISS assembly if necessary
* Damaged or worn wining or electrical connector
* Loose, missing or damaged mounting bolt insert




2. Remove the ISS O-ring (249) and discard.

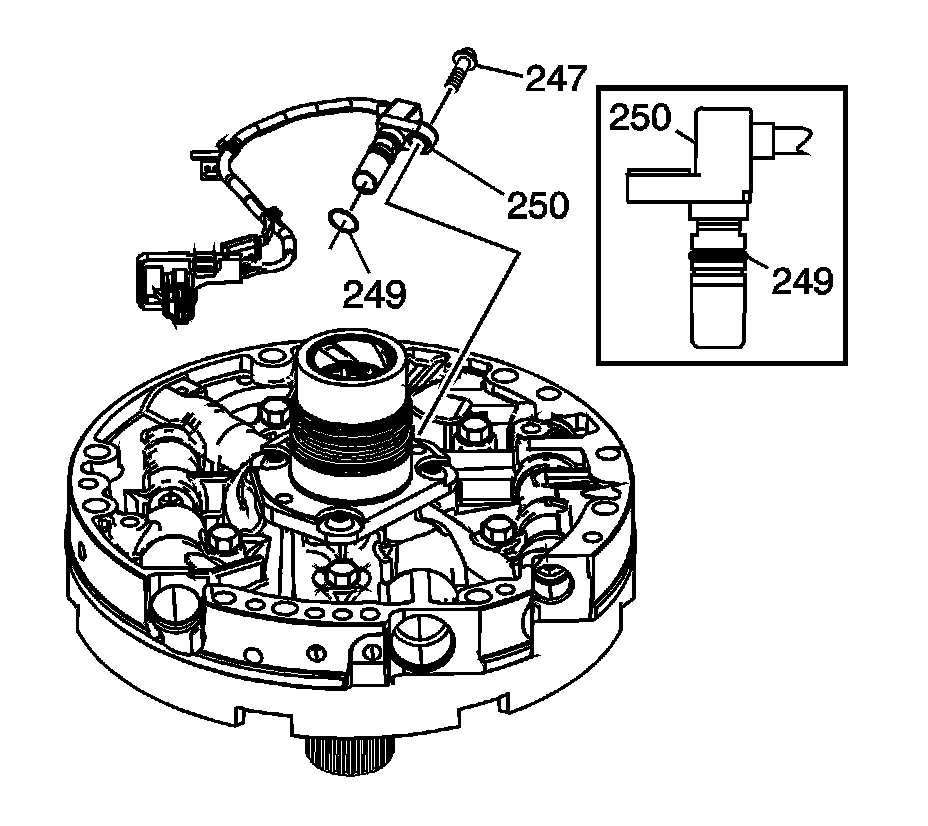

3. Lubricate NEW O-ring (249) with transmission fluid and position the O-ring as shown.
4. Insert the ISS (250) into oil pump ISS bore and fully seat.
5. Align ISS bolt hole insert with the oil pump mounting hole.

Caution: Refer to Fastener Caution (Fastener Caution).

6. Install bolt (247). Tighten the bolt to 9-11 Nm (6.6-8.1 lb ft).





Note: Ensure the ISS brackets securely fasten the wiring harness to the pump housing.

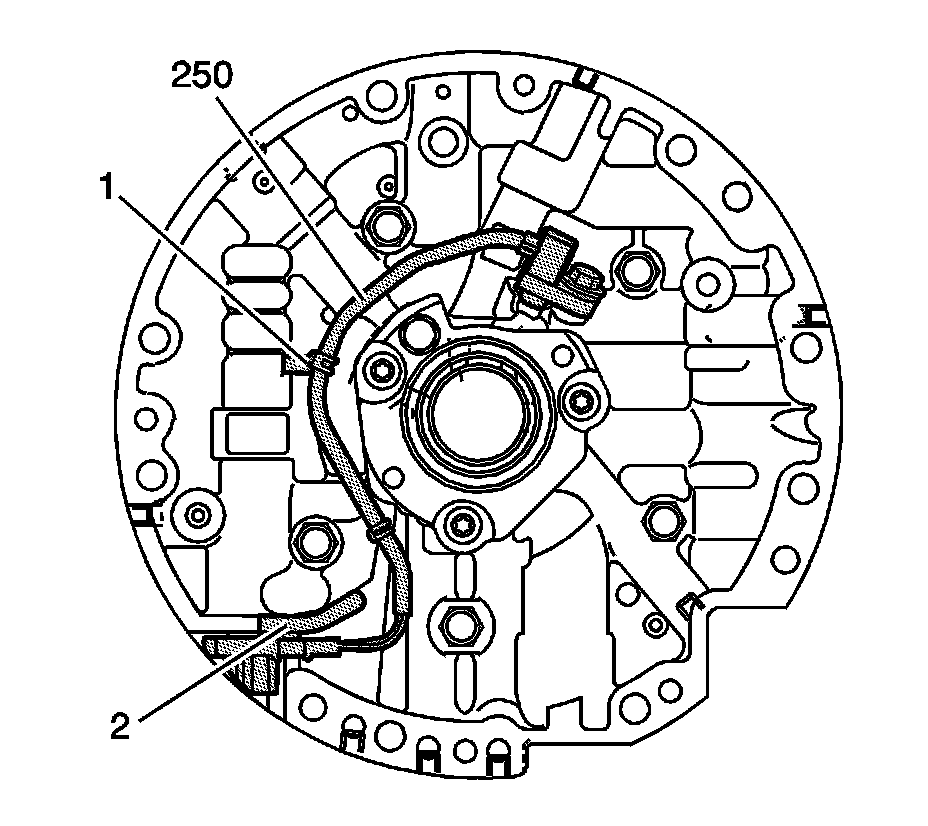

7. Route the ISS assembly (250) wire harness as shown. Install harness bracket #1 and #2 in the locations shown. Ensure the wire harness lays flat against the pump housing.
