Fuel Pressure Control Module: Diagrams

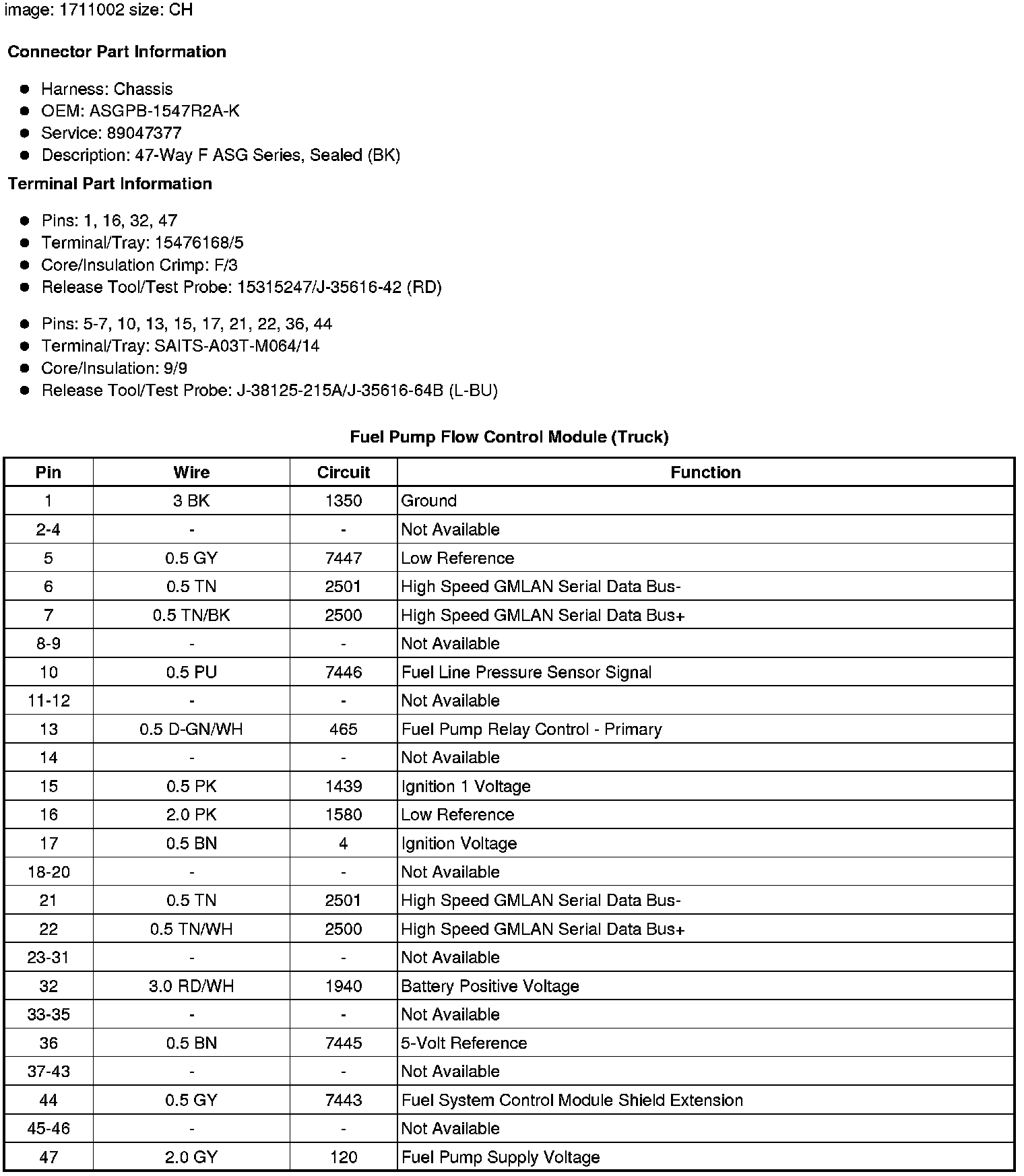

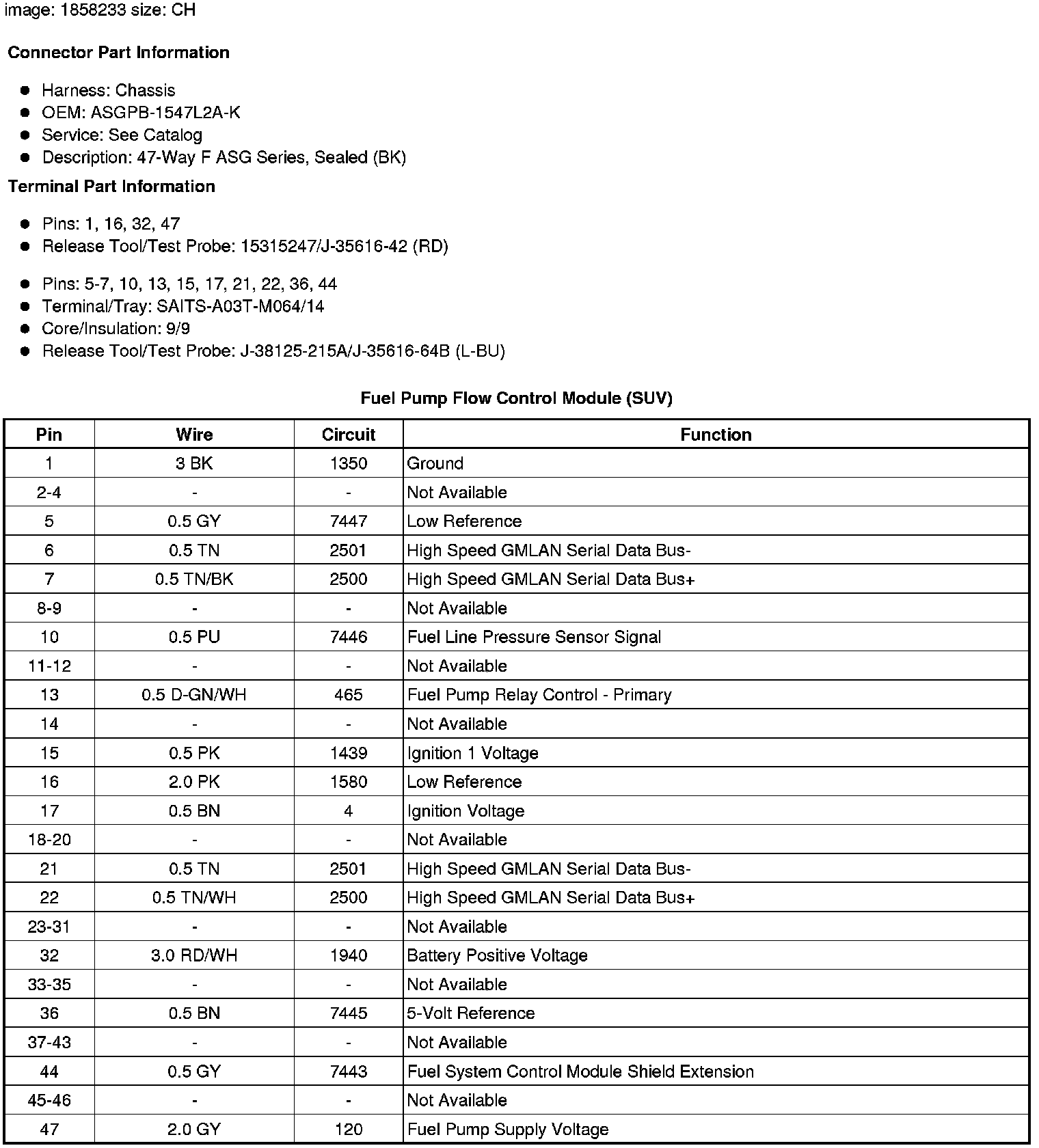

Component Connector End ViewsFuel Pump Flow Control Module (SUV)Fuel Pump Flow Control Module (Truck)
