Crankshaft Position Sensor: Diagrams

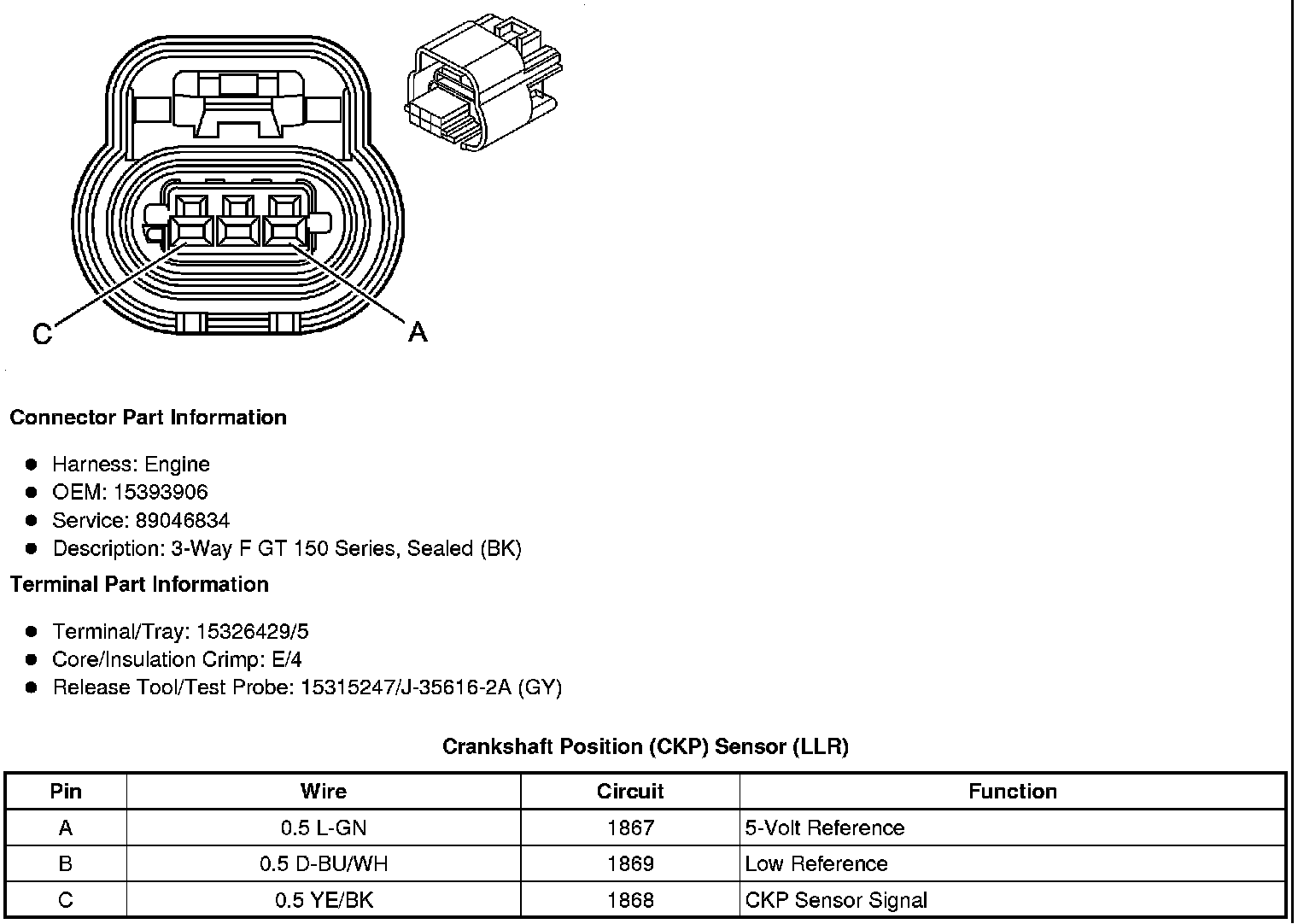

Component Connector End ViewsCrankshaft Position (CKP) Sensor (LLR)
