Transmission Mode Switch, A/T

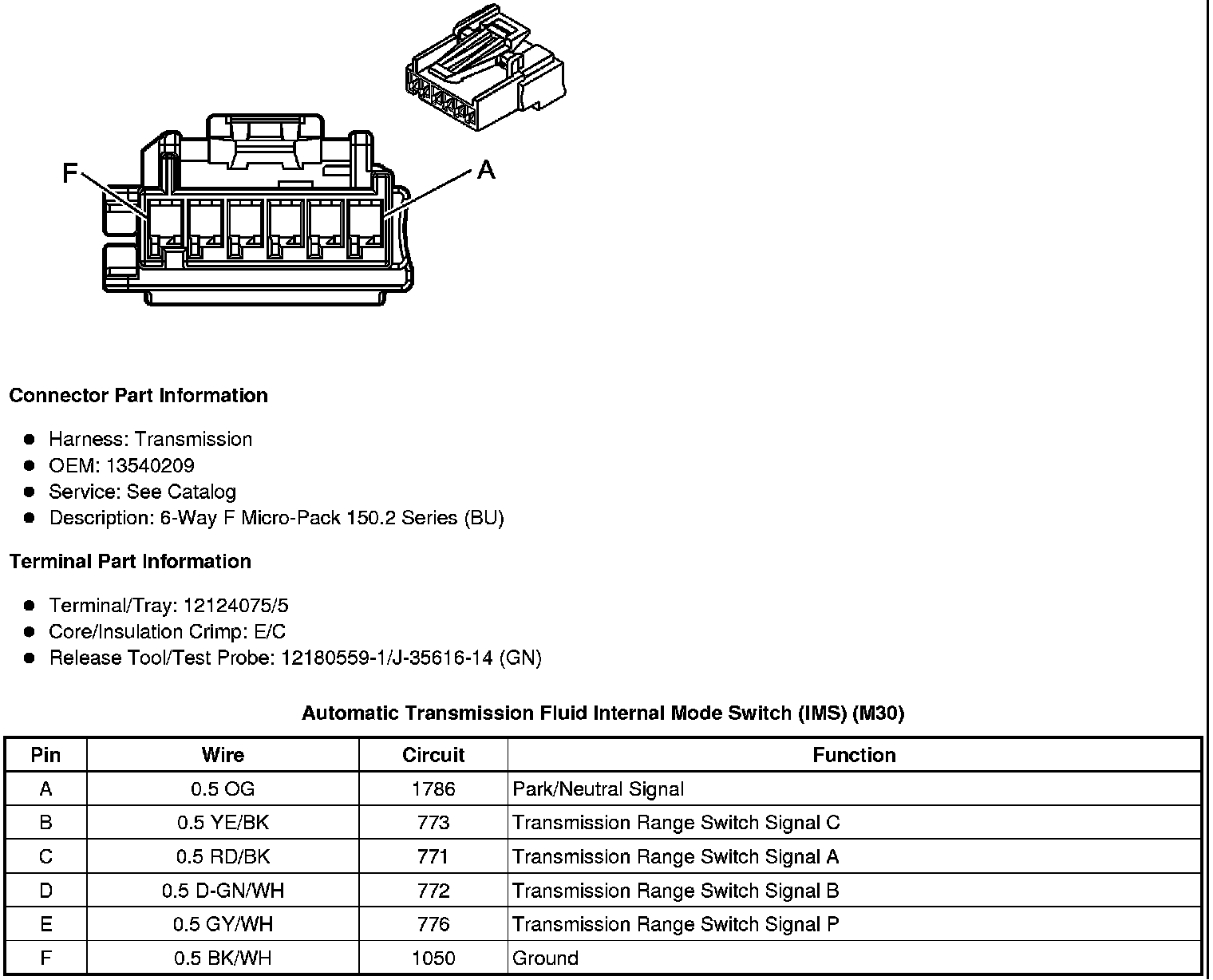

Component Connector End Views

Automatic Transmission Fluid Internal Mode Switch (IMS) (M30)
