Power Door Lock Switch




Component Connector End Views

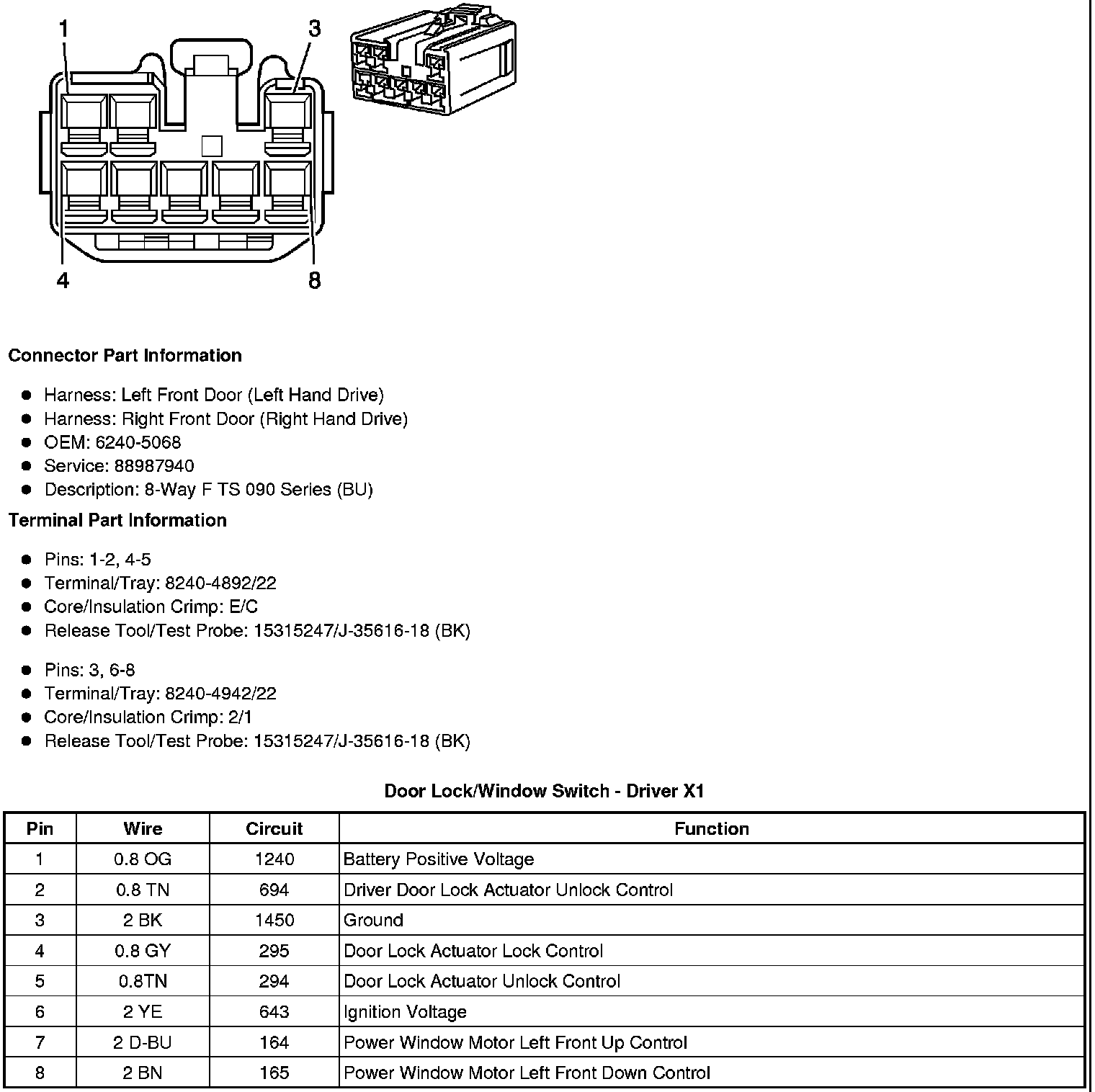

Door Lock/Window Switch - Driver X1

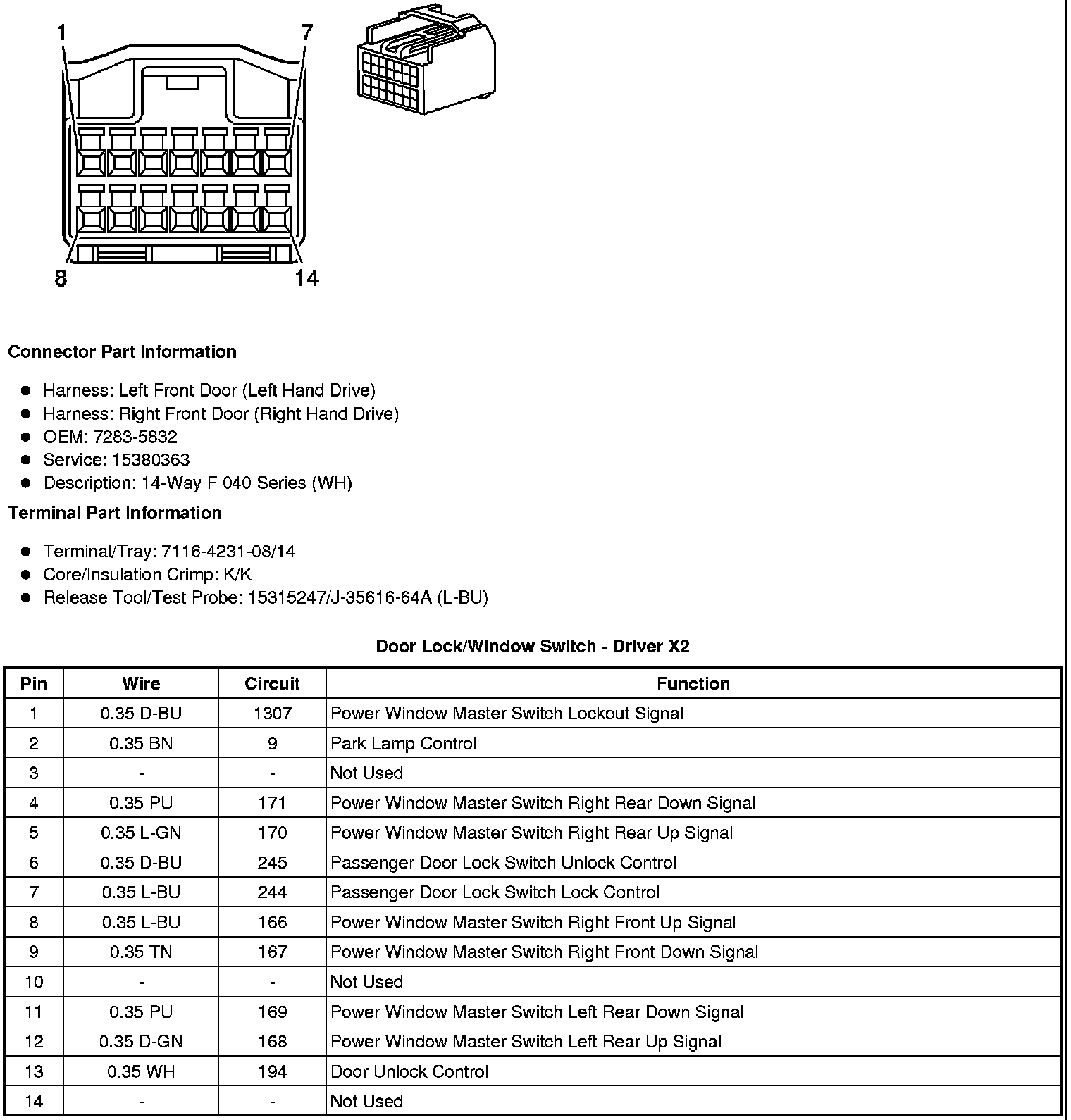

Door Lock/Window Switch - Driver X2

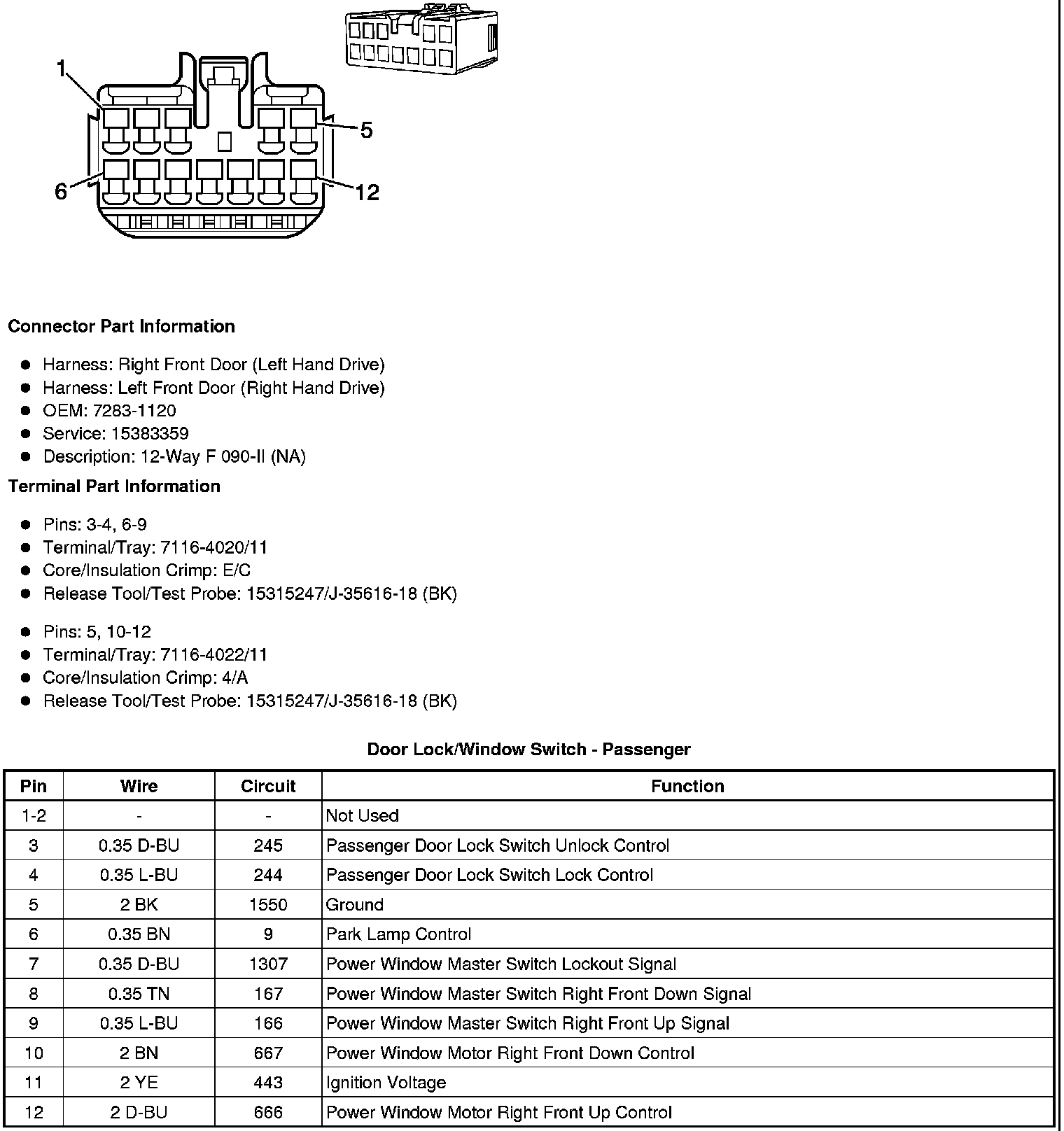

Door Lock/Window Switch - Passenger
