Front Seat Adjuster Replacement

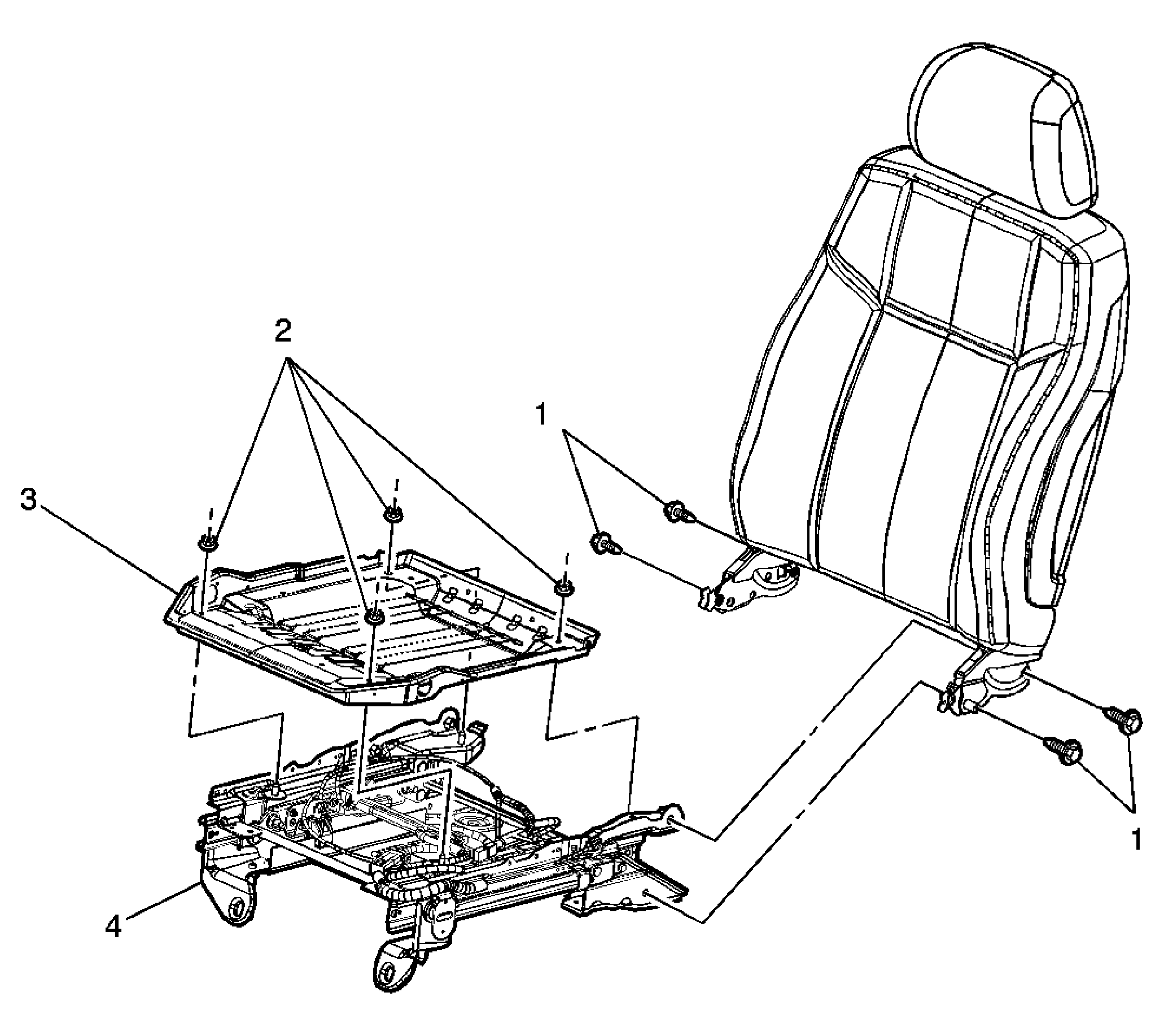

Fig 1: Seat Adjuster Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front bucket seat. Refer to Front Seat Replacement - Bucket . Remove the seat cushion trim cover and pad. Refer to Seat Cushion Trim Cover and Pad Replacement .
1	Seat Back Frame Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft)
2	Seats Cushion Frame Nut Tighten: 25 N.m (18 lb ft)
3	Seat Cushion Frame Assembly Tip: Remove the wiring harness retainers.
4	Seat Adjuster Assembly Tip: If replacing the seat adjuster mechanism, remove the seat position sensor and retain to use on the new adjuster. Refer to Inflatable Restraint Seat Position Sensor Replacement .
