Rear Side Door Window Switch Replacement

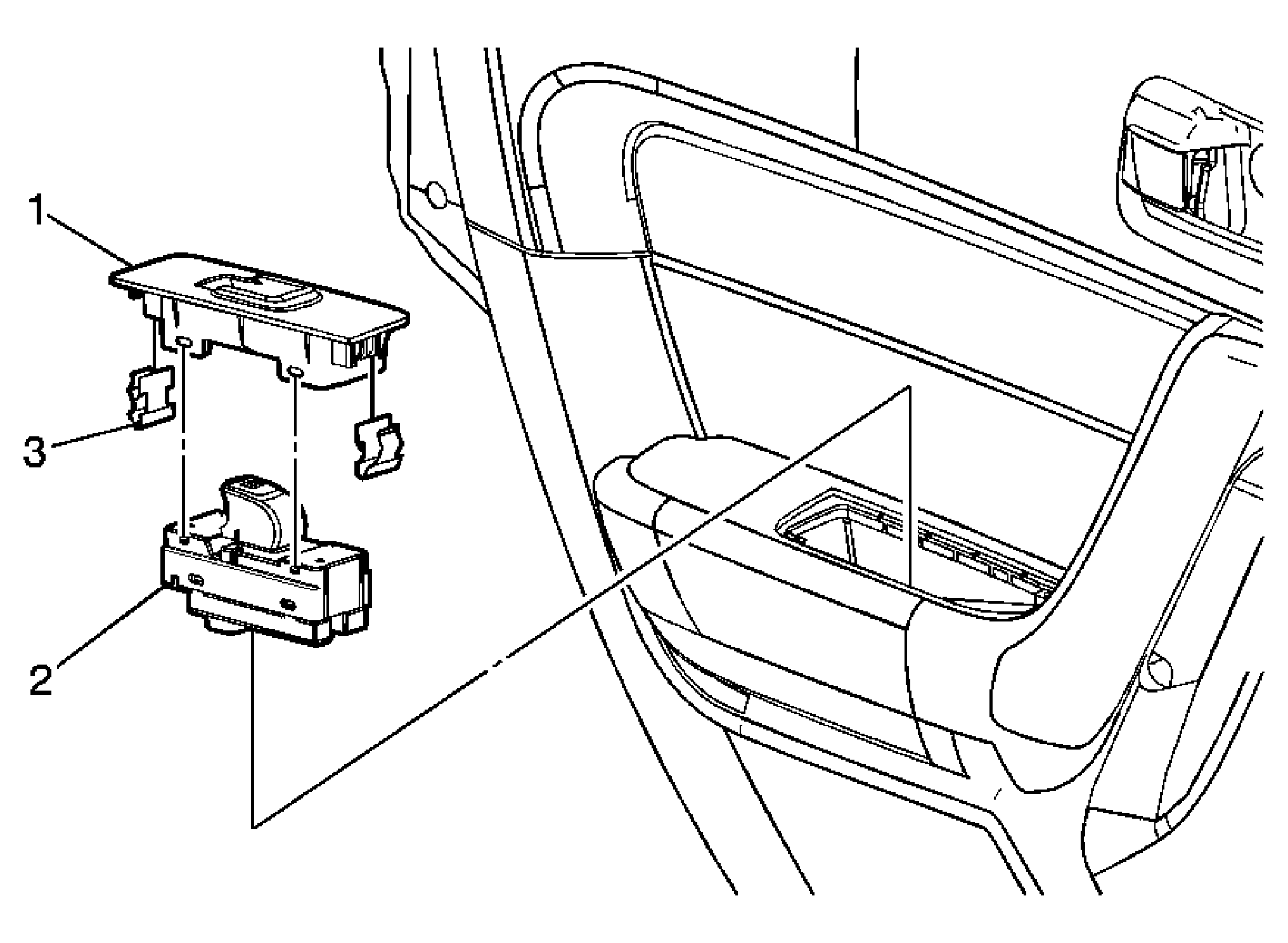

Fig 1: Power Window Switch Replacement - Rear Door
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Rear Side Door Accessory Switch Mount Plate Assembly
2
Front Side Door Accessory Switch Assembly
3
Switch Assembly Rear Side Door Accessory Clip
Tip:
Disconnect the electrical connector.
