Engine - Left Rear
Harness Routing Views

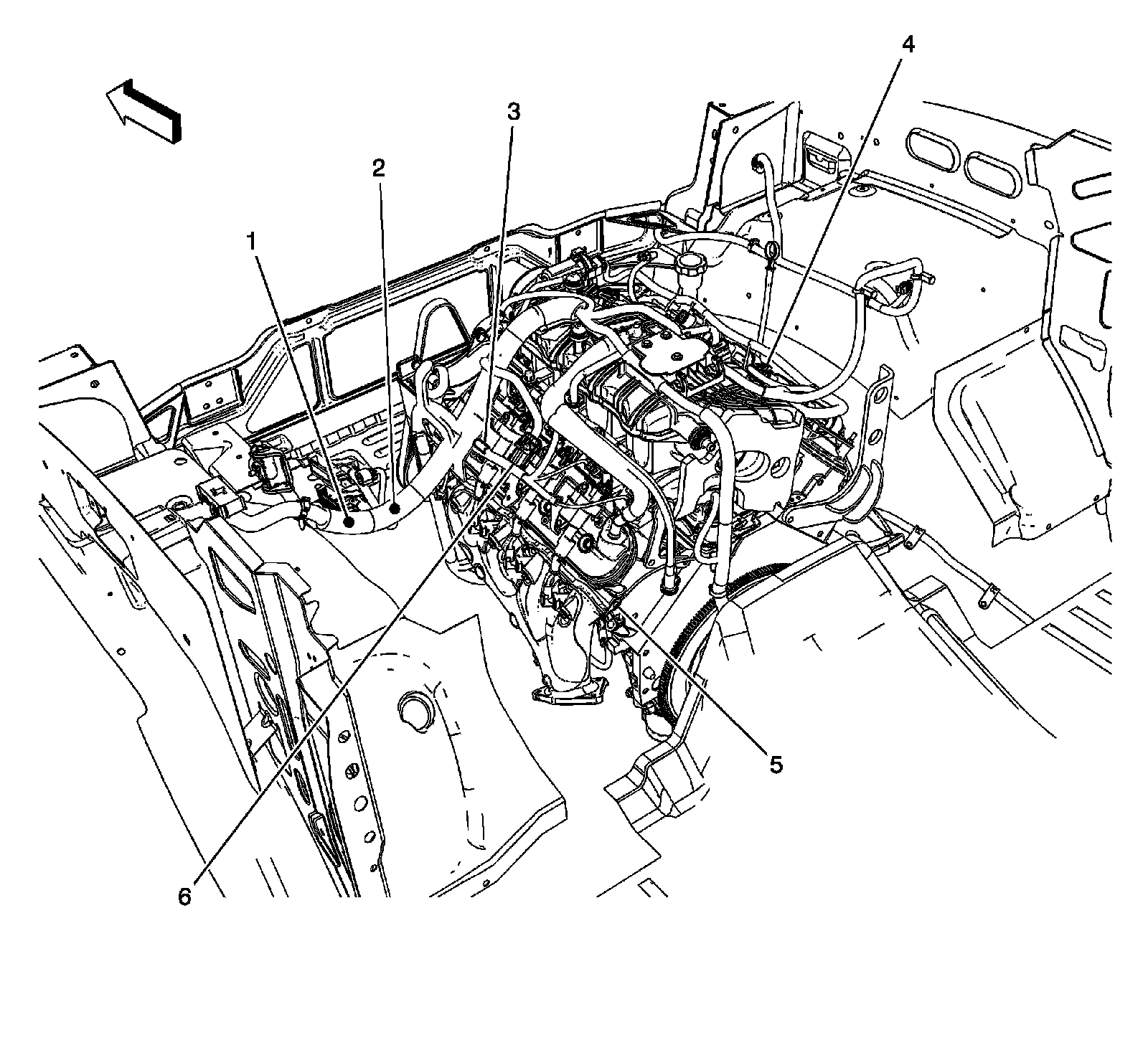

Engine - Left Rear
1
- J102
2
- J130
3
- J103
4
- X158
5
- G104
6
- X148
