Seat Temperature Control Module: Locations




Passenger Compartment/Roof Component Views

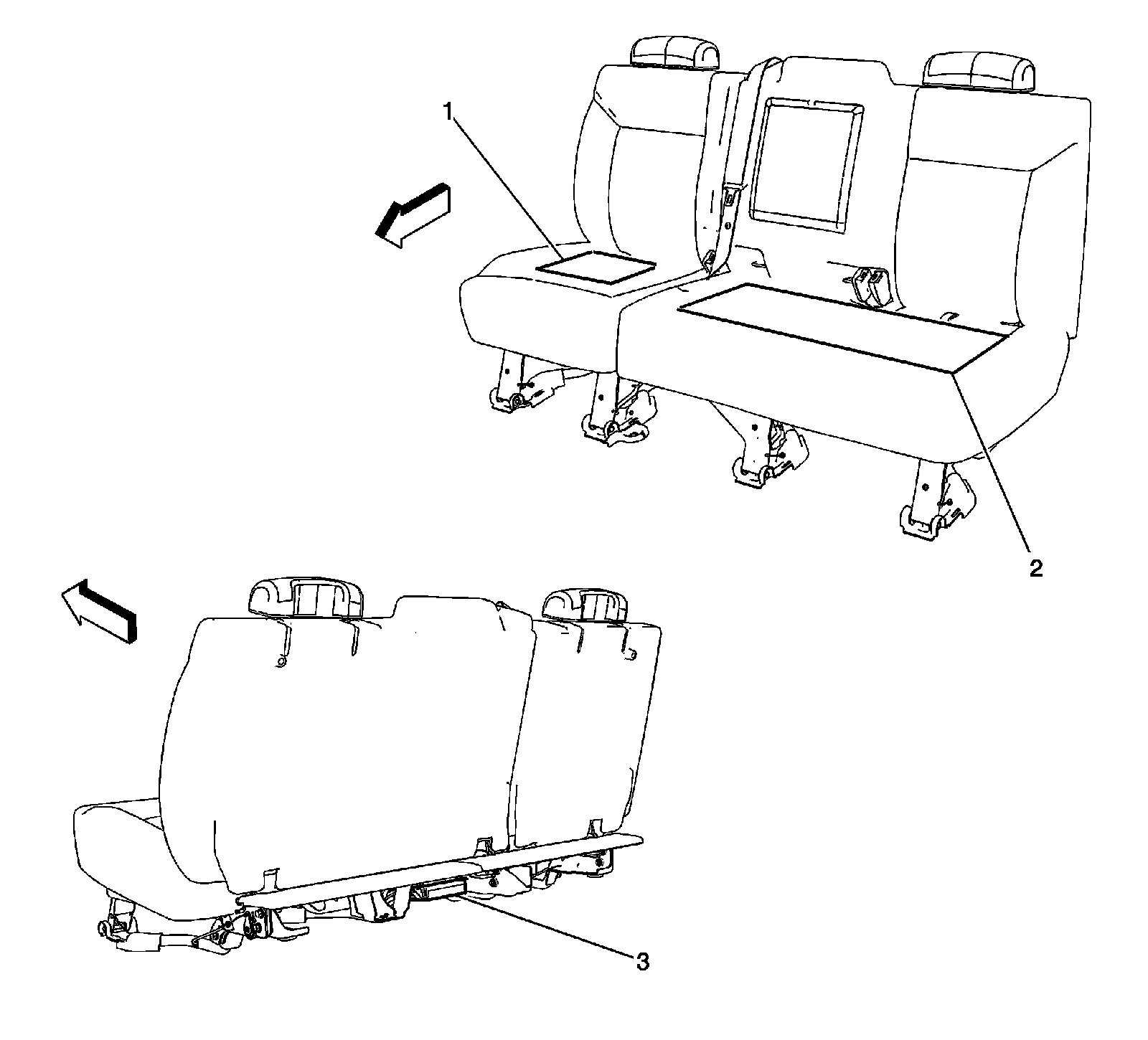

Rear Seat Components




1 - Heated Seat Element - Right Rear Cushion
2 - Heated Seat Element - Left Rear Cushion
3 - Heated Seat Control Module - Rear
