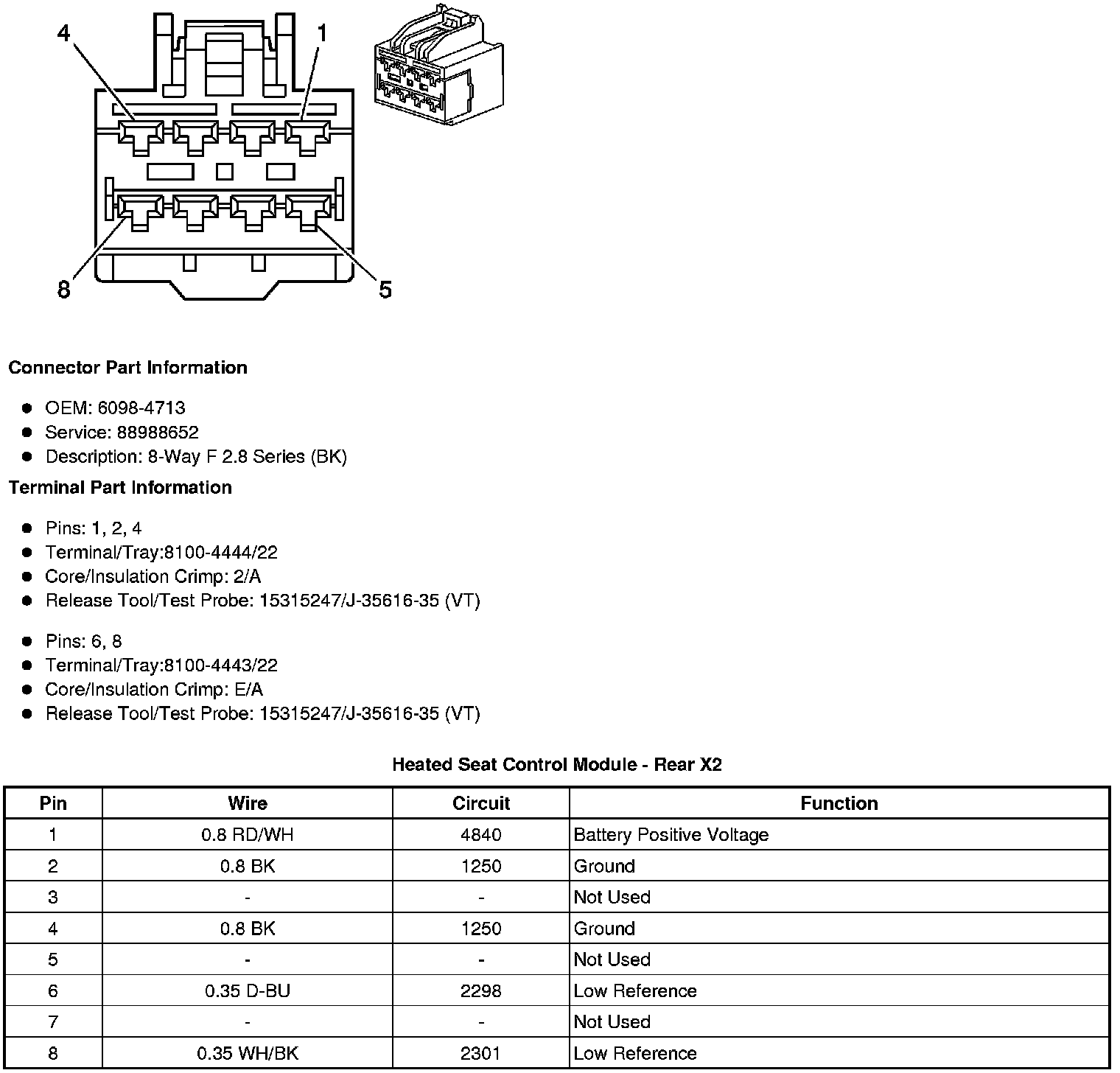

Heated Seat Control Module - Rear X2
Component Connector End Views
Heated Seat Control Module - Rear X2
