Power Distribution Schematics

Fig 1: Battery Supply

Courtesy of GENERAL MOTORS CORP.

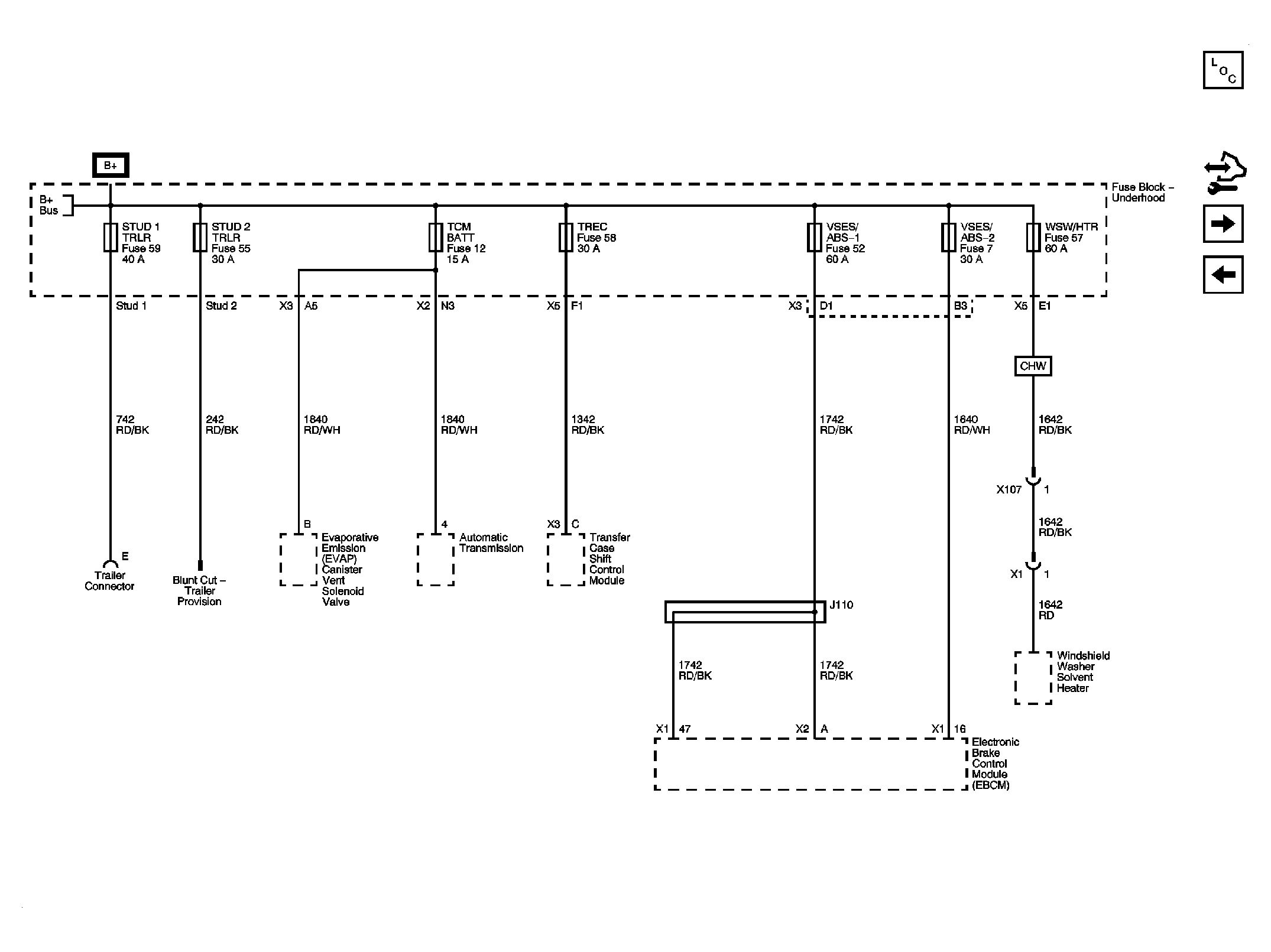

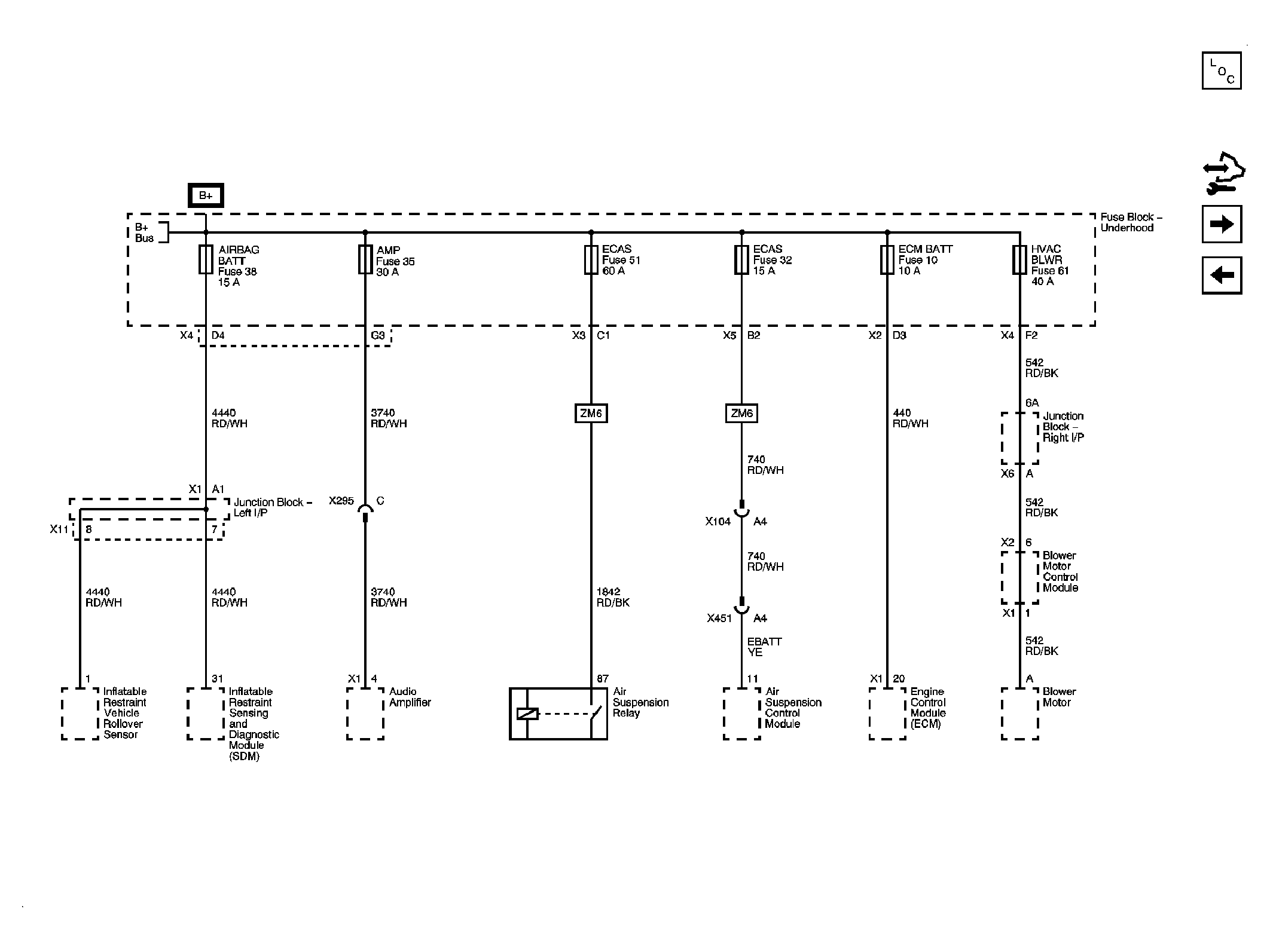

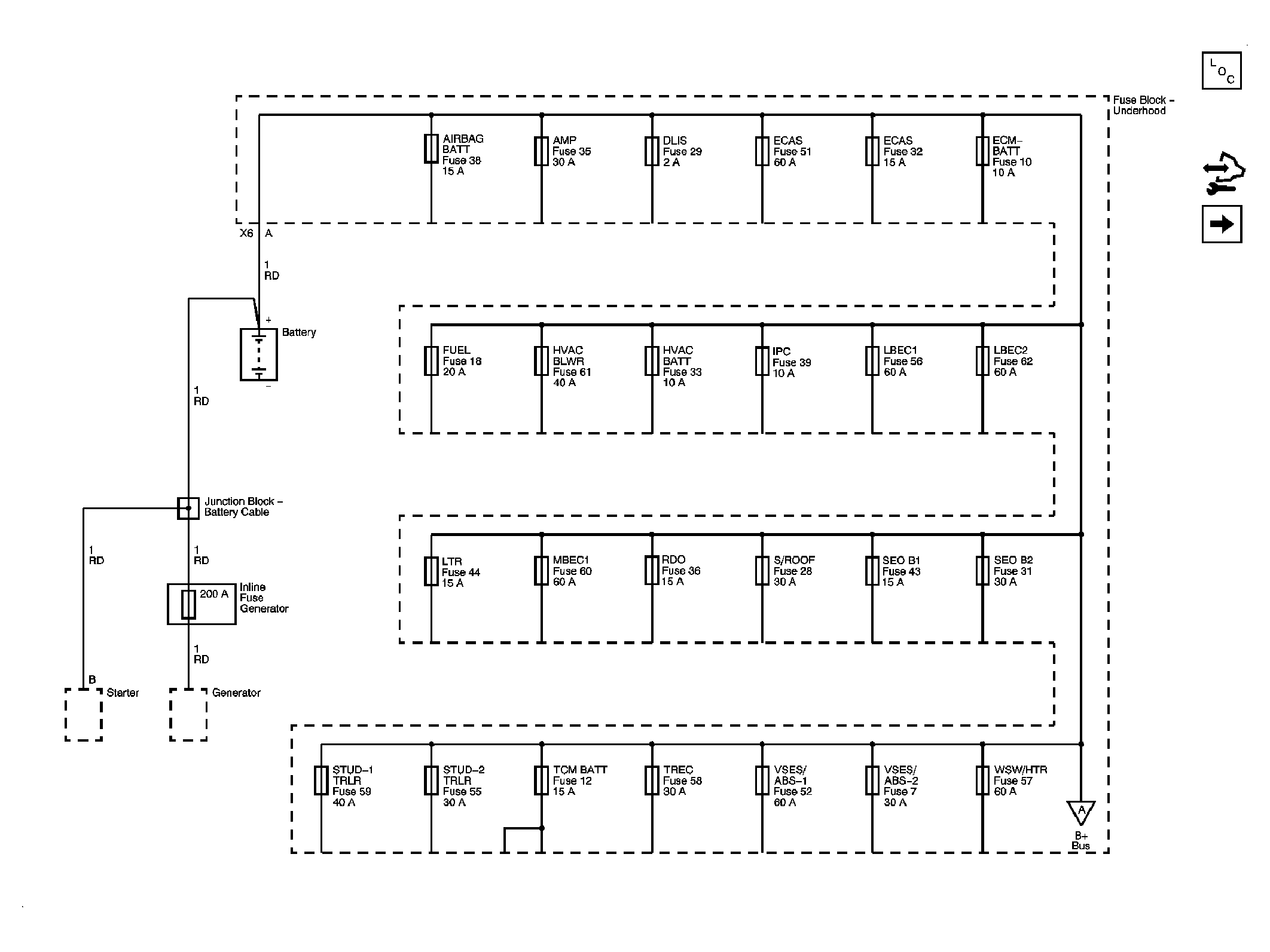

Fig 2: B+ Bus (1 of 5)

Courtesy of GENERAL MOTORS CORP.

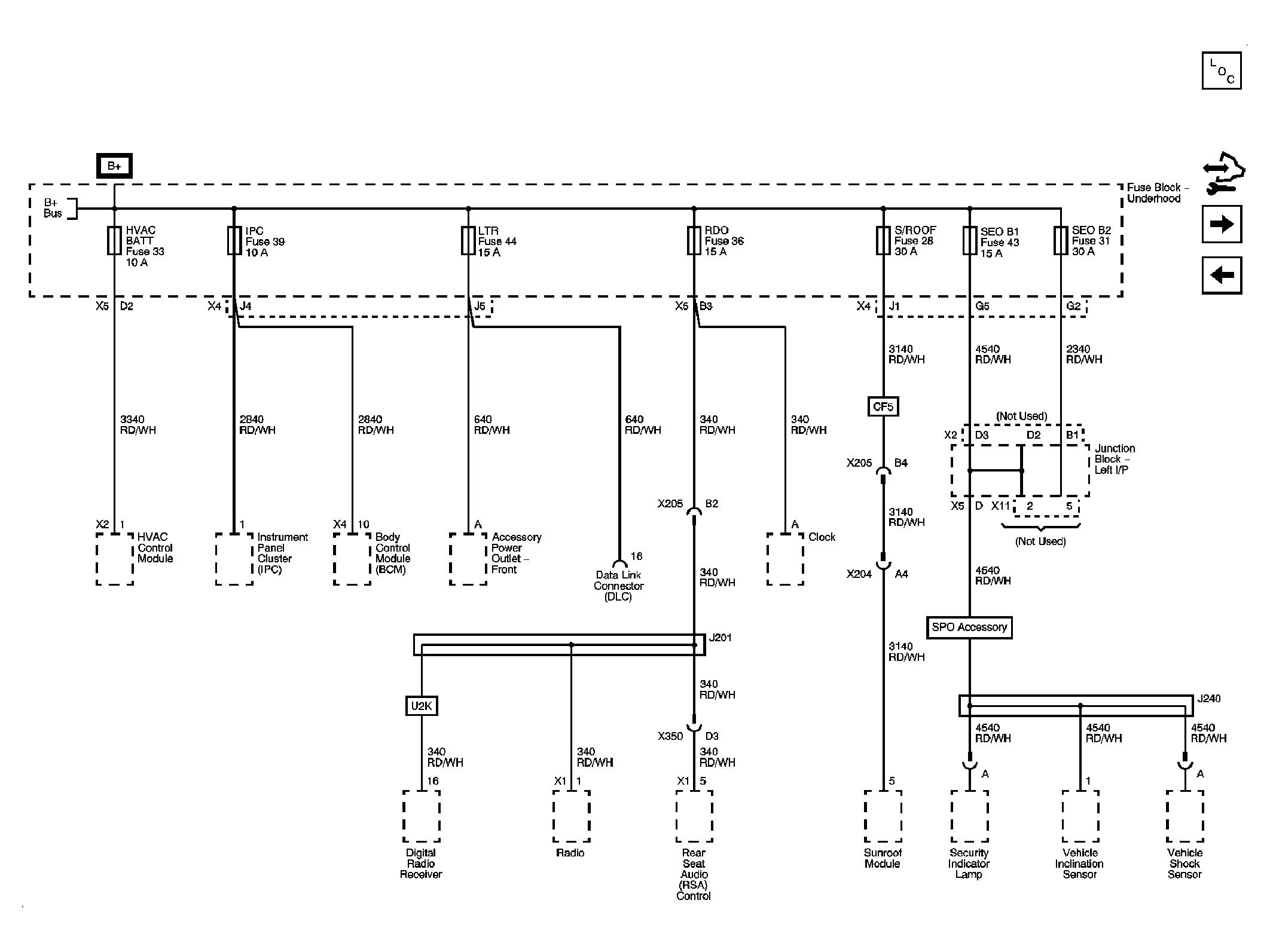

Fig 3: B+ Bus (2 of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 4: B+ Bus (3 of 5)

Courtesy of GENERAL MOTORS CORP.

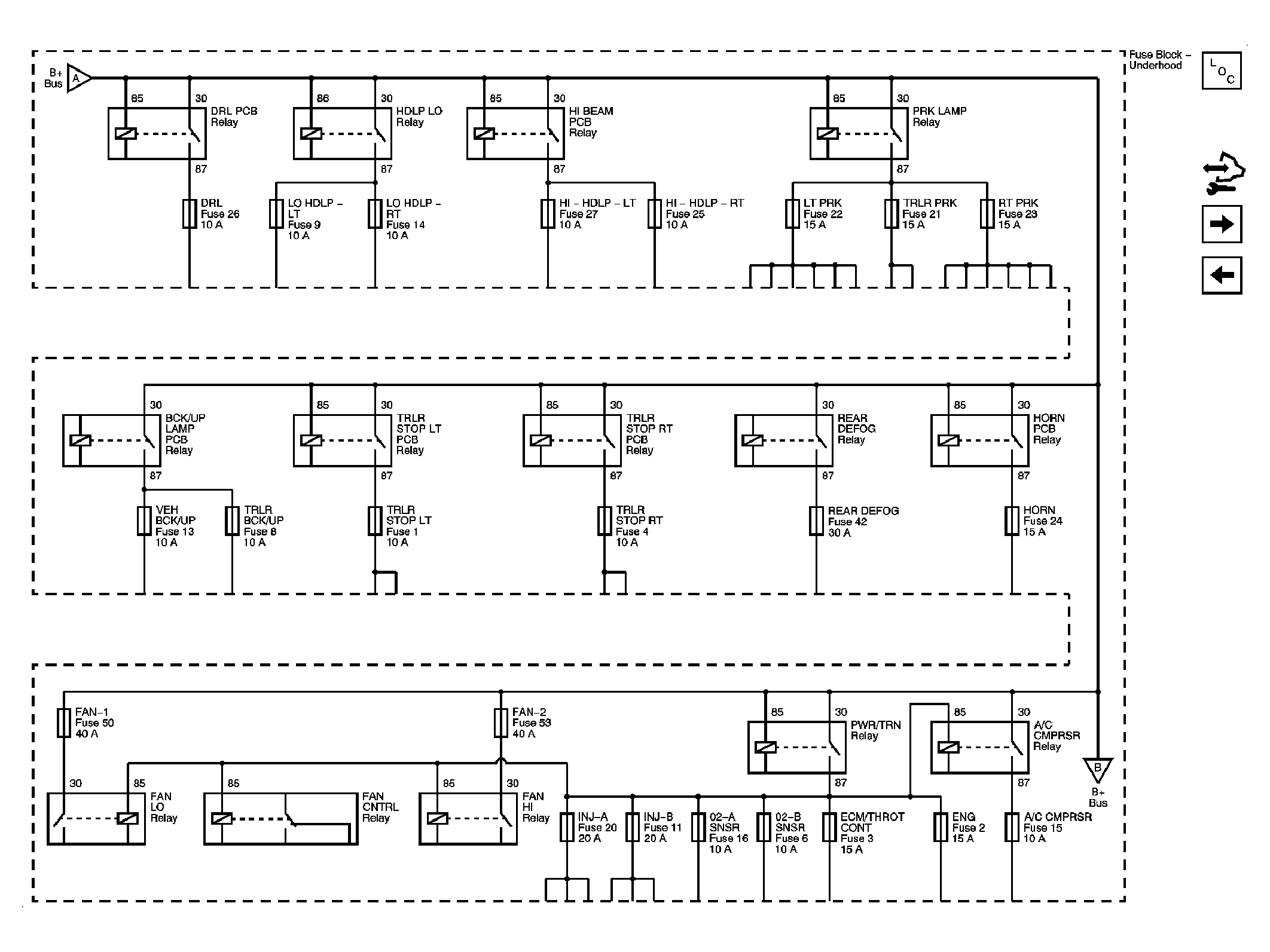

Fig 5: B+ Bus (4 of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 6: B+ Bus (5 of 5)

Courtesy of GENERAL MOTORS CORP.

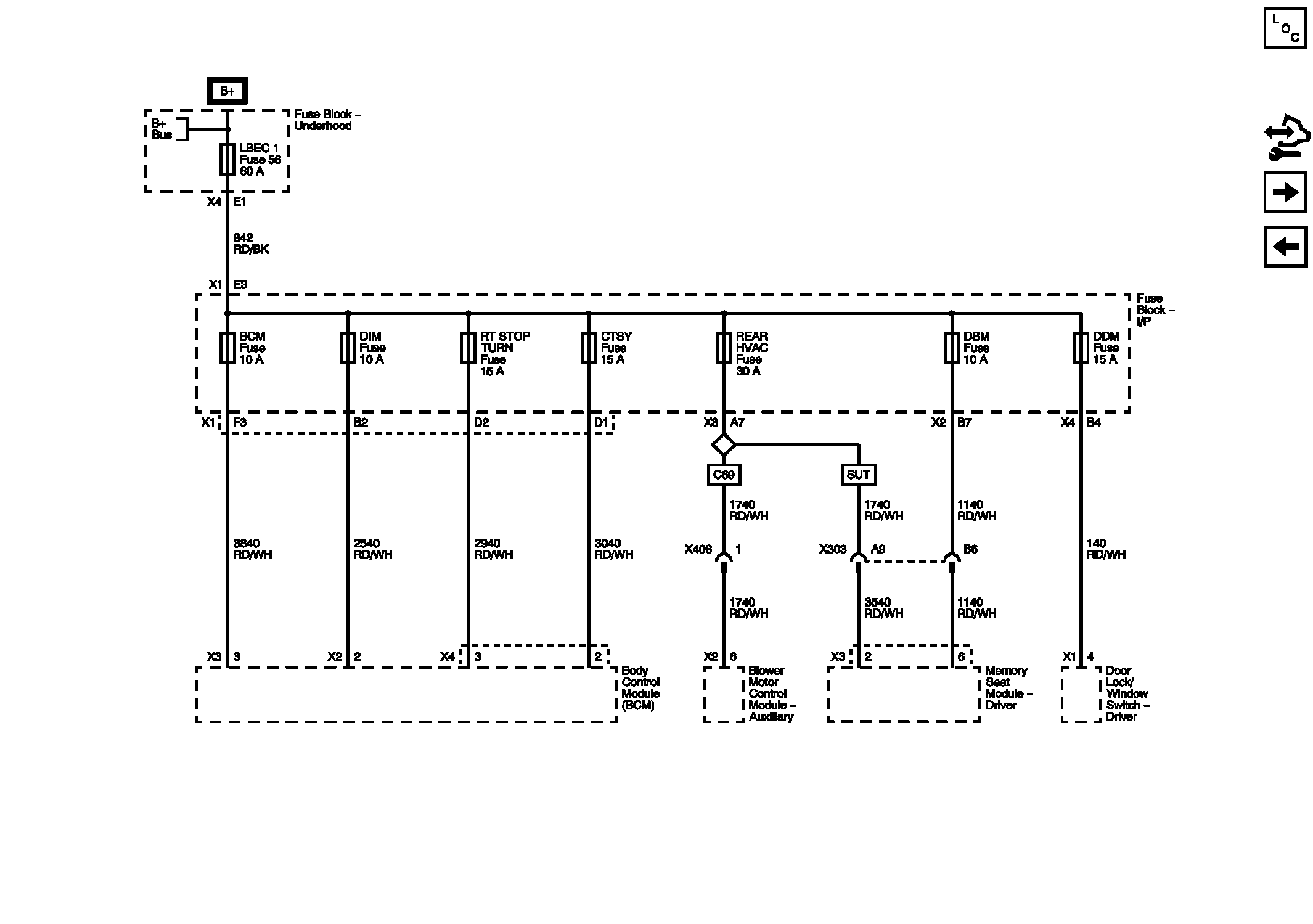

Fig 7: LBEC, BCM, DIM, RT STOP TURN, CTSY, REAR HVAC, DSM, DDM Fuses

Courtesy of GENERAL MOTORS CORP.

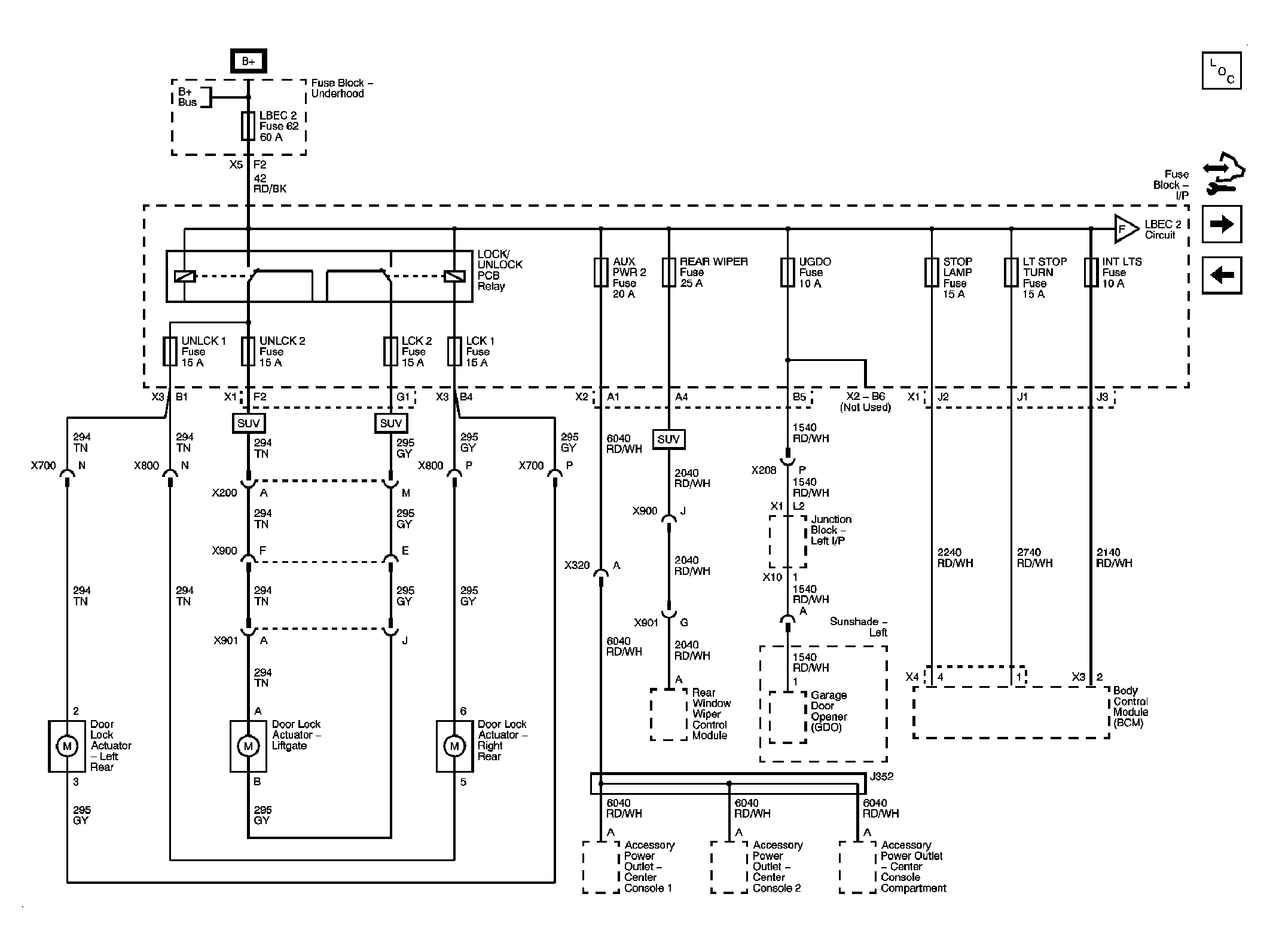

Fig 8: LBEC 2, AUX PWR 2, REAR WIPER, UGDO, STOP LAMP, LT STOP TURN, INT LTS Fuses & LOCK/UNLOCK PCB Relay

Courtesy of GENERAL MOTORS CORP.

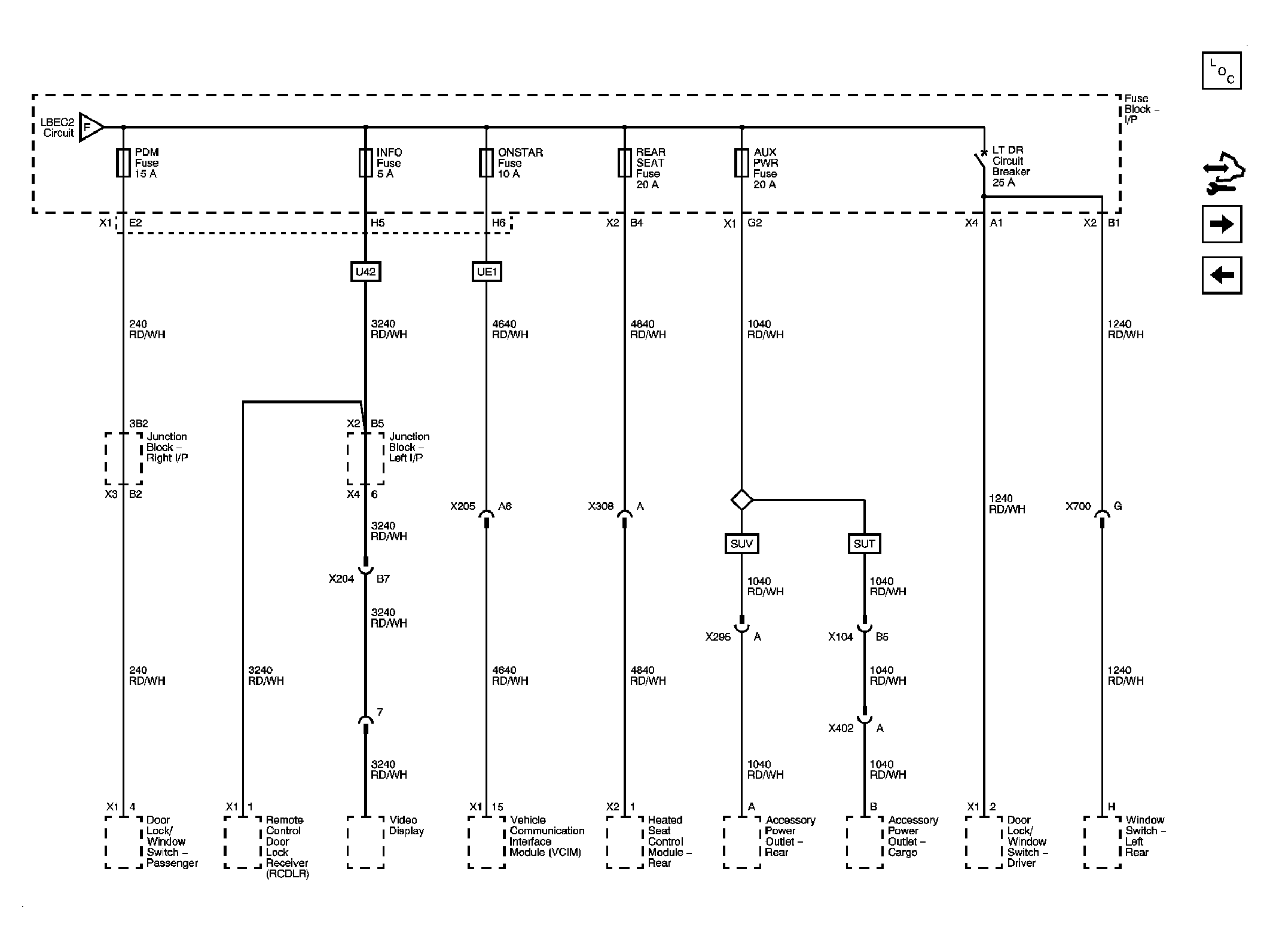

Fig 9: PDM, INFO, ONSTAR, REAR SEAT, AUX PWR Fuses & LT DR Circuit Breaker

Courtesy of GENERAL MOTORS CORP.

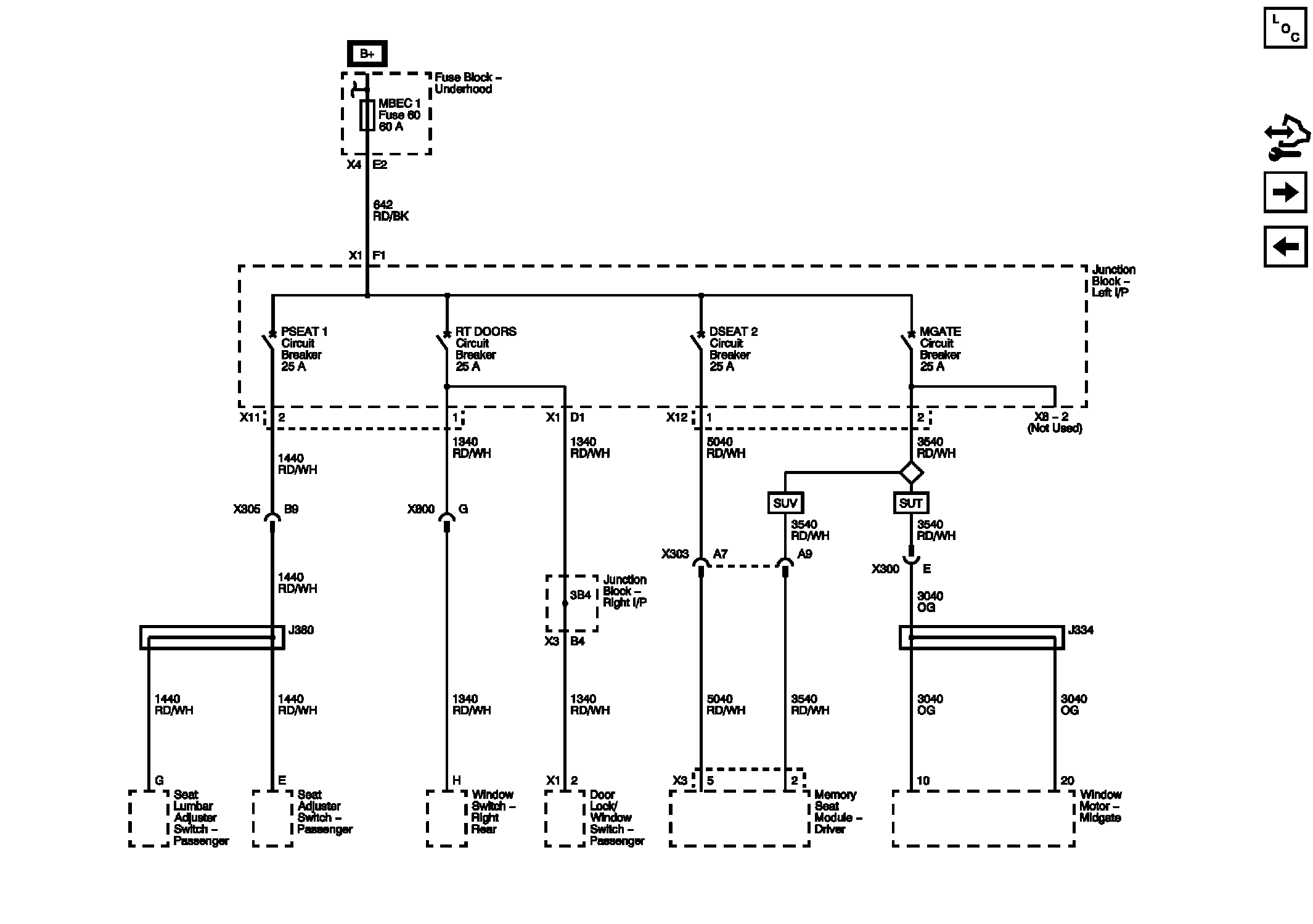

Fig 10: MBEC 1 Fuse & P SEAT 1, RT DOORS, D SEAT 2 & MGATE Circuit Breakers

Courtesy of GENERAL MOTORS CORP.

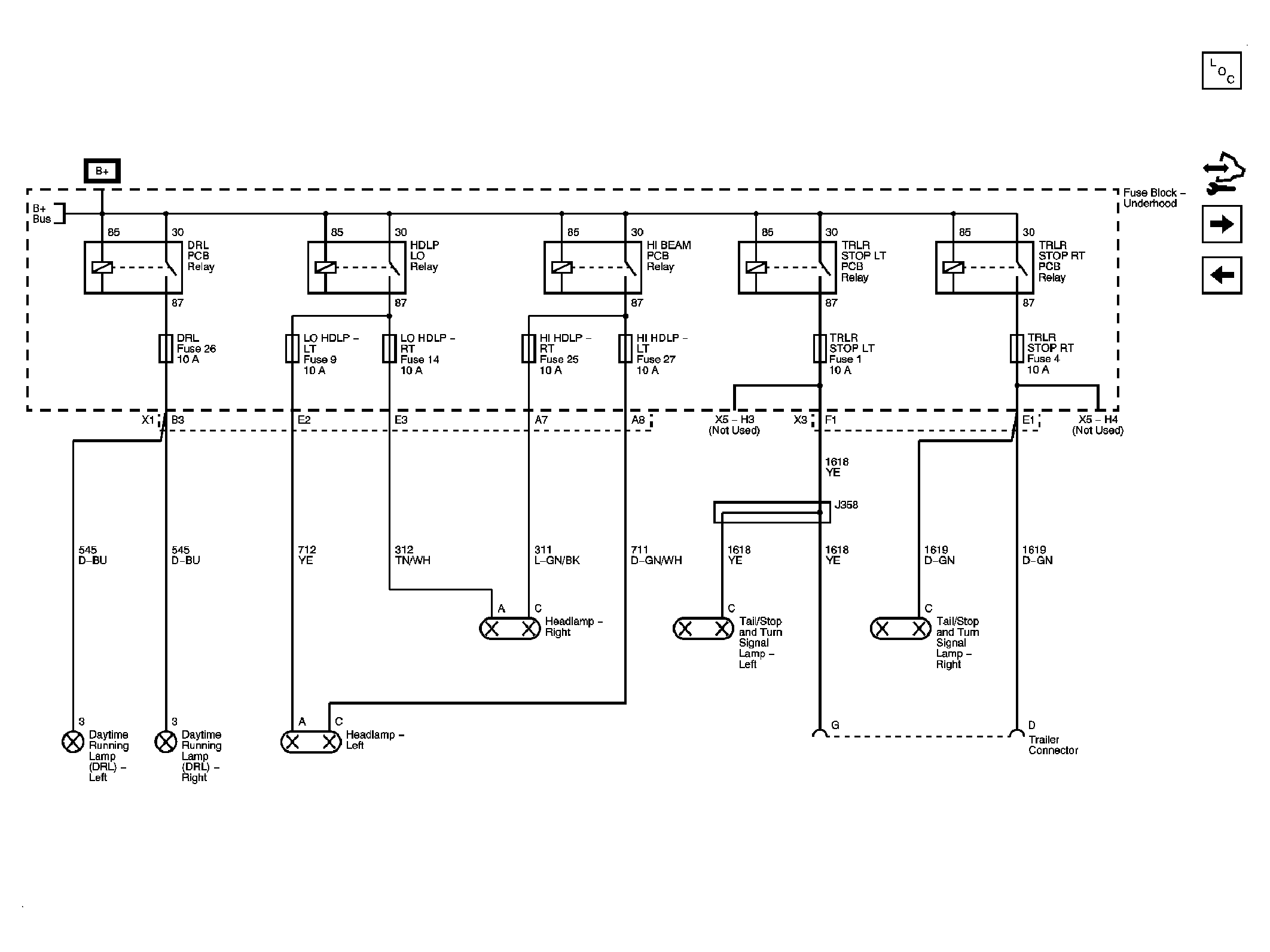

Fig 11: DRL, LO HDLP-LT, LO HDLP-RT, HI HDLP-RT, HI HDLP-LT, TRLR STOP LT & TRLR STOP RT Fuses

Courtesy of GENERAL MOTORS CORP.

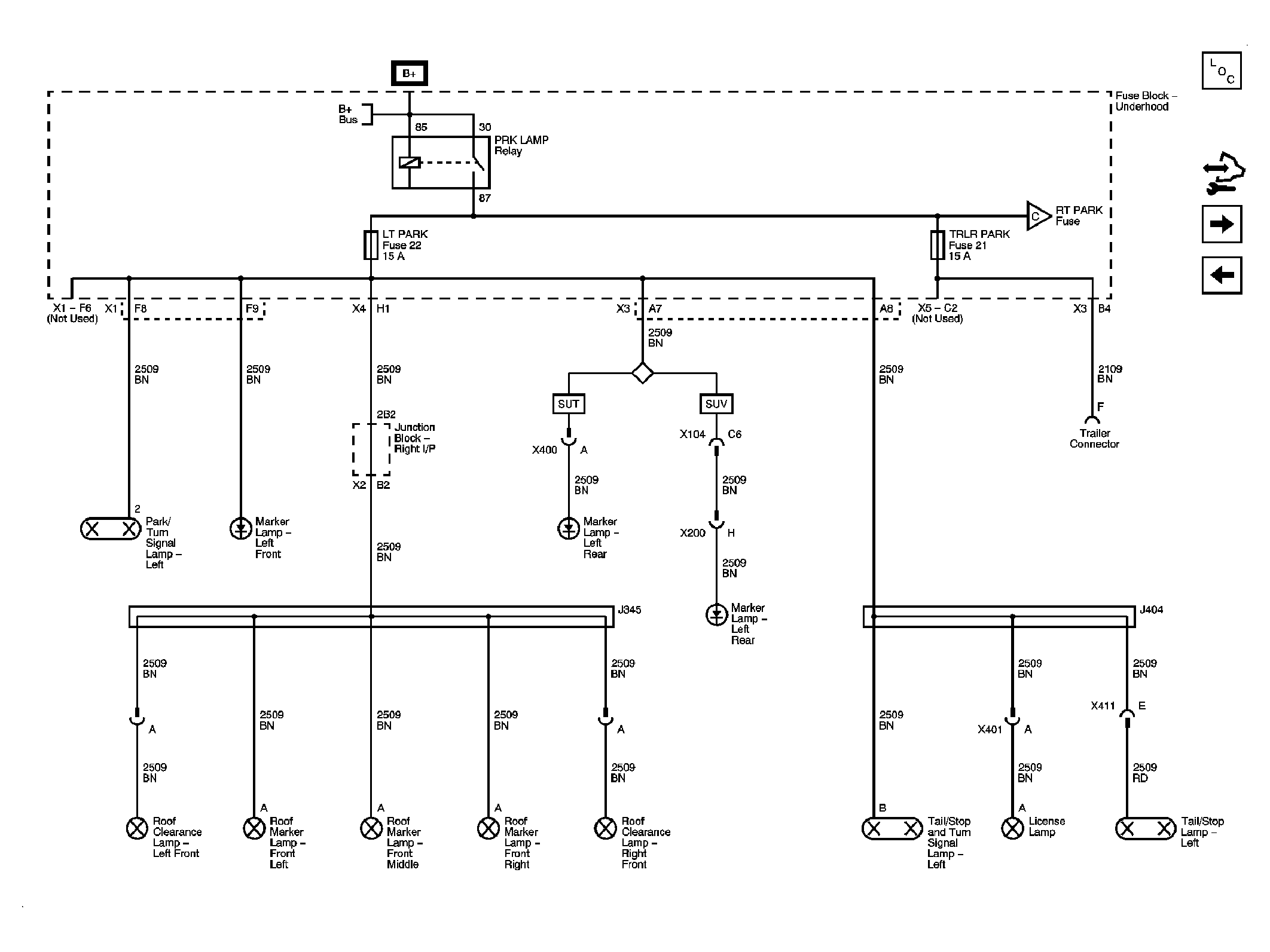

Fig 12: PRK LAMP Relay, LT PARK & TRLR PARK Fuses

Courtesy of GENERAL MOTORS CORP.

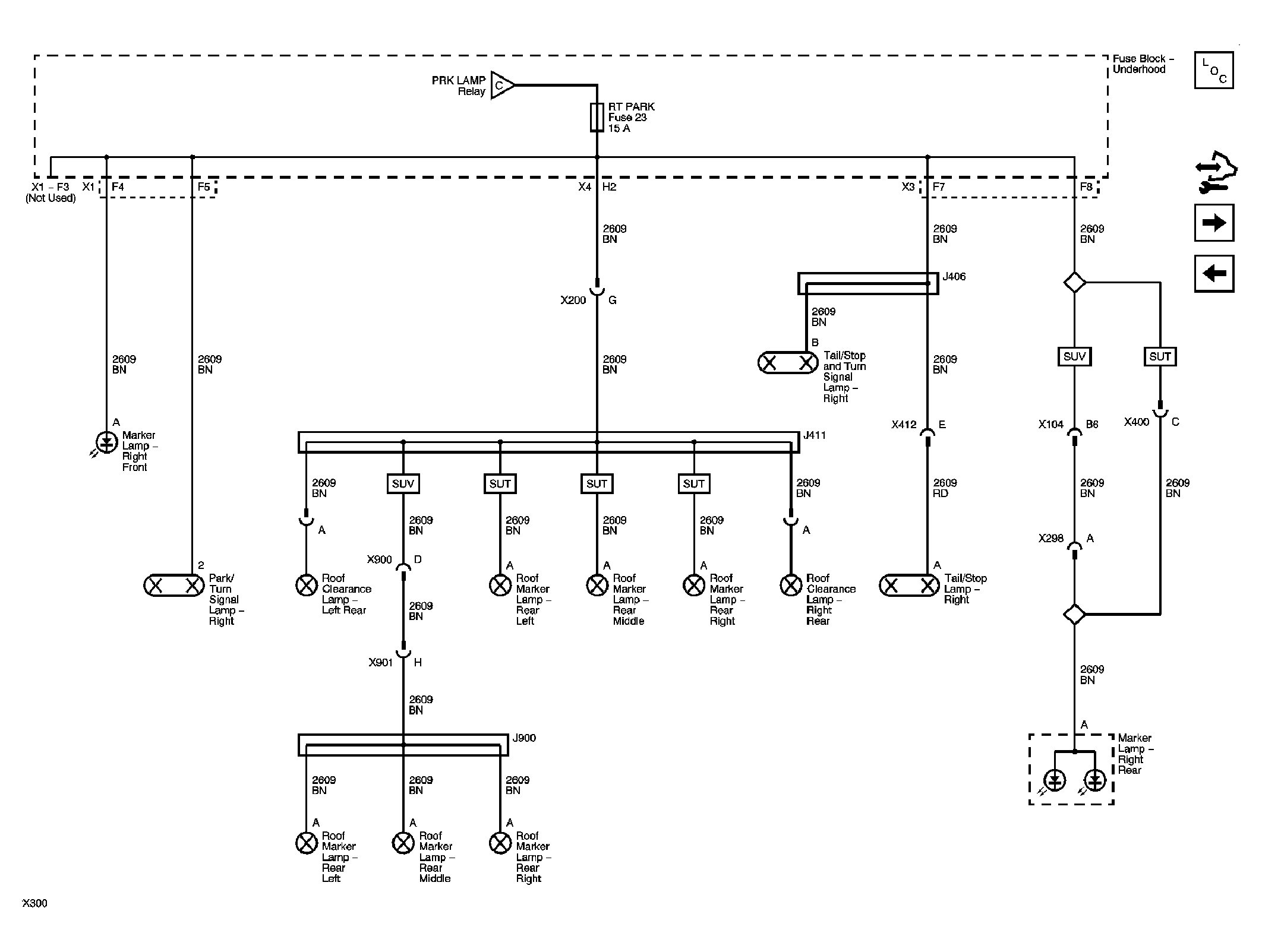

Fig 13: RT PARK Fuse

Courtesy of GENERAL MOTORS CORP.

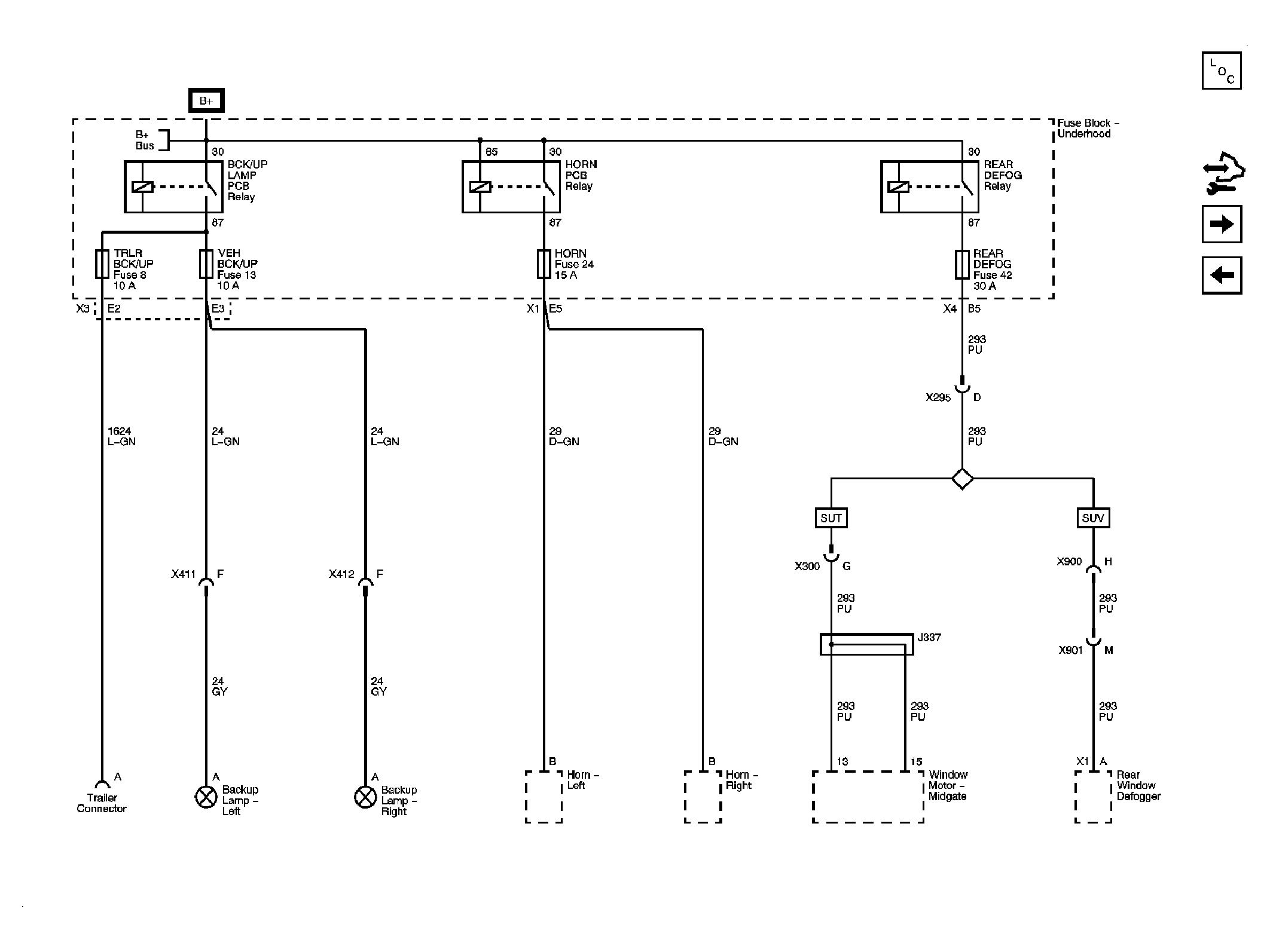

Fig 14: VEH BCK/UP, HORN & REAR DEFOG Fuses

Courtesy of GENERAL MOTORS CORP.

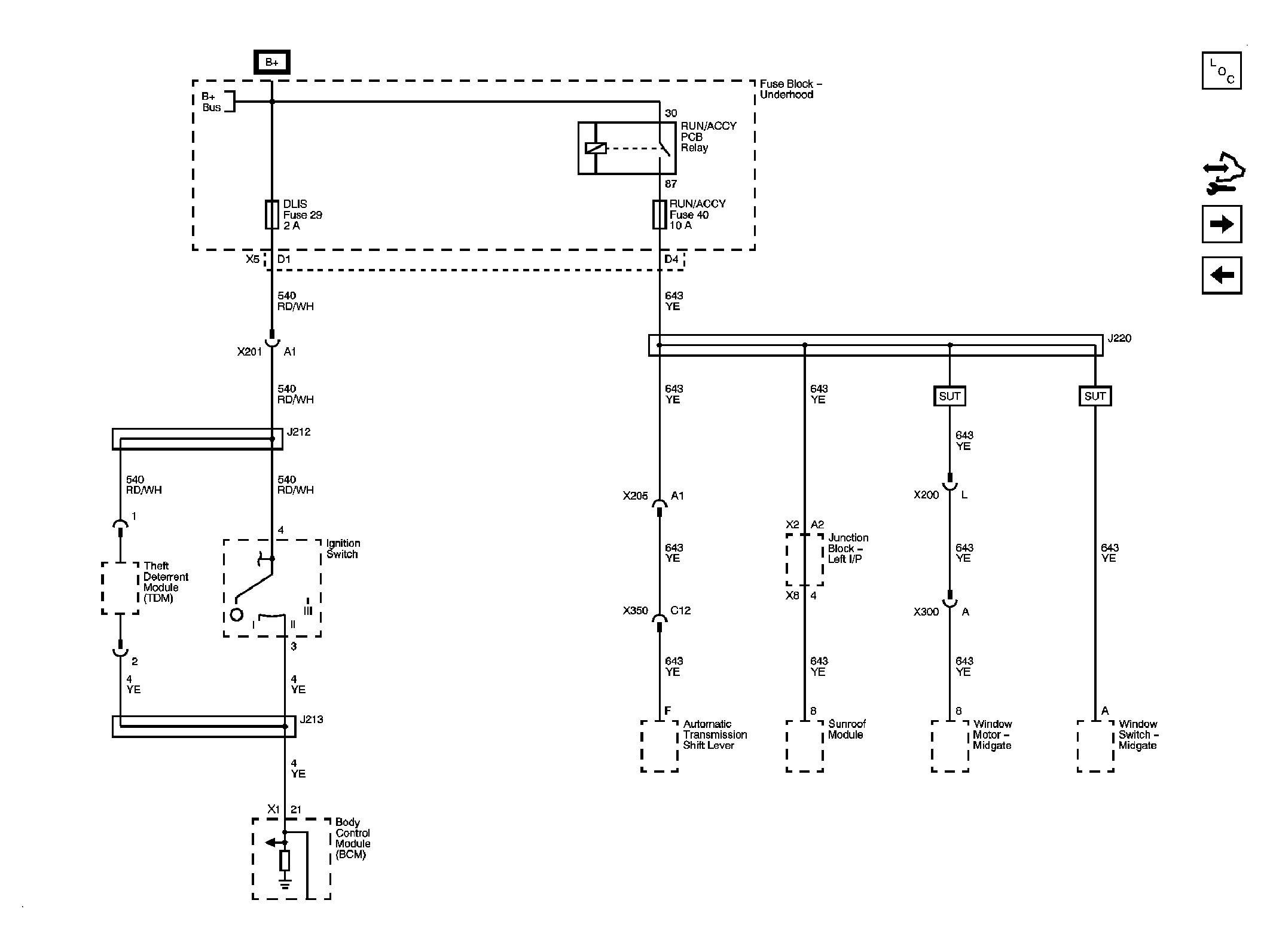

Fig 15: DLIS Fuse & RUN/ACCY Relay

Courtesy of GENERAL MOTORS CORP.

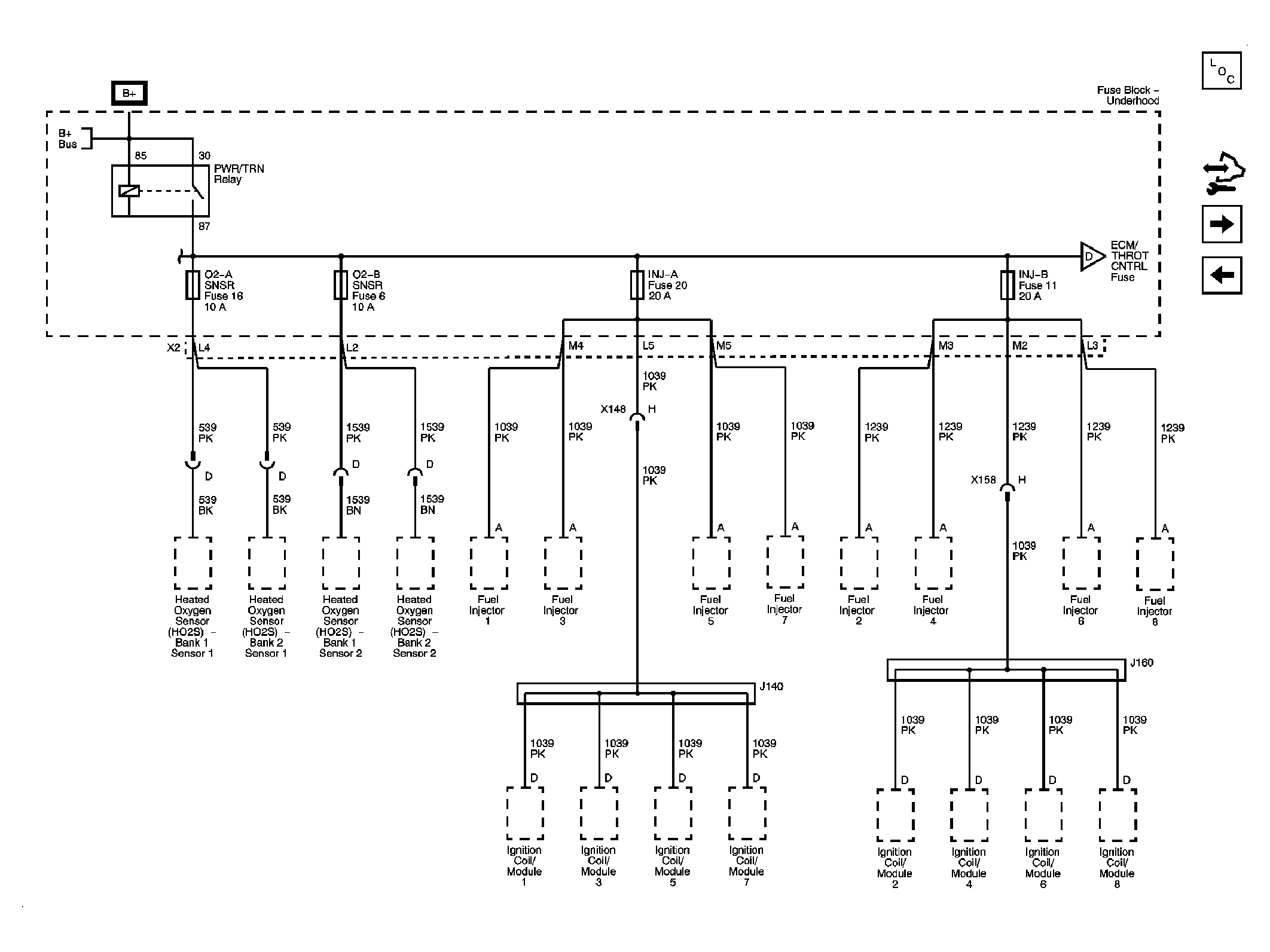

Fig 16: O2-A, O2-B, INJ-A, INJ-B Fuses & PWR/TRN Relay

Courtesy of GENERAL MOTORS CORP.

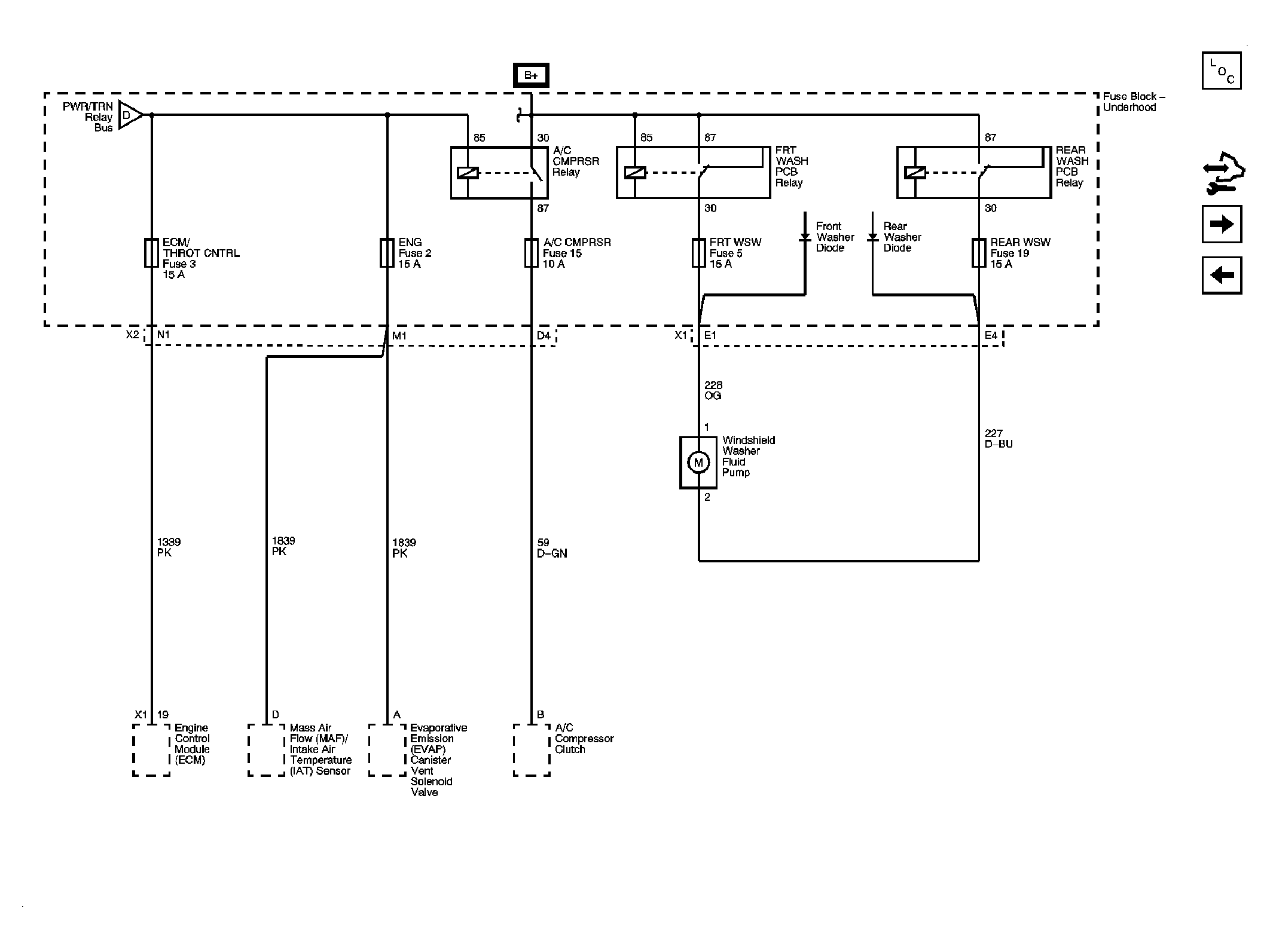

Fig 17: ECM/THROT CNTRL, ENG A/C CMPRSR, FRT WSW & REAR WSW Fuses

Courtesy of GENERAL MOTORS CORP.

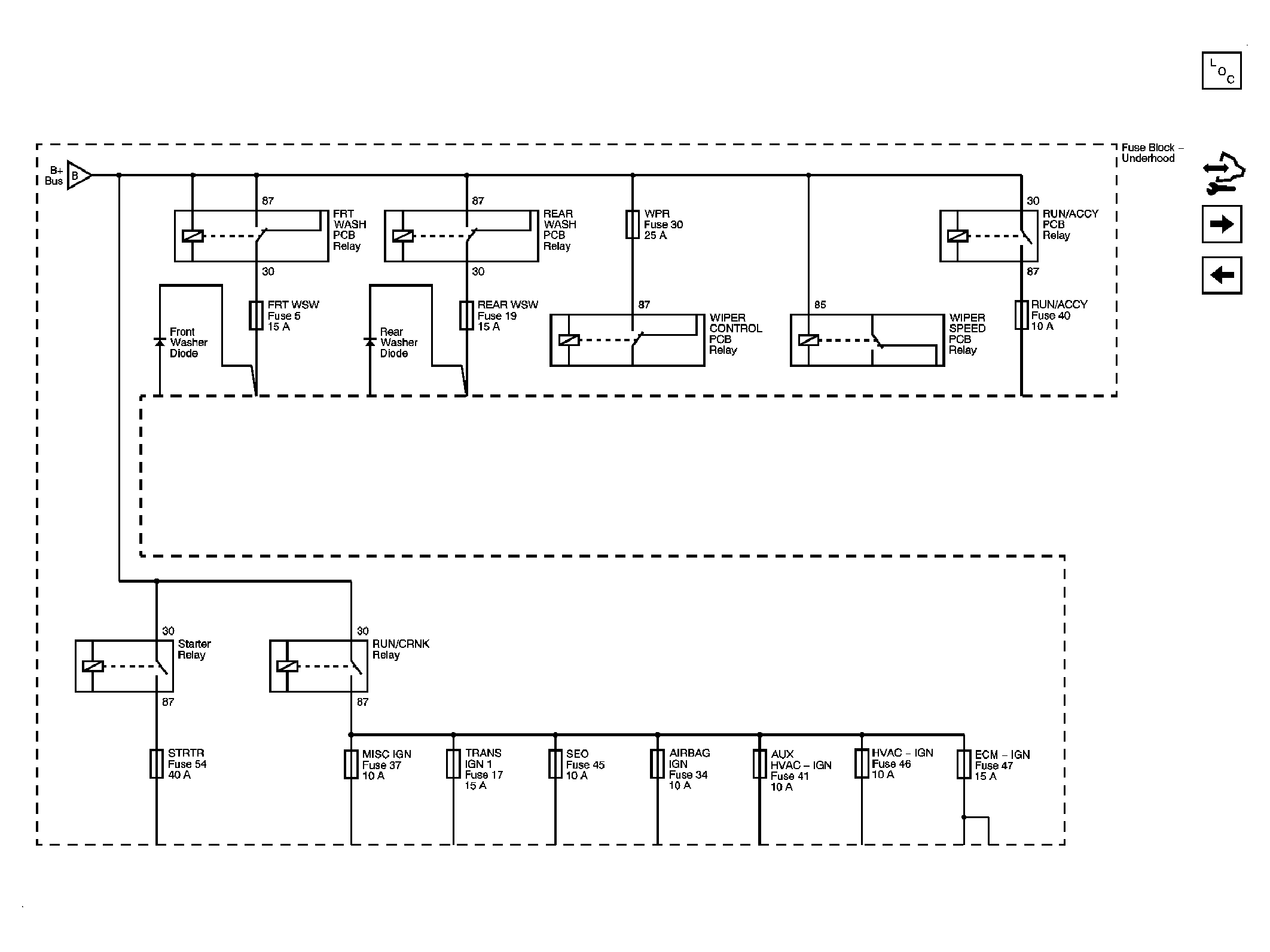

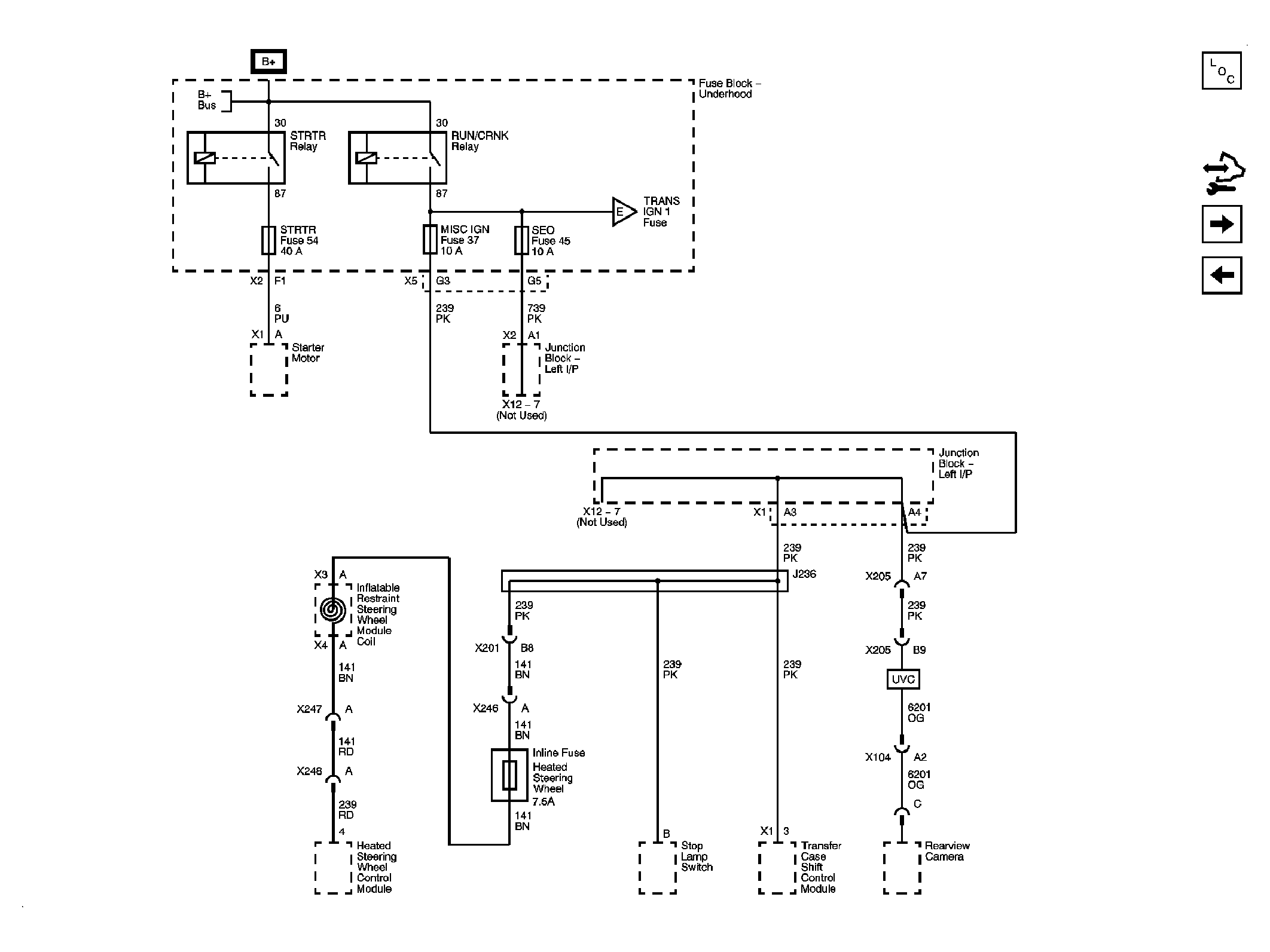

Fig 18: FRT WSW, REAR WSW, STRTR, MISC IGN and SEO Fuses

Courtesy of GENERAL MOTORS CORP.

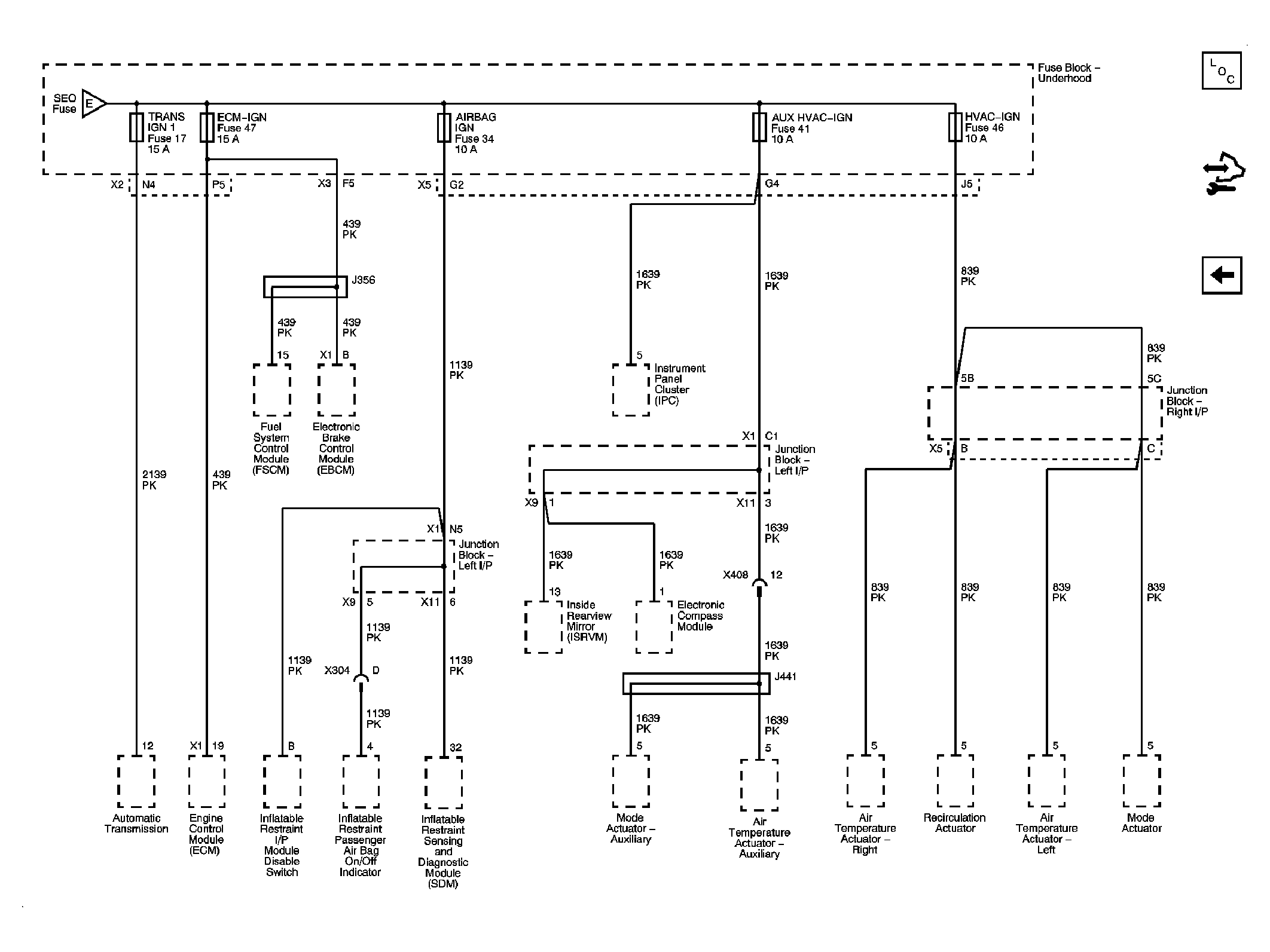

Fig 19: TRANS IGN 1, ECM-IGN, AIRBAG IGN, AUX HVAC-IGN & HVAC-IGN Fuses

Courtesy of GENERAL MOTORS CORP.
