Engine Controls Schematic 8



Engine Controls Schematics

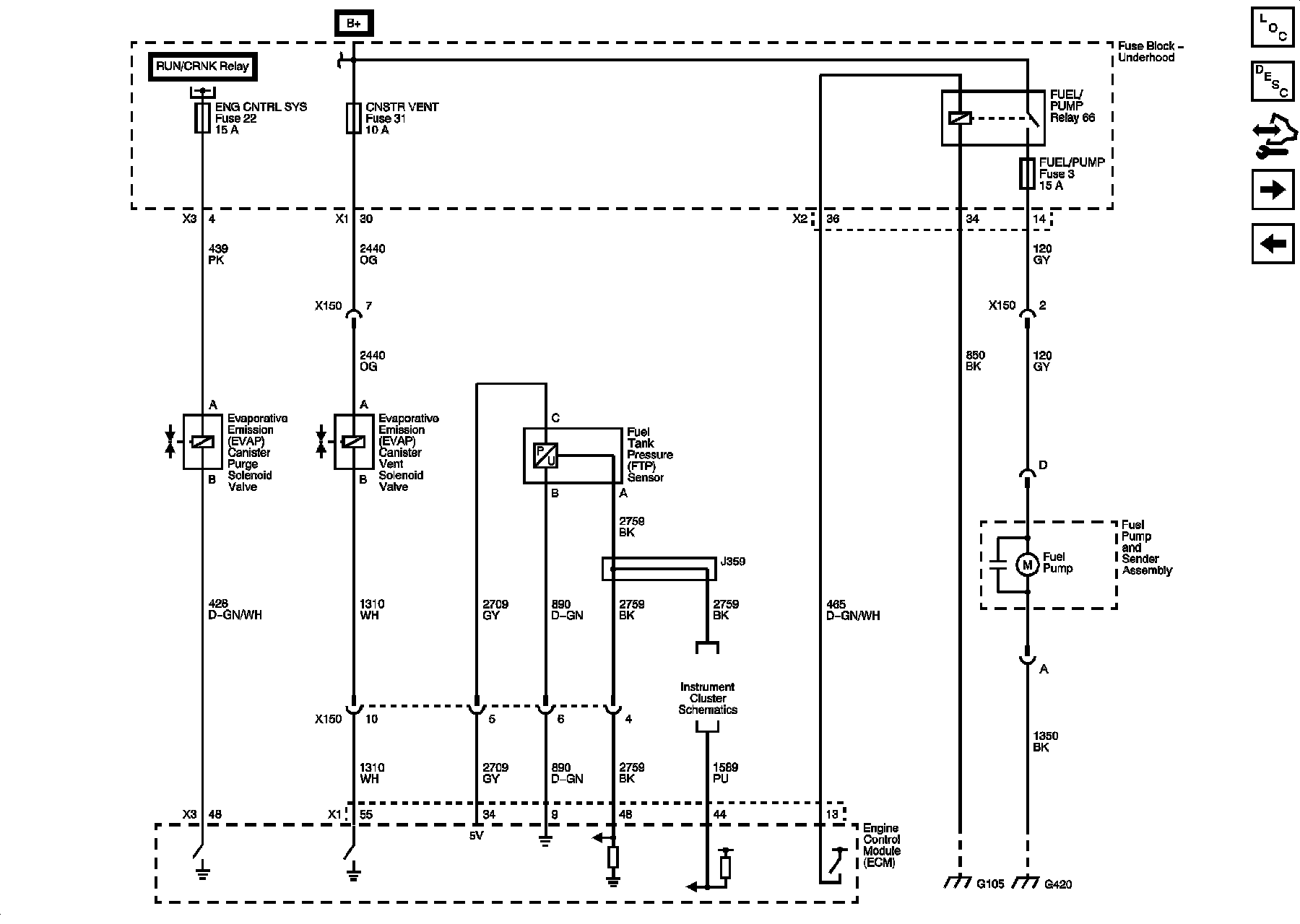

Fuel Controls - EVAP and Fuel Pump Controls
