Seat Belt Schematics

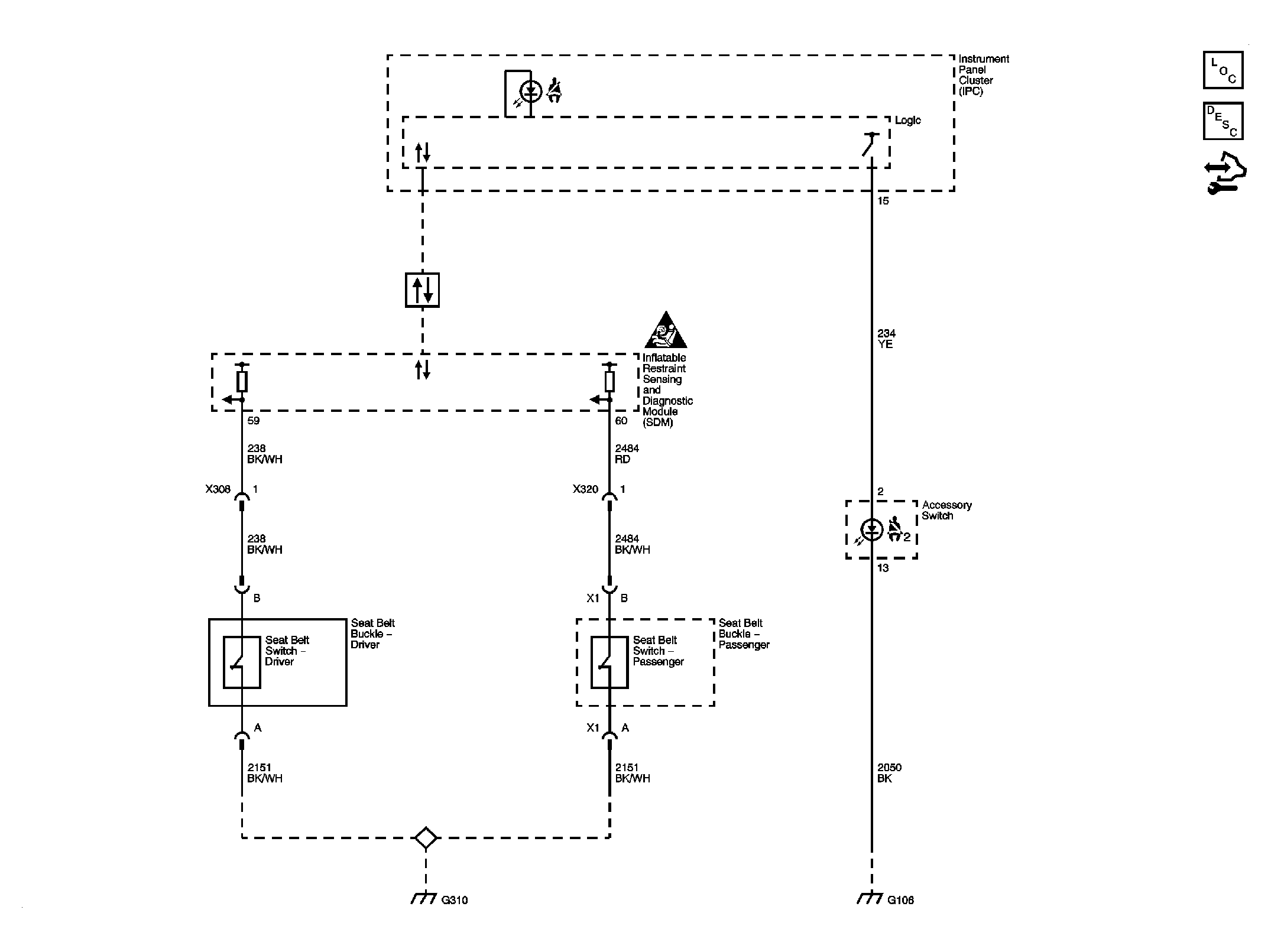

Fig 1: Seat Belt Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
