Interior Lights Schematics

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

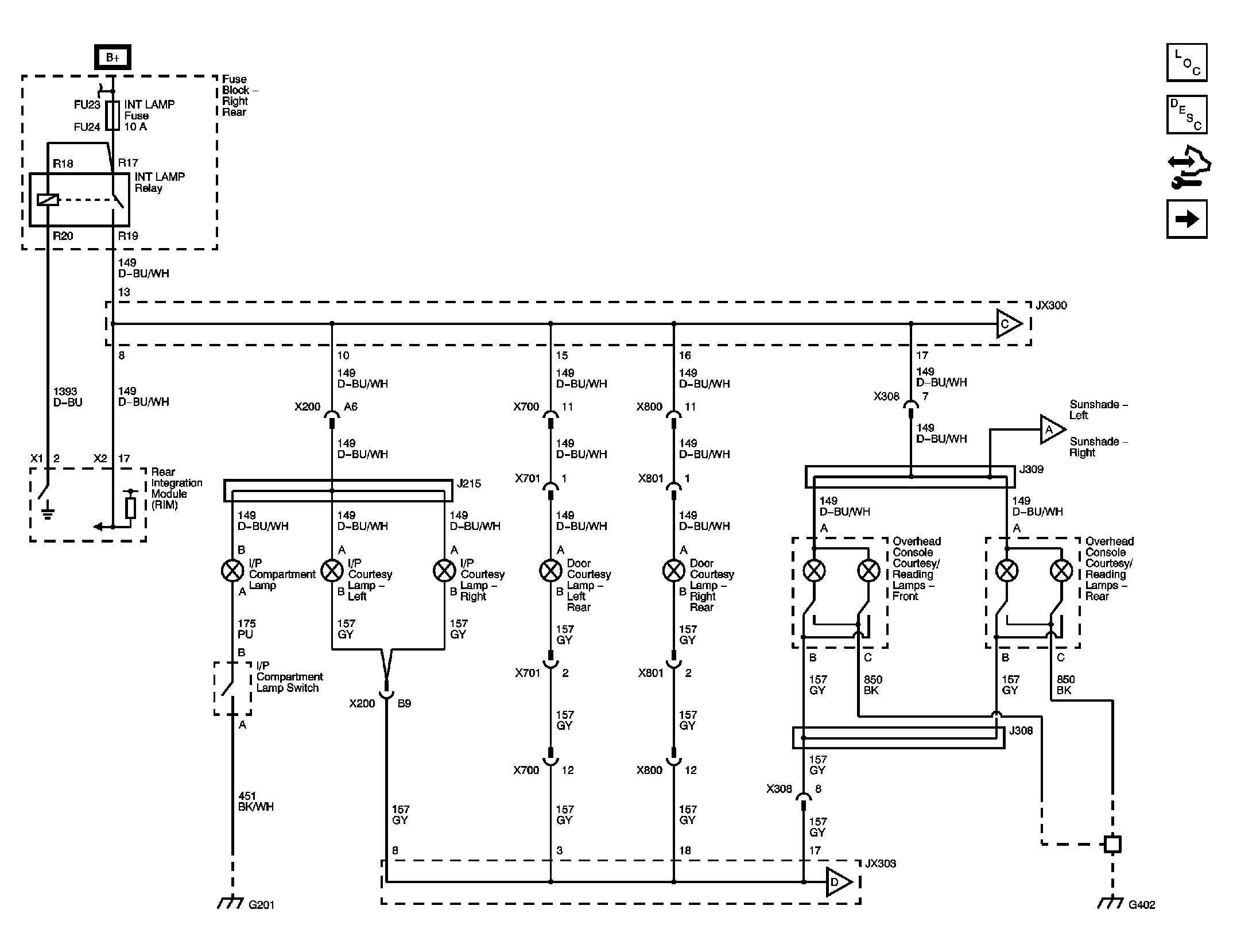

Fig 1: Courtesy Lamps

Courtesy of GENERAL MOTORS CORP.

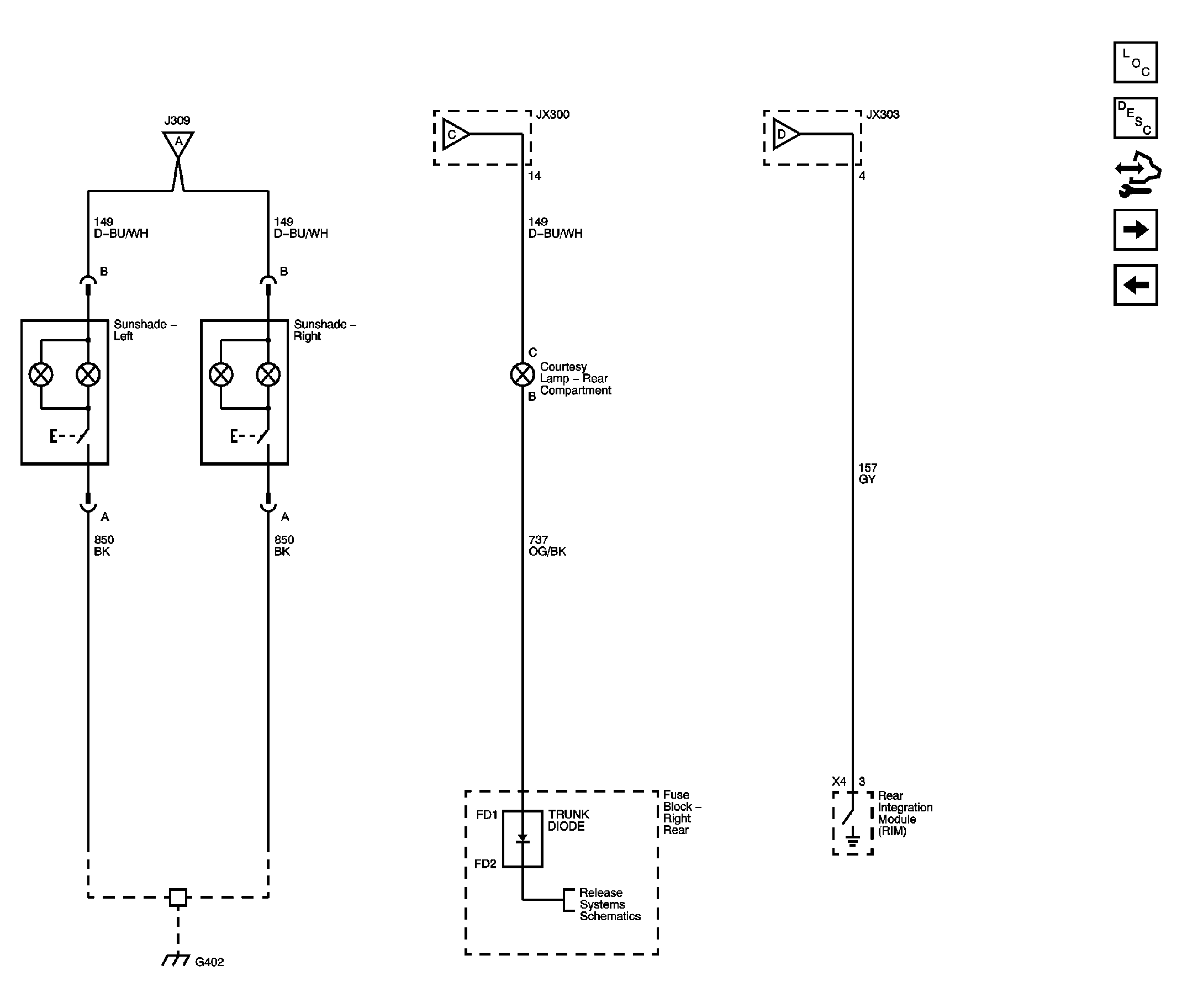

Fig 2: Sunshade and Rear Compartment Lamps

Courtesy of GENERAL MOTORS CORP.

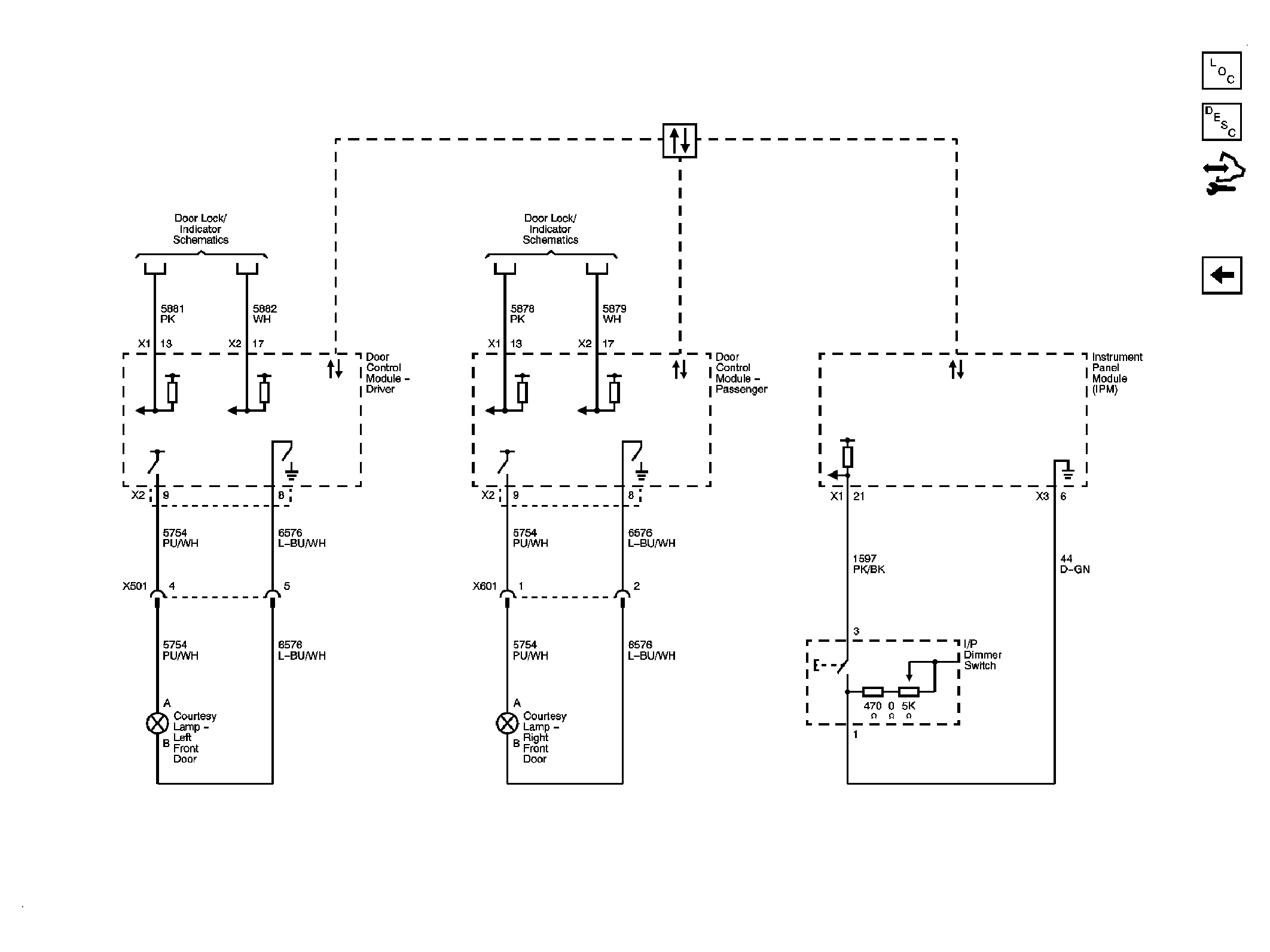

Fig 3: Door Courtesy Lamps and I/P Dimmer Switch

Courtesy of GENERAL MOTORS CORP.
