Battery Replacement (Top Post)

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

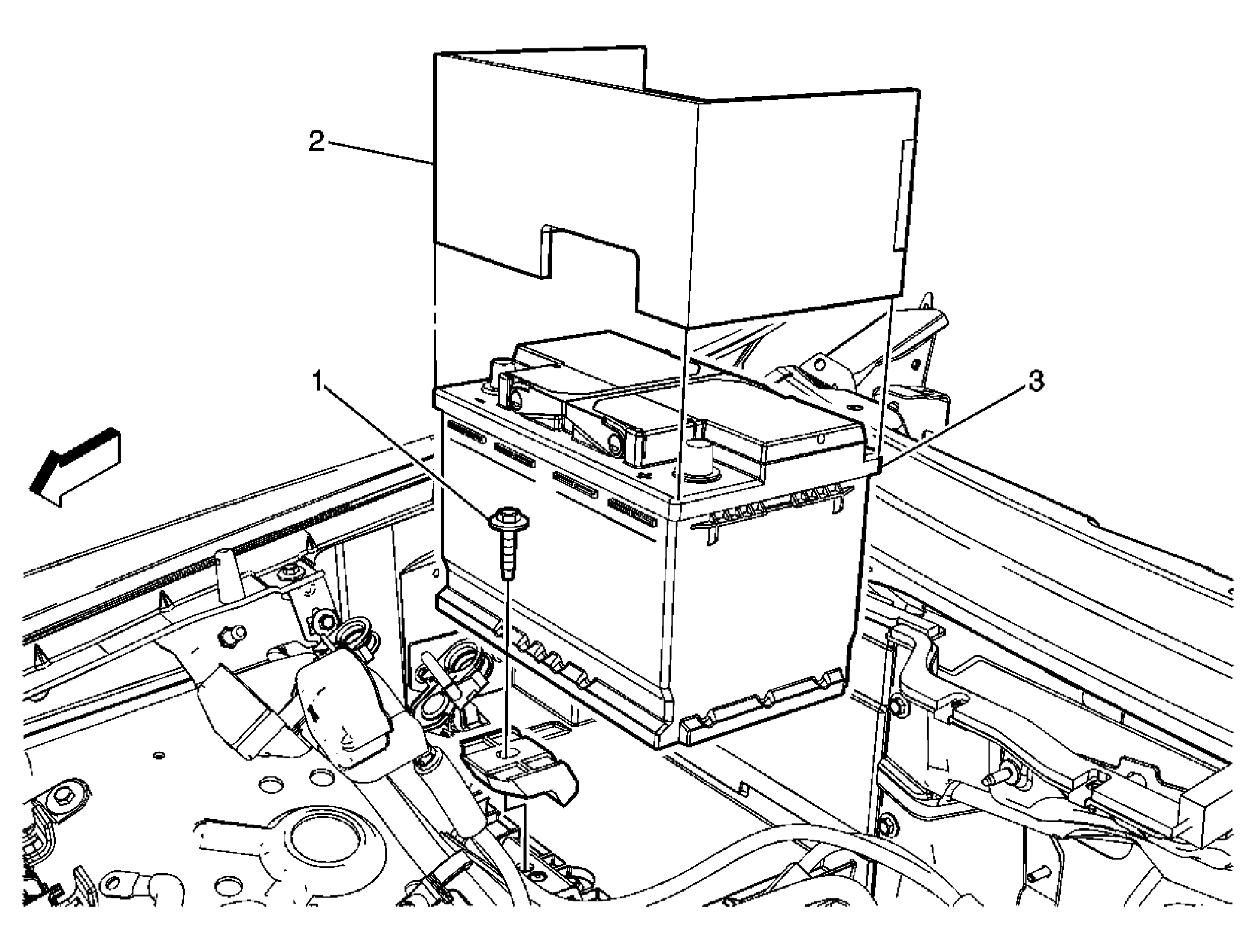

Fig 1: Battery Replacement (LHD Top Post)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Premliminary Procedure Disconnect the negitive battery cable. Refer to Battery Negative Cable Disconnection and Connection (LHD With Top Post) . Disconnect the positive battery cable. Refer to Battery Positive Cable Replacement (LH2 With Top Post) or Battery Positive Cable Replacement (LY7, LLT With Top Post) or Battery Positive Cable Replacement (LC3) .
1	Bolt CAUTION: Refer to Fastener Caution . Tighten: 17 N.m (13 lb ft)
2	Insulator
3	Battery
